NPort W2150/2250 Plus Series User’s Manual Installing and Configuring the Software
11-8

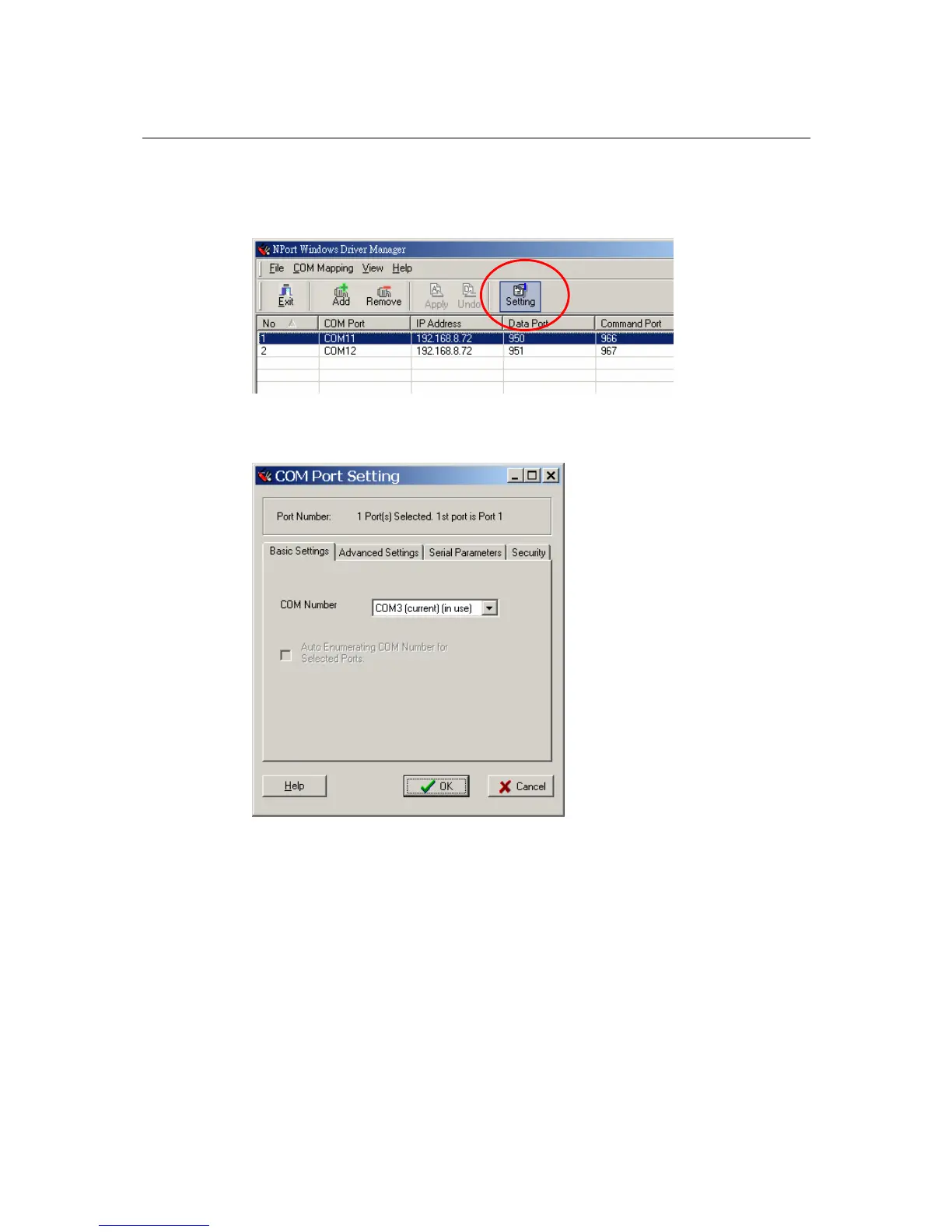

Configuring Mapped Serial Ports
1. To modify the settings of a mapped serial port, select the desired port(s) and click [Setting] on
the main toolbar.
2. On the Basic Setting tab, select the COM Number that will be assigned to the serial port. If
you have selected multiple ports, you can assign COM numbers automatically in sequential
order by selecting the “Auto Enumerating” function.
