13.2.6 Digital inputs DI 16-24V
DI 16-24V
Inputs 2 x 8, plug-based electrical isolation
Nominal voltage 24VDC
24 VAC (bei 50 Hz +-10%; 60 Hz +-10%)
Max. operating voltage 31.2VDC
28VAC
Logical0 ≤ 12V
Logical 1 ≥ 18V
Input current 2.4mA
Simultaneity factor (at 65°C
ambient temperature)
-

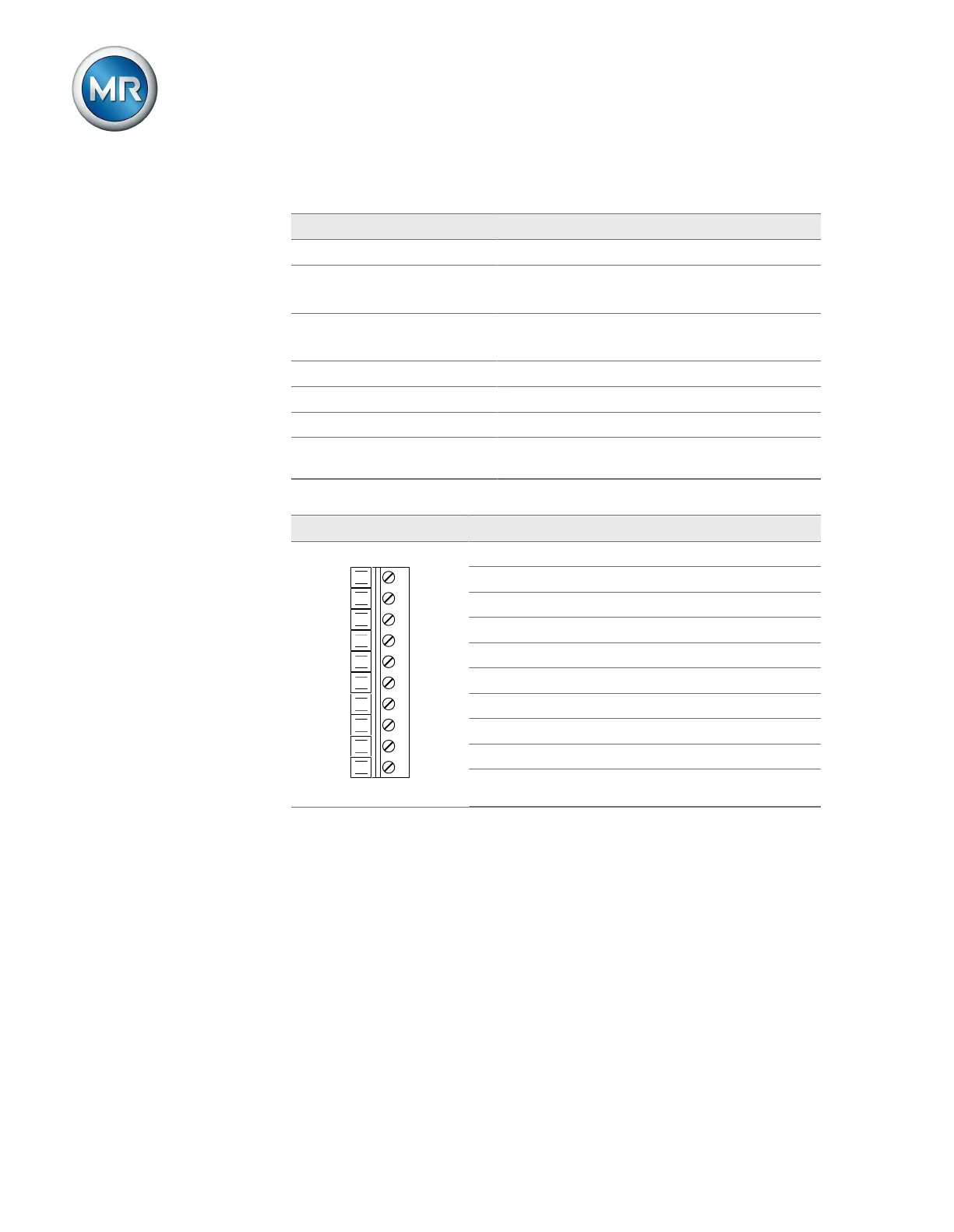

Table70: DI16-24V assembly technical data
Interface Pin Description
1
2
3
4
5
6
7
8
9
10
10 Common reference (common)
9 Common reference (common)
8 Input 7
7 Input 6
6 Input 5
5 Input 4
4 Input 3
3 Input 2
2 Input 1
1 Input 0
Table71: ConnectorX1 (group 0)
