4 Product description
Maschinenfabrik Reinhausen GmbH 2022 298595028/00 EN TAPCON
®
250

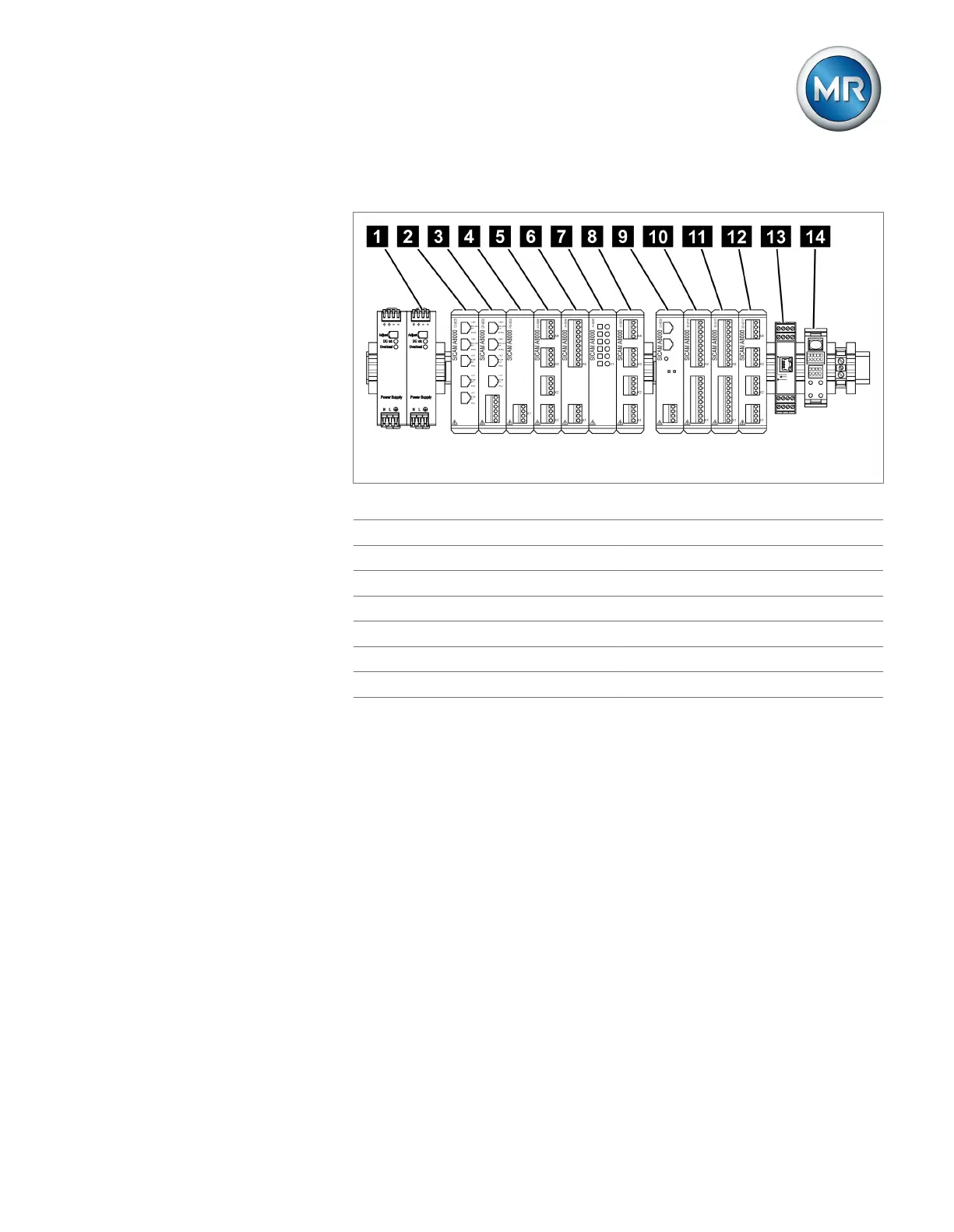

Figure8: Cap rail with assemblies (two-row installation)
1 Mains unit G1 2 Communication interfaces CI
3 CPU 4 Power supply PS
5 AO4 6 U3
7 I3 8 AI4
9 System networking BES 10 DI 16-24V
11 DI 16-110V 12 DO8
13 CAN module 14 RJ45 interface module
4.4.3.1 Assemblies
Depending on configuration, the device may have various assemblies which
perform the functions required. The functions of the assemblies are de-
scribed in the following sections. You will find more information about the as-
semblies in the Technical data [►Section 13, Page 180] section.
