4 Product description
Maschinenfabrik Reinhausen GmbH 202230 8595028/00 ENTAPCON
®
250
4.4.3.1.1 System networking COM-ETH
The COM-ETH assembly provides you with 5Ethernet interfaces.
RY
SICAM A8000
CI - 8520
ER
X2
X3
X4
X5
ETH
ETH
ETH
ETH
X1
ETH

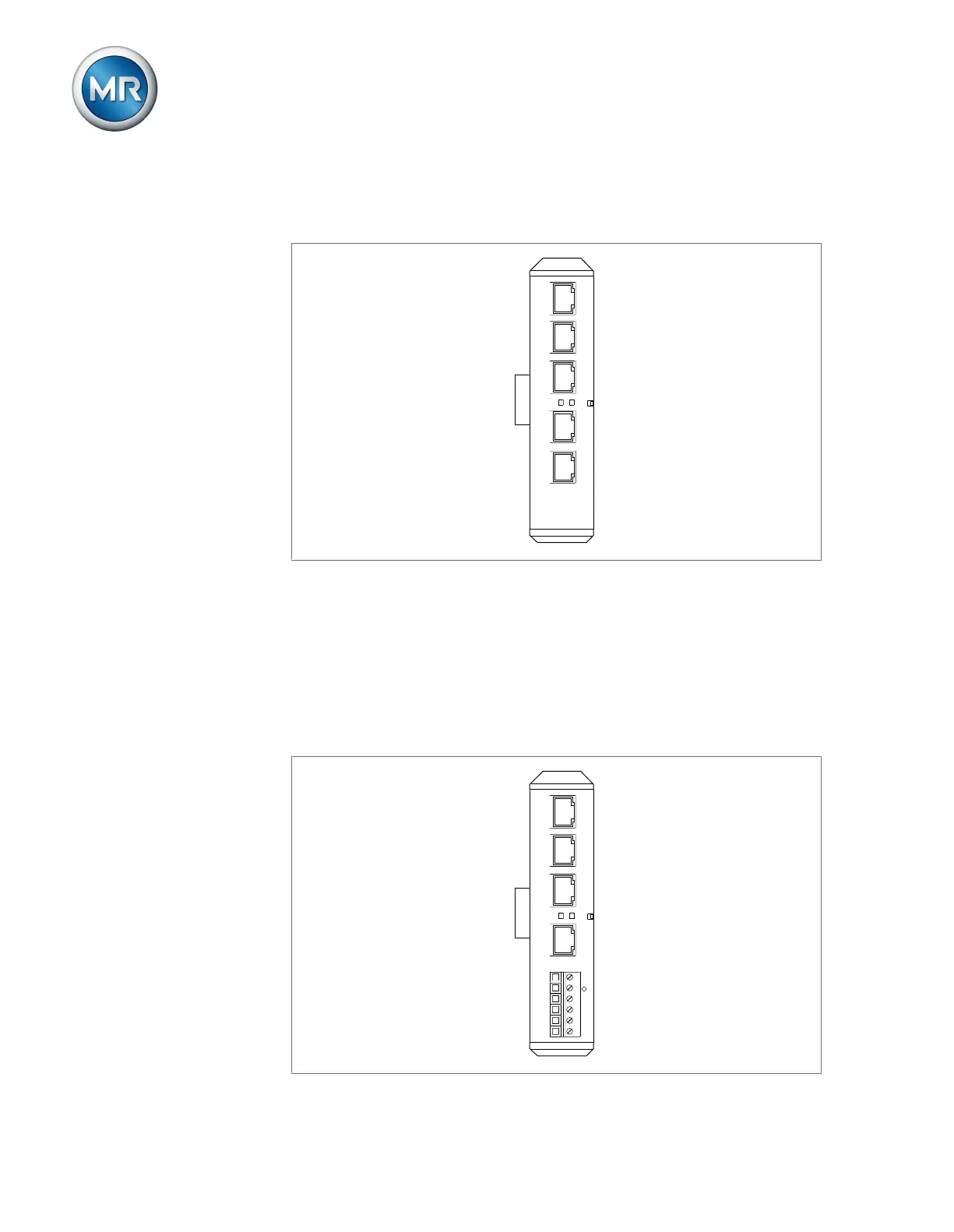

Figure9: COM-ETH assembly
4.4.3.1.2 CPU (central processing unit)
The CPU assembly is the central processing unit for the device. It contains
the following interfaces:
▪ Serial interface RS485/422 (electrically isolated, X4)
▪ Internal system interface RS232 (X5)
▪ 2x Ethernet 10/100Mbps (electrically isolated, X2, X3)
1
2
3
4
5
6
X1
RY
SICAM A8000
CP - 8050
ER
X2
X3
X4
X5
ETH
ETH
RS-485
RS-232
Figure10: CPU assembly
