INTRODUCTION TO THE DT820 PHONES
ITY-8LDX Phone Specifics
DT820 Phone User Guide 2 -19
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ITY-8LDX PHONE SPECIFICS
PROGRAMMABLE KEY INFORMATION DISPLAY
The DESI-Less (label-less) LCD on the ITY-8LD phone allows you to access up to 32
available Programmable keys on 4 pages (depending on the licensing for your
phone), using the Scroll key to navigate between pages.

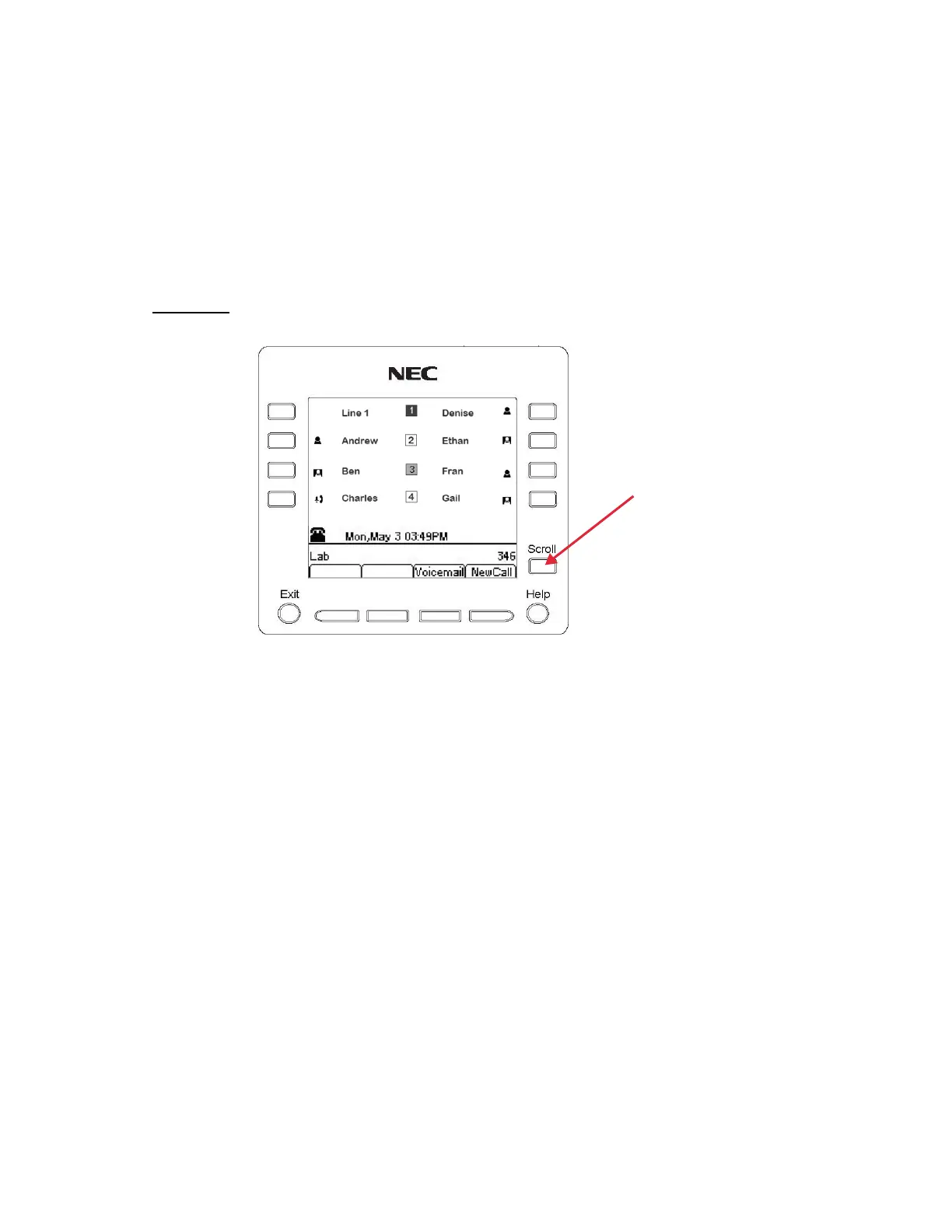

Figure 2.6 Scroll key
The Page Icon indicates the currently displayed page. You can change pages using
the Scroll key. The display offers the following Programmable Keys on the four pages
available on the display:
The name or number assigned to each configured key is shown. If Presence
Monitoring is configured for the key, an icon shows the current presence status of that
line. The current page number is also show.
Page 1 1 Line Key and 7 Programmable Keys
Page
2 8 Programmable Keys
Page
3 8 Programmable Keys
Page
4 8 Programmable Keys
Total Programmable Keys = 31 Programmable Keys
Scroll Key
To Next Page
