DT820 Phone User Guide 3 -27
Ch 3 - Installation
. . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
INSTALLATION
3
BEFORE YOU BEGIN
• Remove the phone from its packaging and inspect the phone for any damages.
• Verify that a station/account has been created for the user and phone.
• These steps only outline the setup of the equipment and physical connection of the
phone to the network. For information on configuring a phone for connection to the
network, contact your system administrator.
• Read through the installation procedures and assemble any equipment required to
install the phone (10 BASE-T/100 BASE-T/TX LAN cable, power adapter, tapered
rod, screwdrivers, etc.).
ADJUSTING ANGLE OF TILT LEG
The angle of the tilt leg can be adjusted in two levels.

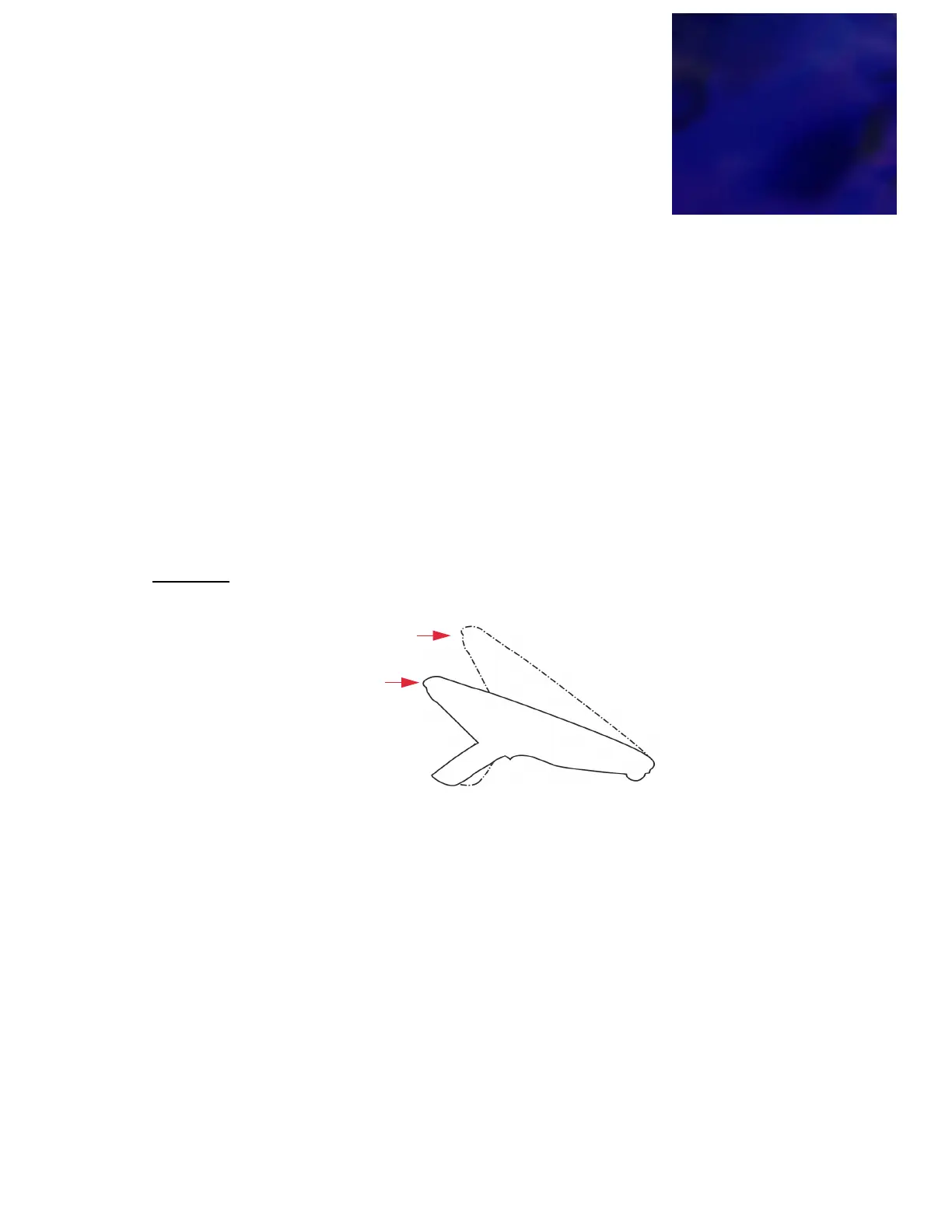

Figure 3.1 Tilt Levels
To raise tilt leg
1 Turn the phone upside down.
2 Pull out the leg stoppers.
First Level
Second Level
To Next Page
