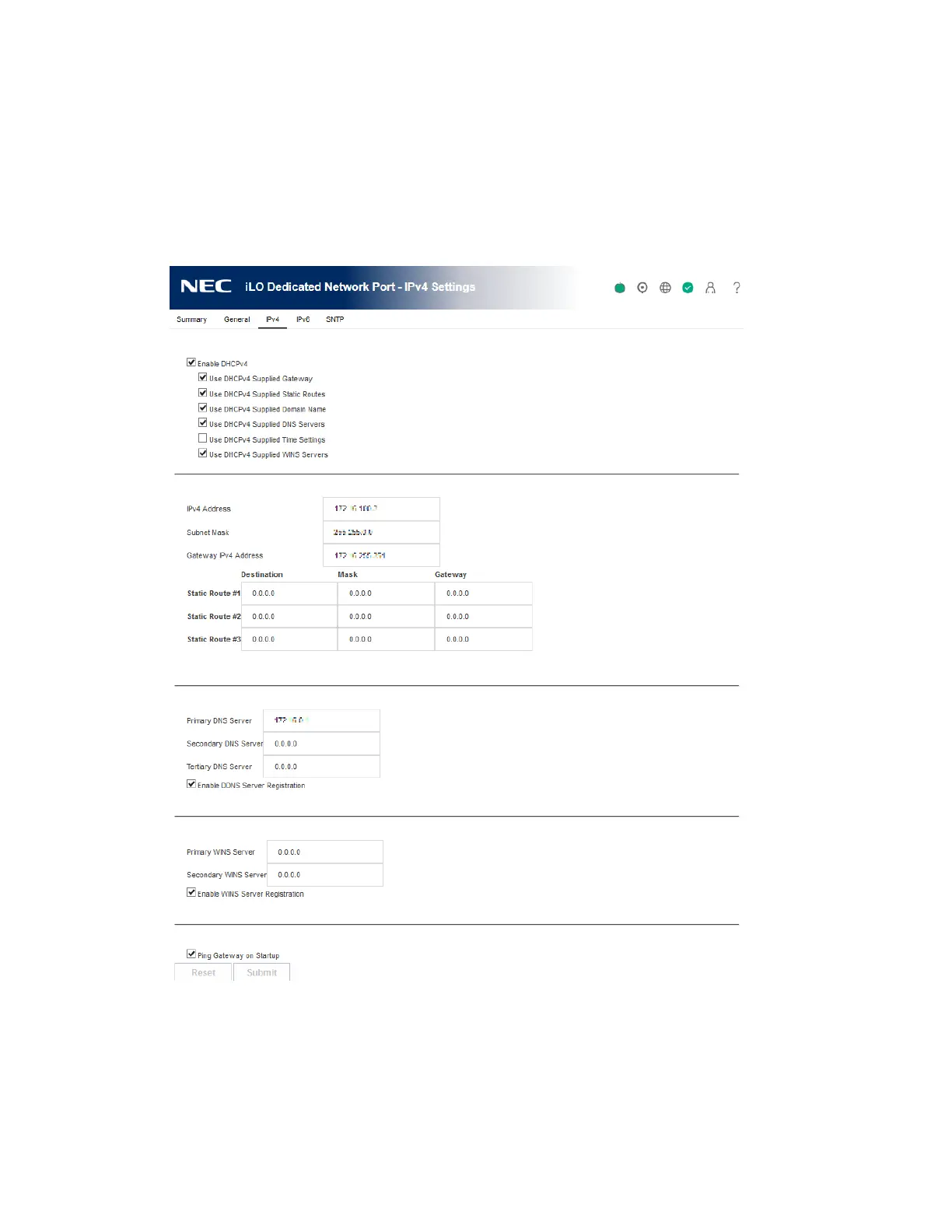

Configuring IPv4 settings

Prerequisites

Configure iLO Settings privilege

Procedure

1. Click iLO Dedicated Network Port or iLO Shared Network Port in the navigation tree, and

then click the IPv4 tab.

2. Configure the DHCPv4 settings.

3. Configure the general IPv4 settings.

4. Configure the DNS server information.

5. Configure the WINS server information.

Default Chapter3
