Configure Switching
107
S350 Series 8-Port Gigabit Ethernet Smart Managed Pro Switch Models GS308T and GS310TP

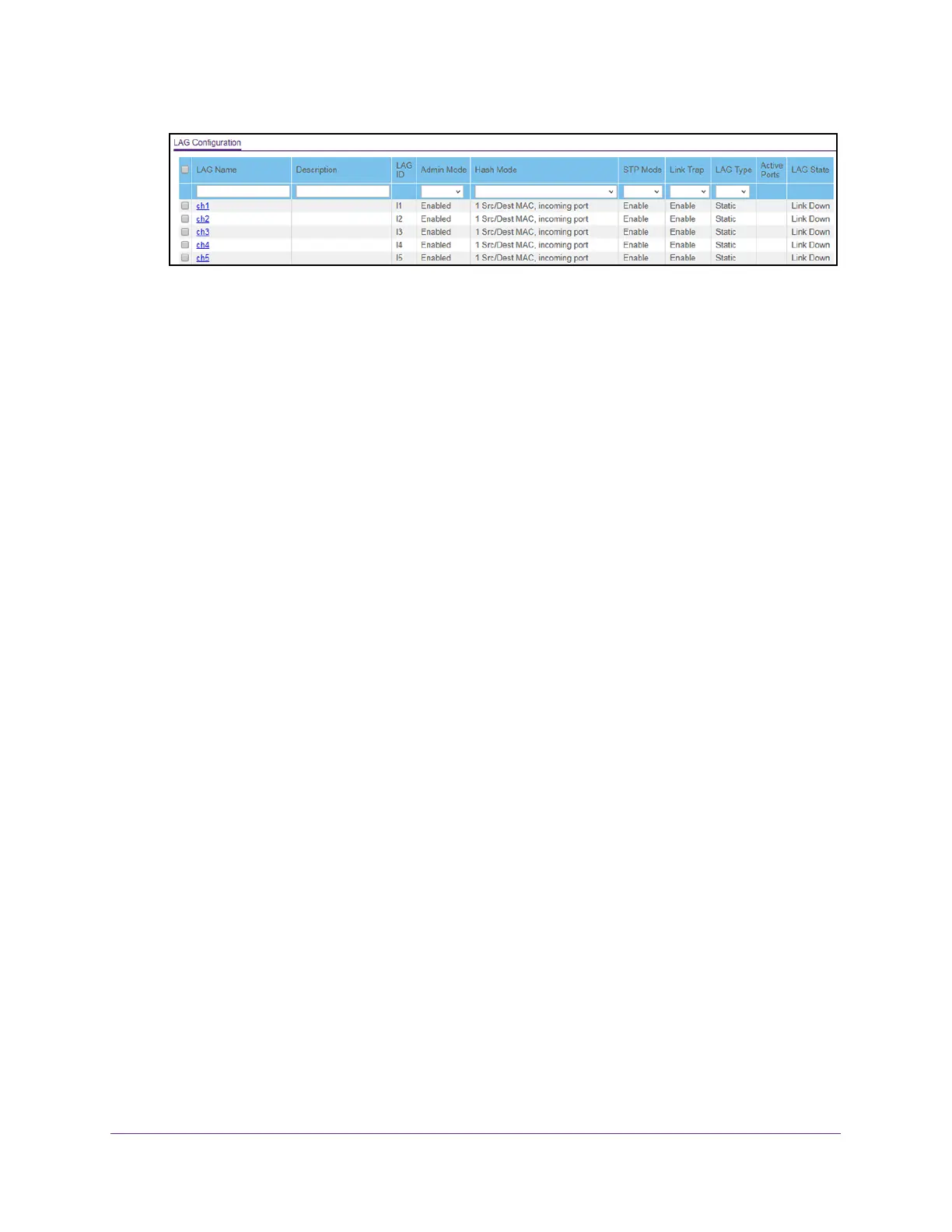

6. In the LAG Name field, enter a name for the LAG.
You can enter any string of up to 15 alphanumeric characters.
7. In the Description field, enter the description string to be attached to a LAG.
The description can be up to 64 characters in length.
8. From the Admin Mode menu, select Enable or Disable.
When the LAG is disabled, no traffic flows and LACPDUs are dropped, but the links that
form the LAG are not released.
The default is Enable.
9. From the Hash Mode menu, select the load-balancing mode for a port channel (LAG):
• 1 Src/Dest MAC, incoming port.
This mode uses the source MAC address,
destination MAC address, and incoming port that are associated with the packet.
• 2 Src/Dest IP and TCP/UDP Port Fields.
This mode uses the source and destination
IP addresses and source and destination TCP or UDP port values that are associated
with the packet.
Note: The switch balances traffic on a port channel (LAG) by selecting one
of the links in the channel over which packets must be transmitted. The
switch selects the link by creating a binary pattern from selected fields
in a packet and associating that pattern with a particular link.
10. From the STP Mode menu, select the Spanning
Tree Protocol (STP) administrative mode
associated with the LAG:
• Disable. Spanning tree is disabled for this LAG.
• Enable. Spanning tree is enabled for this LAG. Enable is the default.
11. From the Link T
rap menu, select Enable or Disable to specify whether to send a trap when
the link status changes.
The default is Enable, which causes the trap to be sent.
12. From the LAG T
ype menu, select Static or LACP:
• Static. Disables Link
Aggregation Control Protocol (LACP) on the selected LAG. The
LAG is configured manually. The default is Static.
• LACP. Disables LACP on the selected LAG.
The LAG is configured automatically.
13. Click the Apply button.
Your settings are saved.
