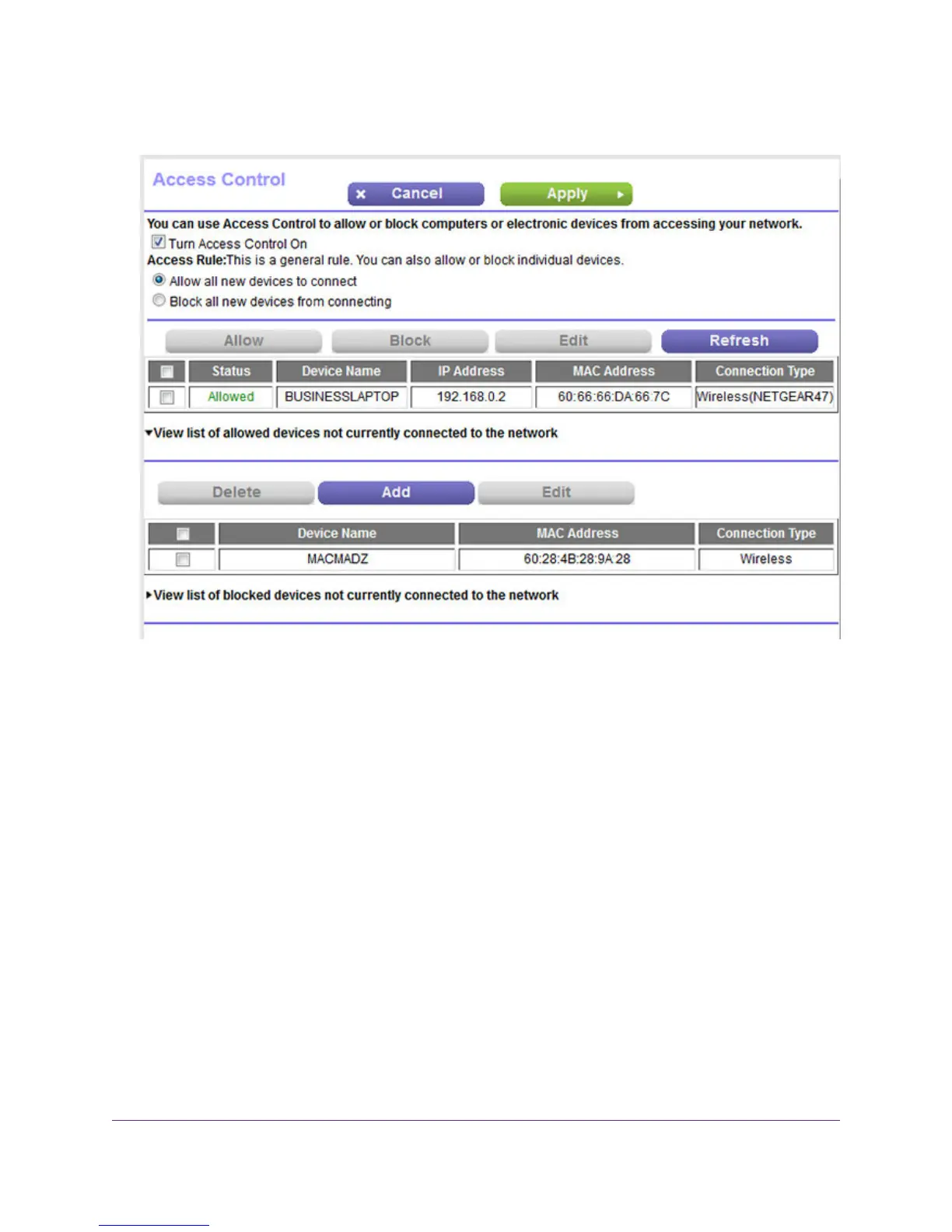

A table displays the detected device name, MAC address, and connection type of the devices that
are not connected but allowed to access the network.
7. To add a device to the allowed list, do the following:
a. Click the Add button.
The Add Allowed Device page displays.
b. Enter the MAC address and device name for the device that you want to allow.
c. On the Add Allowed Device page, click the Apply button.
The device is added to the allowed list on the Access Control page.
8. To remove a device from allowed list, do the following:
a. Select the check box for the device.
b. Click the Delete button.
The device is removed from the allowed list.
9. Click the Apply button.
Control Access to the Internet
140
Nighthawk AC1900 WiFi VDSL/ADSL Modem Router Model D7000

Table of Contents

Other manuals for NETGEAR Nighthawk D7000

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the NETGEAR Nighthawk D7000 and is the answer not in the manual?

NETGEAR Nighthawk D7000 Specifications

General IconGeneral
Ethernet LANYes
Cabling technology10/100/1000Base-T(X)
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN data rates10, 100, 1000 Mbit/s
Ethernet LAN interface typeGigabit Ethernet
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Wi-Fi standards802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standardWi-Fi 5 (802.11ac)
WLAN data transfer rate (max)1300 Mbit/s
USB version3.2 Gen 1 (3.1 Gen 1)
Rack mountingNo
Bandwidth (first)2.4 GHz
Bandwidth (second)5 GHz
USB ports quantity2
WLAN data transfer rates supported600, 1300 Mbit/s
Memory card slot(s)-
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports5
DSL specificationVDSL, VDSL2, ADSL, ADSL2, ADSL2+
Antennas quantity3
Security algorithmsWPA, WPA2-PSK, WPS
Product typeTabletop router
Product colorBlack
Flash memory128 MB
Internal memory256 MB
Processor frequency1000 MHz
Cables includedLAN (RJ-45)
Power source typeAC
Weight and Dimensions IconWeight and Dimensions
Depth185 mm
Width285 mm
Height50 mm
Weight750 g
