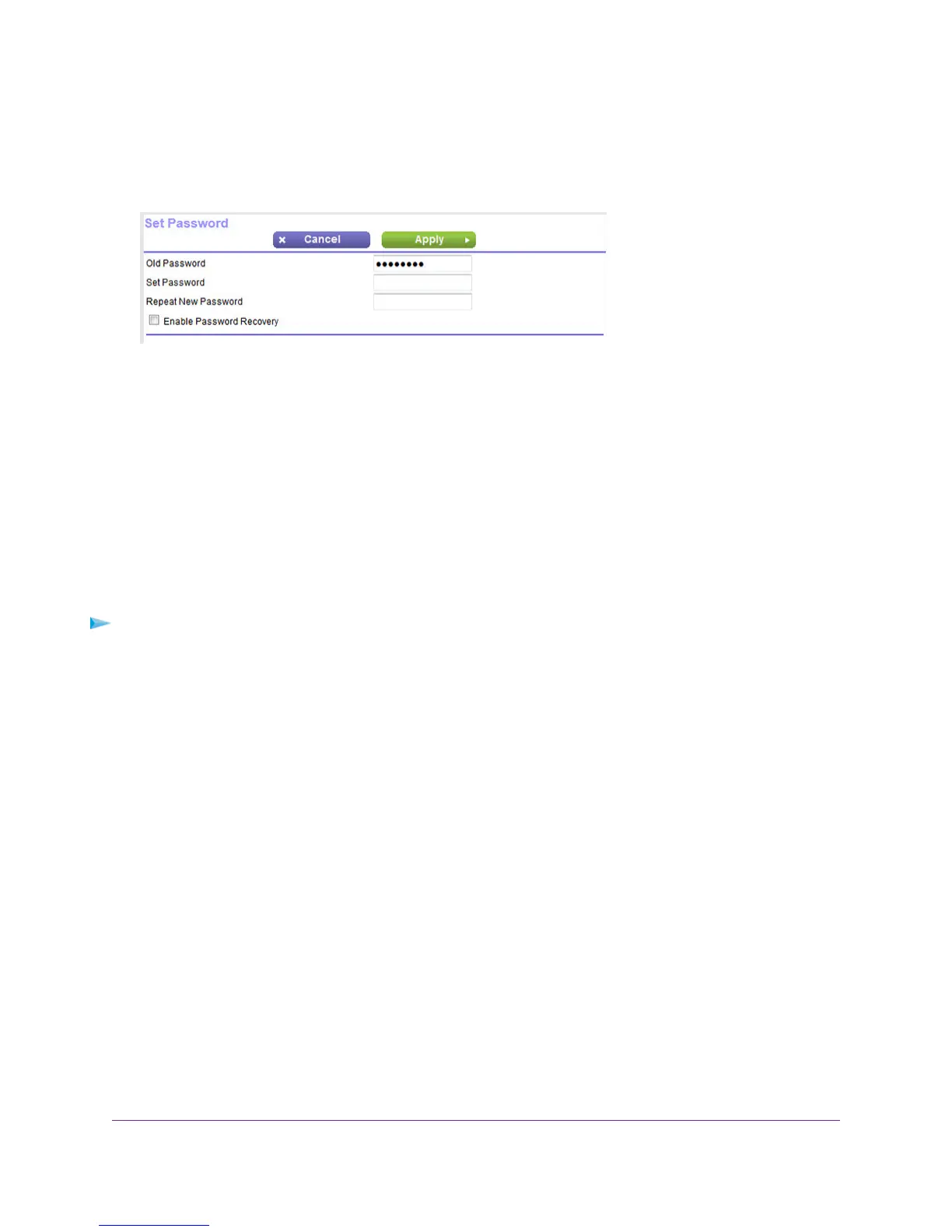

The BASIC Home page displays.
5. Select ADVANCED > Administration > Set Password.
6. Enter the old password.
7. Enter the new password twice.
8. Click the Apply button.
Your settings are saved.
Set Up Password Recovery
NETGEAR recommends that you enable password recovery if you change the password for the modem
router user name admin.Then you can recover the password if it is forgotten.This recovery process is
supported in Internet Explorer, Firefox, and Chrome browsers, but not in the Safari browser.
To set up password recovery:
1. Launch an Internet browser from a computer or WiFi device that is connected to the network.
2. Type http://www.routerlogin.net.
A login window opens.
3. Enter the modem router user name and password.
The user name is admin.The default password is password. The user name and password are
case-sensitive.
4. Click the OK button.
The BASIC Home page displays.
5. Select ADVANCED > Administration > Set Password.
The Set Password page displays.
6. Select the Enable Password Recovery check box.
7. Select two security questions and provide answers to them.
8. Click the Apply button.
Install and Access the Modem Router and Its Network
42
Nighthawk AC1900 WiFi VDSL/ADSL Modem Router Model D7000

Table of Contents

Other manuals for NETGEAR Nighthawk D7000

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the NETGEAR Nighthawk D7000 and is the answer not in the manual?

NETGEAR Nighthawk D7000 Specifications

General IconGeneral
Ethernet LANYes
Cabling technology10/100/1000Base-T(X)
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN data rates10, 100, 1000 Mbit/s
Ethernet LAN interface typeGigabit Ethernet
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Wi-Fi standards802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standardWi-Fi 5 (802.11ac)
WLAN data transfer rate (max)1300 Mbit/s
USB version3.2 Gen 1 (3.1 Gen 1)
Rack mountingNo
Bandwidth (first)2.4 GHz
Bandwidth (second)5 GHz
USB ports quantity2
WLAN data transfer rates supported600, 1300 Mbit/s
Memory card slot(s)-
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports5
DSL specificationVDSL, VDSL2, ADSL, ADSL2, ADSL2+
Antennas quantity3
Security algorithmsWPA, WPA2-PSK, WPS
Product typeTabletop router
Product colorBlack
Flash memory128 MB
Internal memory256 MB
Processor frequency1000 MHz
Cables includedLAN (RJ-45)
Power source typeAC
Weight and Dimensions IconWeight and Dimensions
Depth185 mm
Width285 mm
Height50 mm
Weight750 g
