The user name is admin.The default password is password. The user name and password are
case-sensitive.
4. Click the OK button.
The BASIC Home page displays.
5. Select ADVANCED > Advanced Setup > Port Forwarding / Port Triggering.

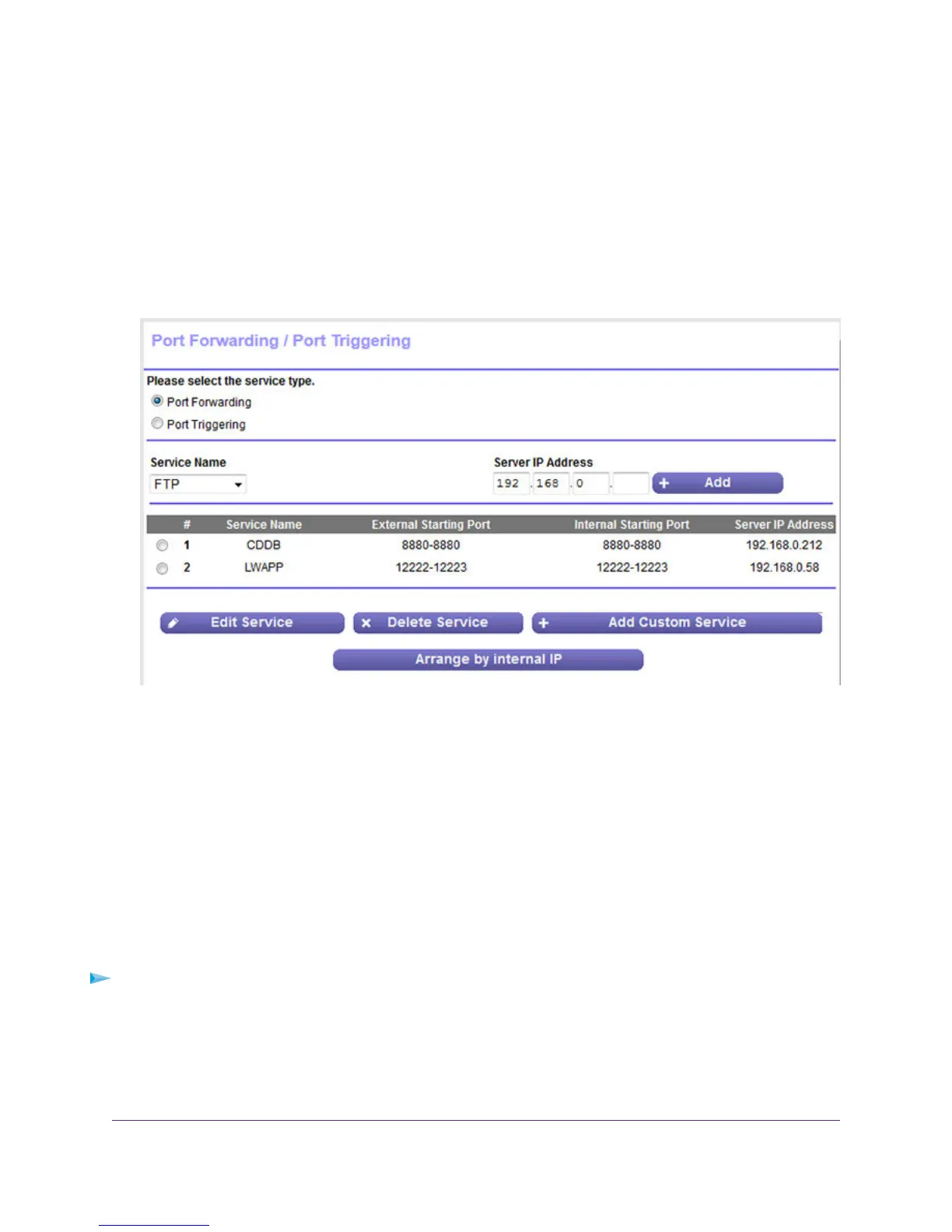

The previous figure shows two custom port forwarding rules.
6. Make sure that the Port Forwarding radio button is selected.
7. In the table, select the radio button next to the service or application name.
8. Click the Delete Service button.
The rule is removed from the table.
Application Example: Make a Local Web Server Public
If you host a web server on your local network, you can use port forwarding to allow web requests from
anyone on the Internet to reach your web server.
To make a local web server public:
1. Assign your web server either a fixed IP address or a dynamic IP address using DHCP address
reservation.
Manage Port Forwarding and Port Triggering
282
Nighthawk AC1900 WiFi VDSL/ADSL Modem Router Model D7000

Table of Contents

Other manuals for NETGEAR Nighthawk D7000

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the NETGEAR Nighthawk D7000 and is the answer not in the manual?

NETGEAR Nighthawk D7000 Specifications

General IconGeneral
Ethernet LANYes
Cabling technology10/100/1000Base-T(X)
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN data rates10, 100, 1000 Mbit/s
Ethernet LAN interface typeGigabit Ethernet
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Wi-Fi standards802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standardWi-Fi 5 (802.11ac)
WLAN data transfer rate (max)1300 Mbit/s
USB version3.2 Gen 1 (3.1 Gen 1)
Rack mountingNo
Bandwidth (first)2.4 GHz
Bandwidth (second)5 GHz
USB ports quantity2
WLAN data transfer rates supported600, 1300 Mbit/s
Memory card slot(s)-
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports5
DSL specificationVDSL, VDSL2, ADSL, ADSL2, ADSL2+
Antennas quantity3
Security algorithmsWPA, WPA2-PSK, WPS
Product typeTabletop router
Product colorBlack
Flash memory128 MB
Internal memory256 MB
Processor frequency1000 MHz
Cables includedLAN (RJ-45)
Power source typeAC
Weight and Dimensions IconWeight and Dimensions
Depth185 mm
Width285 mm
Height50 mm
Weight750 g
