NETGEAR Nighthawk D7000 User Manual

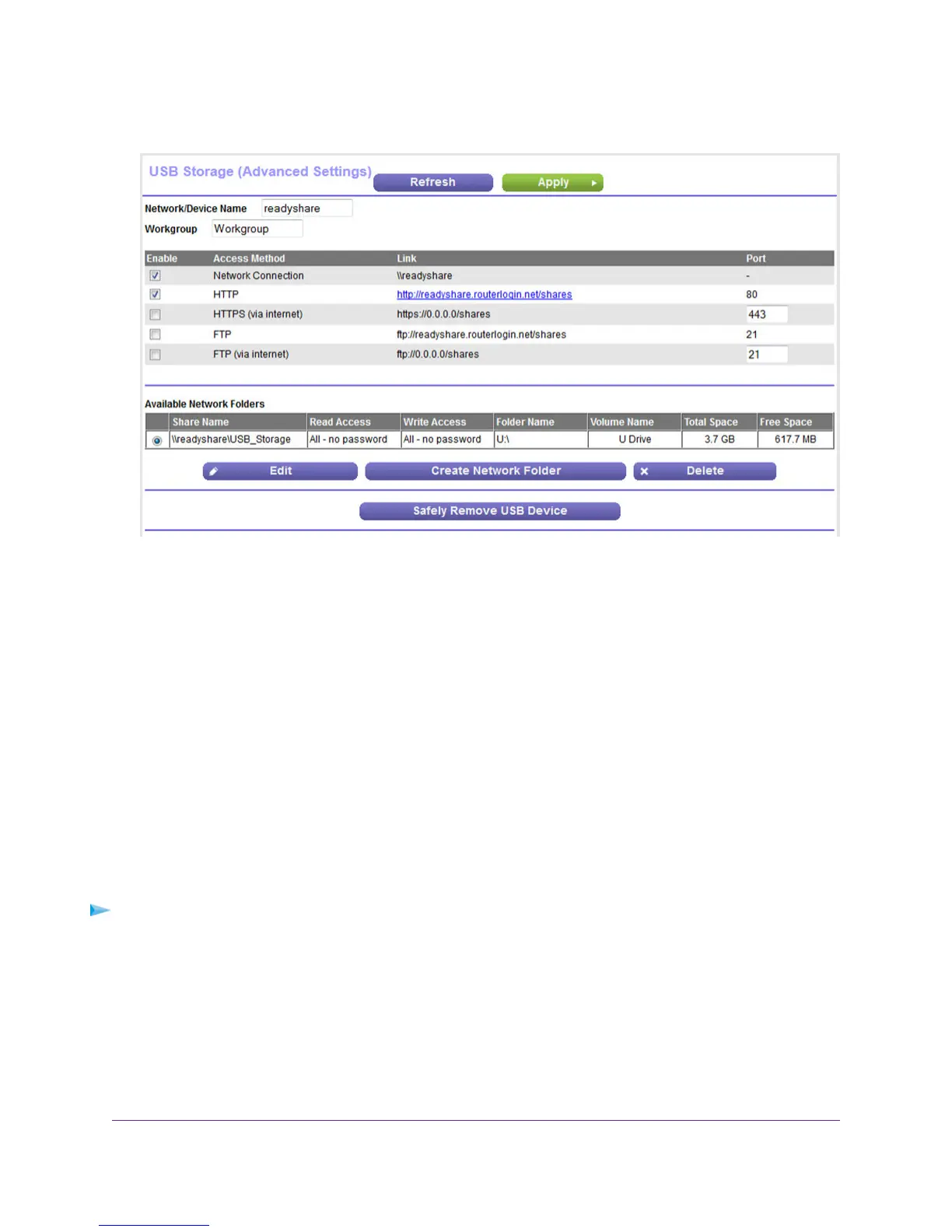

The previous figure shows a USB device attached to the modem router.
7. The Available Networks Folder section shows the following settings:
• Share Name.The default share name is USB_Storage.
• Read Access and Write Access. The permissions and access controls on the network folder.
All–no password (the default) allows all users to access the network folder. The password for
admin is the same one that you use to log in to the modem router.
• Folder Name. Full path of the network folder.
• Volume Name. Volume name from the storage device.
• Total Space and Free Space. The current utilization of the storage device.
Add a Network Folder on a Storage Device
You can add network folders on a storage device connected to the USB port on the modem router.
To add a network folder:
1. Launch an Internet browser from a computer or WiFi device that is connected to the network.
2. Type http://www.routerlogin.net.
A login window opens.
3. Enter the user name and password for the modem router.
Share a Storage Device
184
Nighthawk AC1900 WiFi VDSL/ADSL Modem Router Model D7000

NETGEAR Nighthawk D7000 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1300 Mbit/s
USB version	3.2 Gen 1 (3.1 Gen 1)
Rack mounting	No
Bandwidth (first)	2.4 GHz
Bandwidth (second)	5 GHz
USB ports quantity	2
WLAN data transfer rates supported	600, 1300 Mbit/s
Memory card slot(s)	-
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	5
DSL specification	VDSL, VDSL2, ADSL, ADSL2, ADSL2+
Antennas quantity	3
Security algorithms	WPA, WPA2-PSK, WPS
Product type	Tabletop router
Product color	Black
Flash memory	128 MB
Internal memory	256 MB
Processor frequency	1000 MHz
Cables included	LAN (RJ-45)
Power source type	AC

Weight and Dimensions

Depth	185 mm
Width	285 mm
Height	50 mm
Weight	750 g
