NETGEAR Nighthawk D7000 User Manual

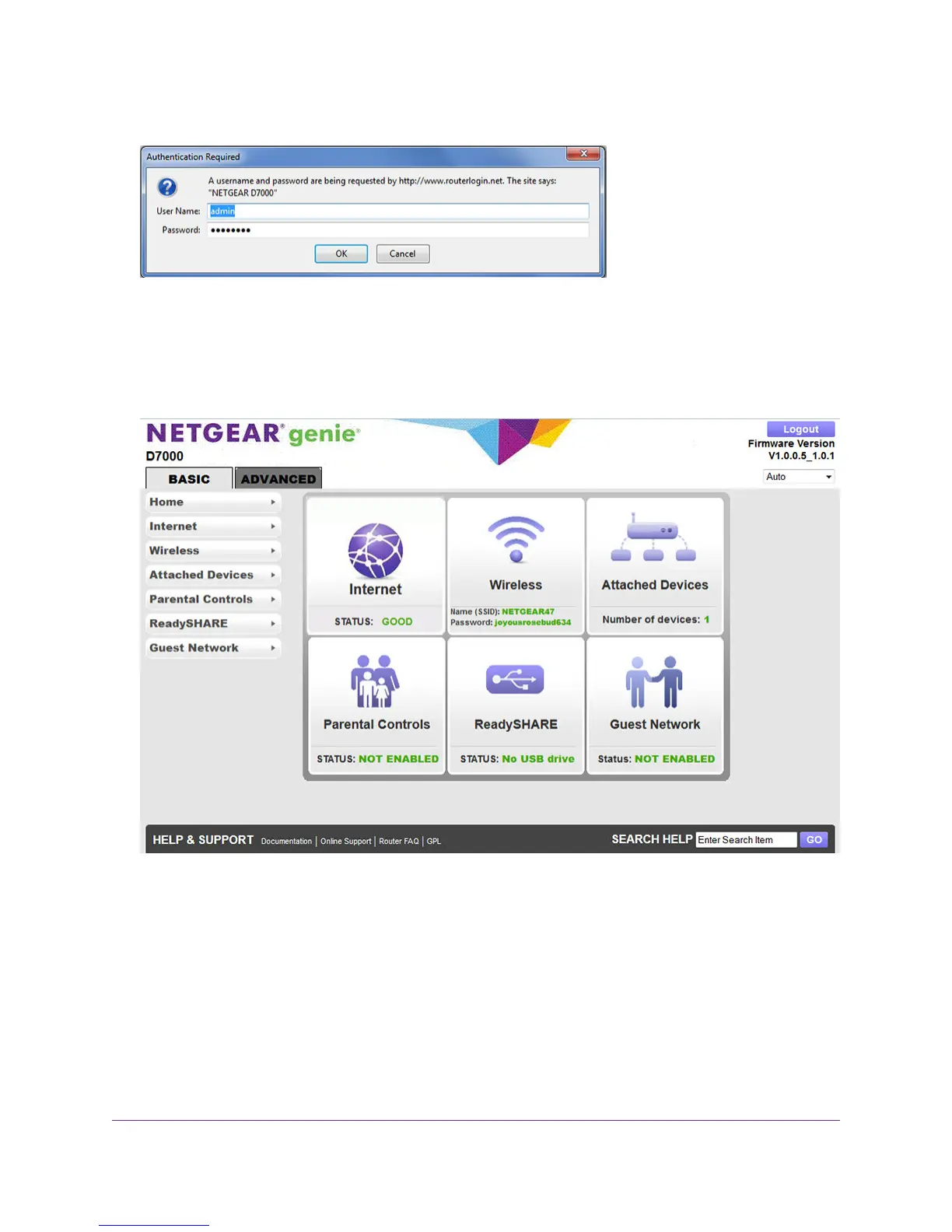

3. Enter the modem router user name and password.
The user name is admin.The default password is password. The user name and password are
case-sensitive.
4. Click the OK button.
The BASIC Home page displays a dashboard that lets you see the status of your Internet connection
and network at a glance.You can click any of the sections of the dashboard to view more detailed
information. The left column displays the menus, and at the top is an ADVANCED tab that you can
use to access more menus and pages.
Change the Language
By default, the language is set as Auto.You can change the language.
Install and Access the Modem Router and Its Network
40
Nighthawk AC1900 WiFi VDSL/ADSL Modem Router Model D7000

NETGEAR Nighthawk D7000 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1300 Mbit/s
USB version	3.2 Gen 1 (3.1 Gen 1)
Rack mounting	No
Bandwidth (first)	2.4 GHz
Bandwidth (second)	5 GHz
USB ports quantity	2
WLAN data transfer rates supported	600, 1300 Mbit/s
Memory card slot(s)	-
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	5
DSL specification	VDSL, VDSL2, ADSL, ADSL2, ADSL2+
Antennas quantity	3
Security algorithms	WPA, WPA2-PSK, WPS
Product type	Tabletop router
Product color	Black
Flash memory	128 MB
Internal memory	256 MB
Processor frequency	1000 MHz
Cables included	LAN (RJ-45)
Power source type	AC

Weight and Dimensions

Depth	185 mm
Width	285 mm
Height	50 mm
Weight	750 g
