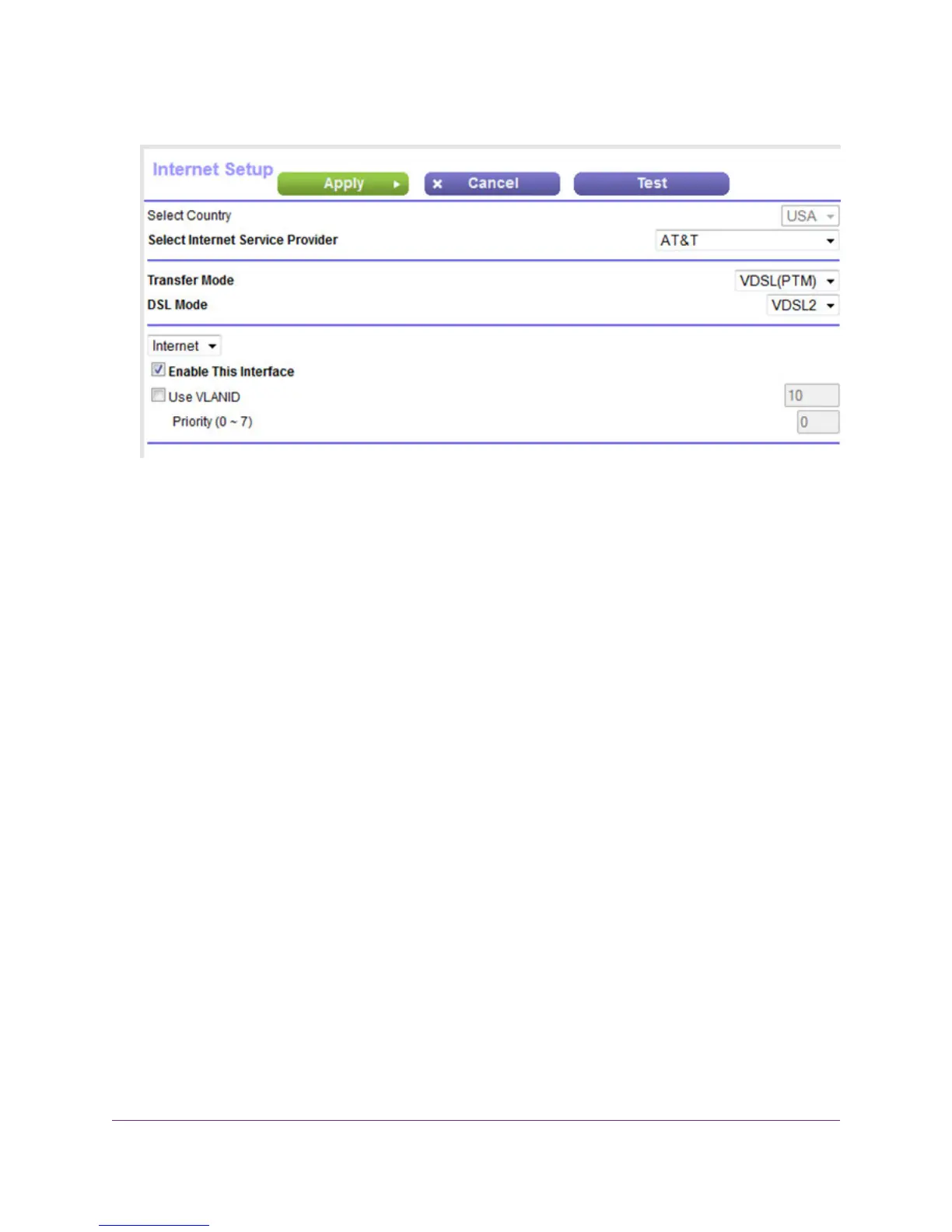

6. Configure a VLAN for the virtual Internet interface:
a. Make sure that Internet is selected from the menu above the Enable This Interface check box
and that the Enable This Interface check box is selected for the virtual Internet interface (it is by
default).
b. Select the Use VLANID check box.
c. Enter a VLAN ID that applies to the virtual Internet interface.
The VLAN ID can be in a range from 0 to 4094.The default VLAN ID is 10.
d. To specify a priority for the VLAN, in the Priority (0 ~ 7) field, enter a value from 0 to 7.
e. Click the Apply button.
Your settings are saved for the virtual Internet interface.
7. From the menu above the Enable This Interface check box, select IPTV.
Manage the WAN and LAN Network Settings
213
Nighthawk AC1900 WiFi VDSL/ADSL Modem Router Model D7000
