NETGEAR Nighthawk D7000 User Manual

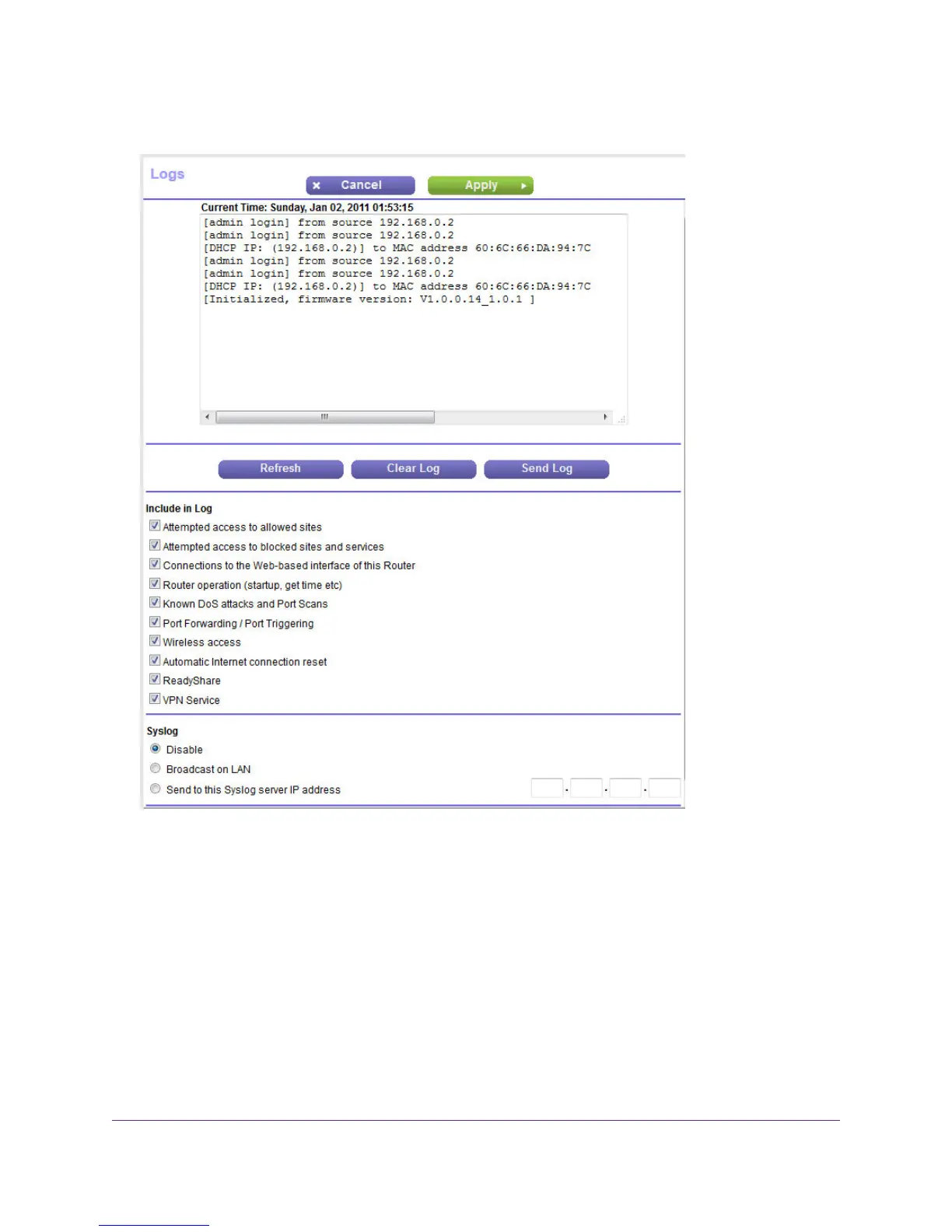

The Logs page shows the following information:
• Action.The action that occurred, such as whether Internet access was blocked or allowed.
• Source.The name, IP address, or MAC address of the target device, application, or website for
this log entry.
• Target. The name, IP address, or MAC address of the target device, application, or website for
this log entry.
5. To refresh the log screen, click the Refresh button.
6. To clear the log entries, click the Clear Log button.
7. To email the log immediately, click the Send Log button.
Manage the Modem Router and Monitor the Traffic
254
Nighthawk AC1900 WiFi VDSL/ADSL Modem Router Model D7000

NETGEAR Nighthawk D7000 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1300 Mbit/s
USB version	3.2 Gen 1 (3.1 Gen 1)
Rack mounting	No
Bandwidth (first)	2.4 GHz
Bandwidth (second)	5 GHz
USB ports quantity	2
WLAN data transfer rates supported	600, 1300 Mbit/s
Memory card slot(s)	-
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	5
DSL specification	VDSL, VDSL2, ADSL, ADSL2, ADSL2+
Antennas quantity	3
Security algorithms	WPA, WPA2-PSK, WPS
Product type	Tabletop router
Product color	Black
Flash memory	128 MB
Internal memory	256 MB
Processor frequency	1000 MHz
Cables included	LAN (RJ-45)
Power source type	AC

Weight and Dimensions

Depth	185 mm
Width	285 mm
Height	50 mm
Weight	750 g
