NETGEAR Nighthawk D7000 User Manual

•

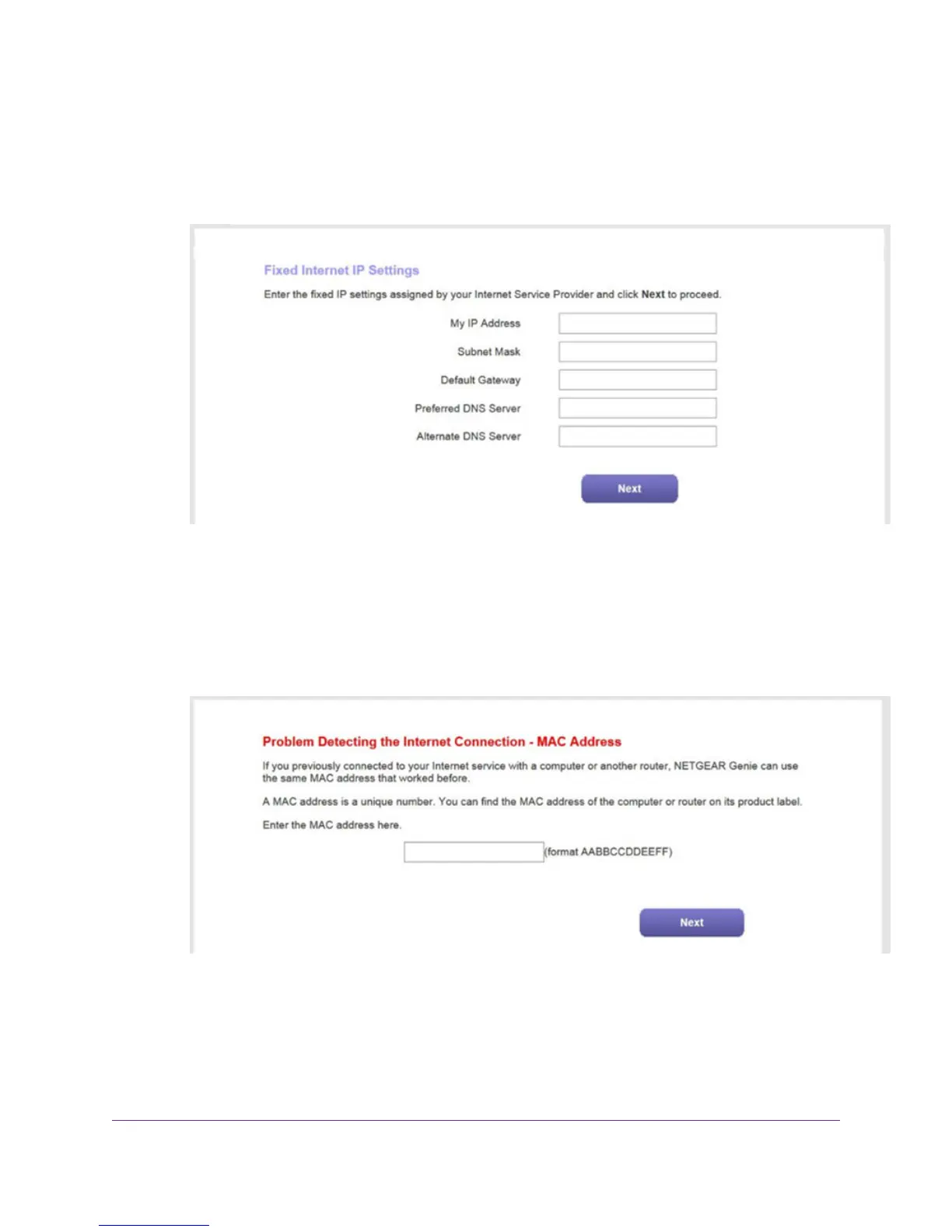

If your ISP assigned you a fixed (static) IP address, do the following:
a. Select the Yes radio button.
b. Click the Next button.
c. Enter the address information that your ISP gave you for your fixed IP address configuration.
d. Click the Next button.
•
If your ISP did not assign you a fixed IP address or you do not know if your ISP assigned you a
fixed IP address, do the following:
a. Select either the No or the I don’t know radio button.
b. Click the Next button.
c. Enter the MAC address of the computer or router with which you previously were able to connect
to the Internet.
Manage the Internet Settings Manually
50
Nighthawk AC1900 WiFi VDSL/ADSL Modem Router Model D7000

NETGEAR Nighthawk D7000 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1300 Mbit/s
USB version	3.2 Gen 1 (3.1 Gen 1)
Rack mounting	No
Bandwidth (first)	2.4 GHz
Bandwidth (second)	5 GHz
USB ports quantity	2
WLAN data transfer rates supported	600, 1300 Mbit/s
Memory card slot(s)	-
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	5
DSL specification	VDSL, VDSL2, ADSL, ADSL2, ADSL2+
Antennas quantity	3
Security algorithms	WPA, WPA2-PSK, WPS
Product type	Tabletop router
Product color	Black
Flash memory	128 MB
Internal memory	256 MB
Processor frequency	1000 MHz
Cables included	LAN (RJ-45)
Power source type	AC

Weight and Dimensions

Depth	185 mm
Width	285 mm
Height	50 mm
Weight	750 g
