NETGEAR Nighthawk D7000 User Manual

The user name is admin.The default password is password. The user name and password are
case-sensitive.
4. Click the OK button.
The BASIC Home page displays.

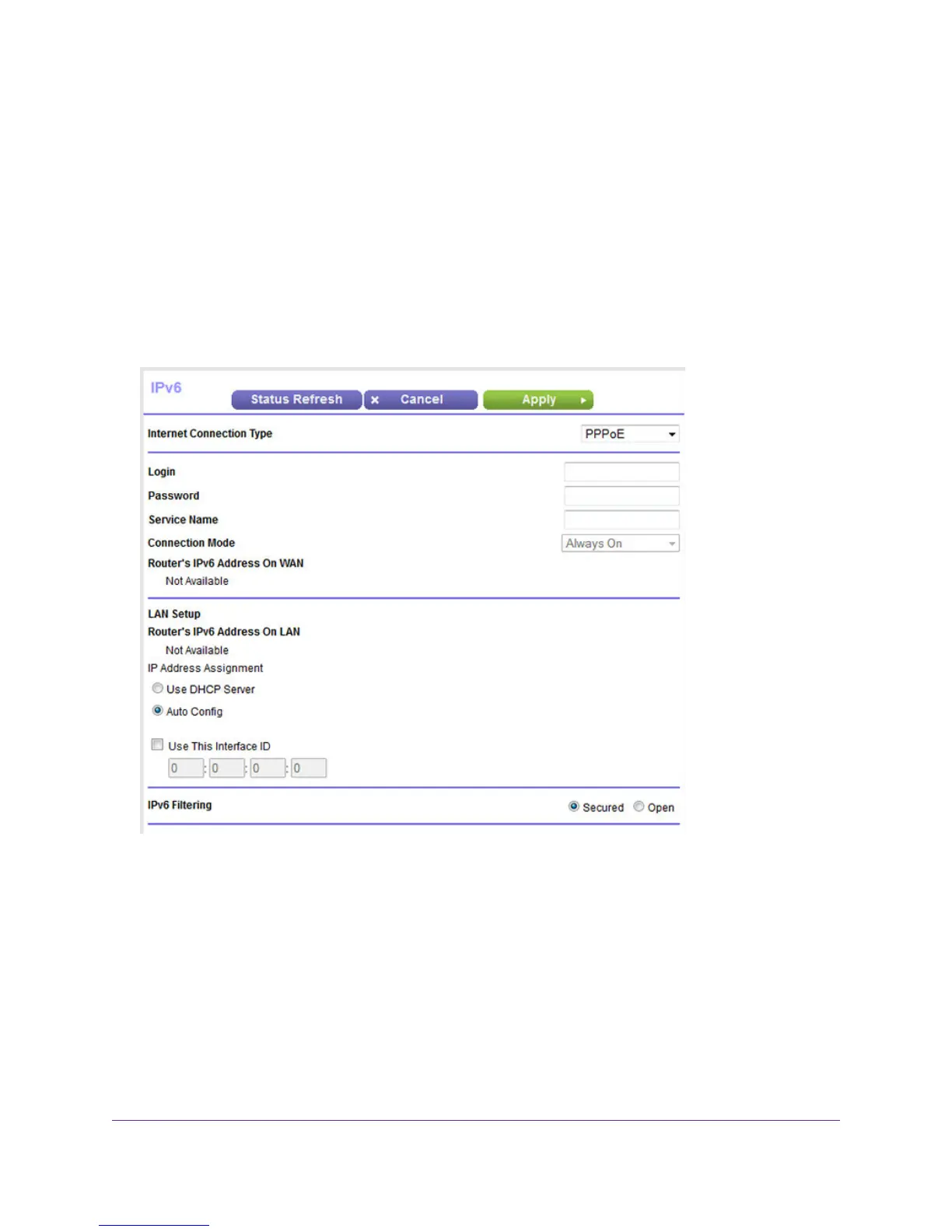

5. Select ADVANCED > Advanced Setup > IPv6.
The IPv6 page displays.
6. From the Internet Connection Type menu, select PPPoE.
The modem router automatically detects the information in the following fields:
• Router’s IPv6 Address On WAN. This field shows the IPv6 address that is acquired for the
modem router’s WAN (or Internet) interface.The number after the slash (/) is the length of the
prefix, which is also indicated by the underline (_) under the IPv6 address. If no address is acquired,
the field displays Not Available.
• Router’s IPv6 Address On LAN.This field shows the IPv6 address that is acquired for the modem
router’s LAN interface. The number after the slash (/) is the length of the prefix, which is also
indicated by the underline (_) under the IPv6 address. If no address is acquired, the field displays
Not Available.
7. In the Login field, enter the login information for the ISP connection.
Manage the Internet Settings Manually
95
Nighthawk AC1900 WiFi VDSL/ADSL Modem Router Model D7000

NETGEAR Nighthawk D7000 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1300 Mbit/s
USB version	3.2 Gen 1 (3.1 Gen 1)
Rack mounting	No
Bandwidth (first)	2.4 GHz
Bandwidth (second)	5 GHz
USB ports quantity	2
WLAN data transfer rates supported	600, 1300 Mbit/s
Memory card slot(s)	-
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	5
DSL specification	VDSL, VDSL2, ADSL, ADSL2, ADSL2+
Antennas quantity	3
Security algorithms	WPA, WPA2-PSK, WPS
Product type	Tabletop router
Product color	Black
Flash memory	128 MB
Internal memory	256 MB
Processor frequency	1000 MHz
Cables included	LAN (RJ-45)
Power source type	AC

Weight and Dimensions

Depth	185 mm
Width	285 mm
Height	50 mm
Weight	750 g
