Nikon ECLIPSE Ti2-U User Manual

Chapter 7 Assembly of the Devices
128

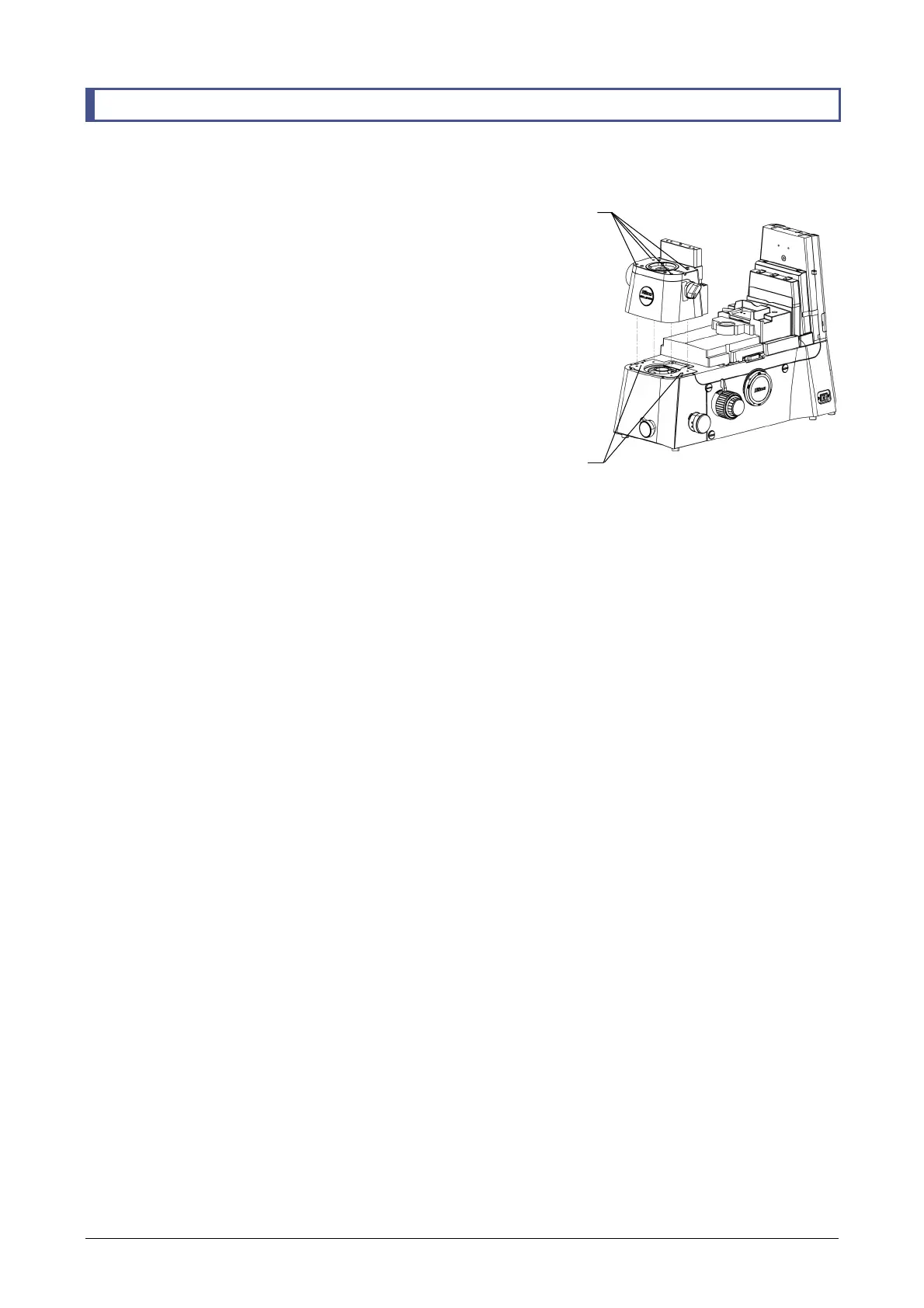

7.4 Mounting the Tube Base Unit
Mount the eyepiece tube base unit (TI2-T-BC or TI2-T-BC) on the microscope main body (base). (Tool: 4 mm
hex wrench, supplied with the microscope main body)
1. Place the tube base unit on the front part of
the microscope main body (base) while
keeping the eyepiece tube mounting position
of the tube base unit facing frontwards.
Two positioning holes are provided on the
bottom of the tube base unit. Place the tube
base unit by aligning them with the positioning
pins of the microscope base.
2. Insert the hex wrench into the tube base unit
from above, and affix the unit by tightening
the four M5 hex socket head cap screws
built into the stage.
Tube base uni
t
Microscope main bod
y
(base)
Hex socket head cap
screws (M5, x 4)
(built into the tube
base unit)
Positioning pins (x 2)
