Chapter 1 Names of Parts and Their Functions
12

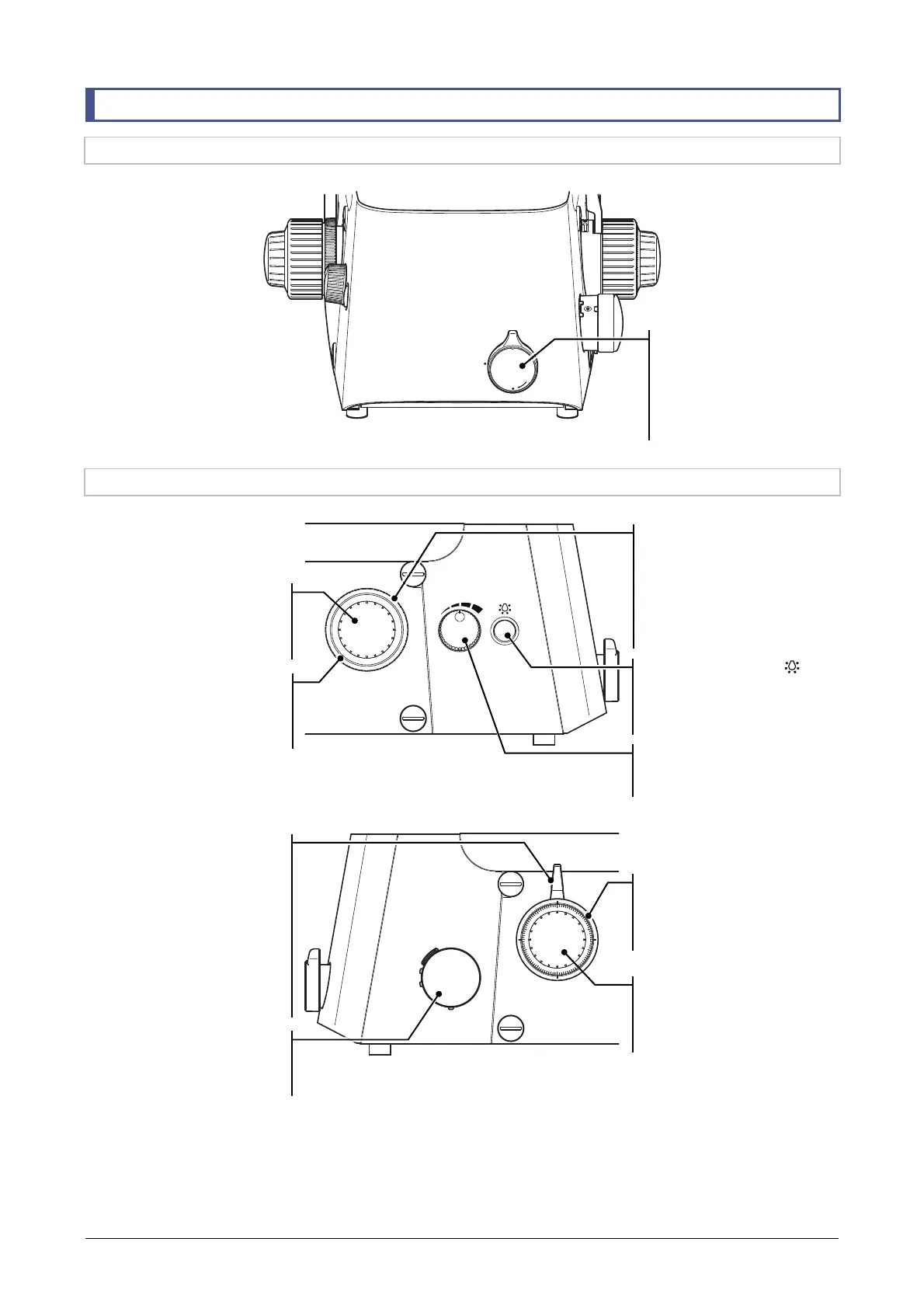

1.3 Operation Sections of the Microscope Main Body
1.3.1 Front Operation Panel
1.5x
Front operation panel
1.3.2 Right and Left Operation Panels
Left operation panel
Right operation panel
Intermediate magnification
dial
Use this dial to switch the
magnification of the entire
microscope between 1.0x
and 1.5x.
(
☞
3.2.2)
Coarse-focus knob torque
adjustment ring
This ring adjusts the torque of
the coarse-focus knob.
(
☞
3.11.2)
Turn the ring counterclockwise to
increase the torque or clockwise to
reduce the torque.
Fine-focus knob
(Fine-motion knob)
Use this knob to vertically move
the objective (focusing device) in
fine mode.
(
☞
3.11.1
)
Coarse-focus knob
(Coarse-motion knob)
Use this knob to vertically move
the objective (focusing device) in
coarse mode.
(
☞
3.11.1
)
Dia-illumination ON/OFF ( )
button
Use this button to turn on/off the
dia-illumination.
(
☞
3.3.2
)
Dia-illumination brightness adjuster
Use this knob to adjust brightness
of the dia-illumination. (
☞
3.3.7)
Refocusing lever
Use this lever to set the current
position of the coarse-focus knob
as the upper limit position. (
☞
3.11.3)
Pushing this lever to the vertical
position prevents the nosepiece
from moving upward even if the
coarse-focus knob is turned
(however, the nosepiece will be
moved upward by turning the
fine-focus knob).
Optical path changeover dial
Use this dial to switch the optical
path of the microscope main
body. (
☞
3.2.1)
Fine-focus knob
(Fine-motion knob)
Use this knob to vertically move
the objective (focusing device) in
fine mode. (
☞
3.11.1)
Coarse-
f
ocus knob
(Coarse-motion knob)
Use this knob to vertically move
the objective (focusing device) in
coarse mode. (
☞
3.11.1)
