Nikon ECLIPSE Ti2-U User Manual

Chapter 3 Usage of Components
54
3.6 Using the Tube and the Objective
3.6.1 Adjusting the Angle of the Binocular Part (ER tube)

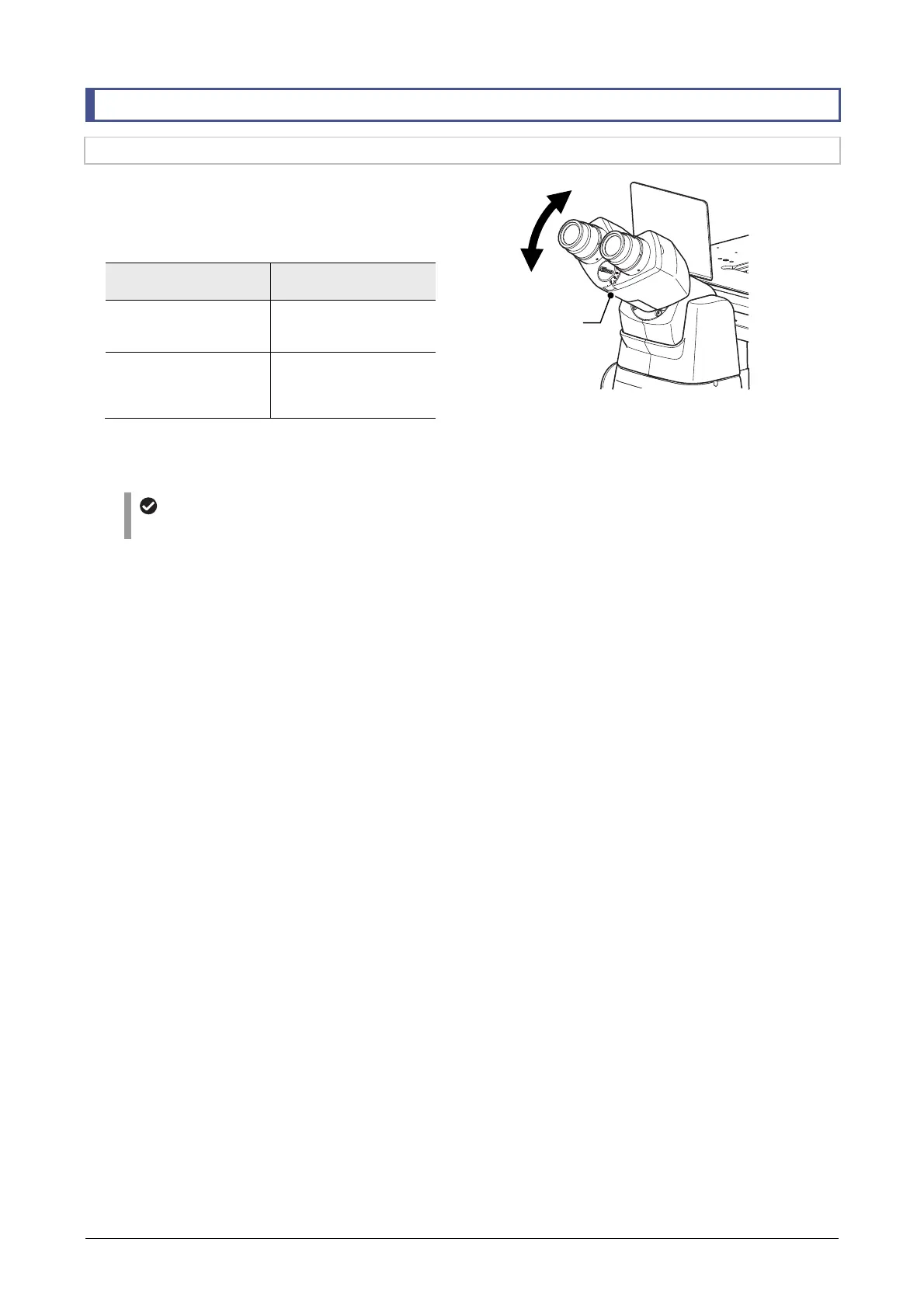

When using the ER tube (TC-T-ER), the angle of the
binocular part is adjustable within the range of 15 to
45 degrees.
 Operation:
Binocular part
Angle of the binocular
part
Turn the binocular part
upward.
The eyepiece faces
upward
(max. 45 degrees).
Turn the binocular part
downward.
The azimuth of the
eyepiece moves closer to
horizontal (min. 15
degrees).
Adjust the angle according to your preference for
comfortable viewing.
Adjusting the angle of the binocular part
In the case of using an S tube
The S tube (TC-T-TS) has no angle adjustment mechanism for the binocular part.
Binocular
p
ar
t
