Chapter 7 Assembly of the Devices
154
7.11.2 Attaching a Condenser Turret (System Condenser)
Attach a TC-C-TC condenser turret to the condenser mount of the illumination pillar.
(Tool: 2 mm hexagonal screwdriver, supplied with the microscope main body)
Assembling a system condenser
Assemble a system condenser by inserting a condenser module into the condenser turret and a condenser
lens on the bottom of the turret.
Combination of a condenser lens and a condenser module
Attach a condenser module suited to the purpose.
For combinations of condenser lenses and condenser modules that can be attached to condensers, see
“3.4 Using the Condenser Section.”

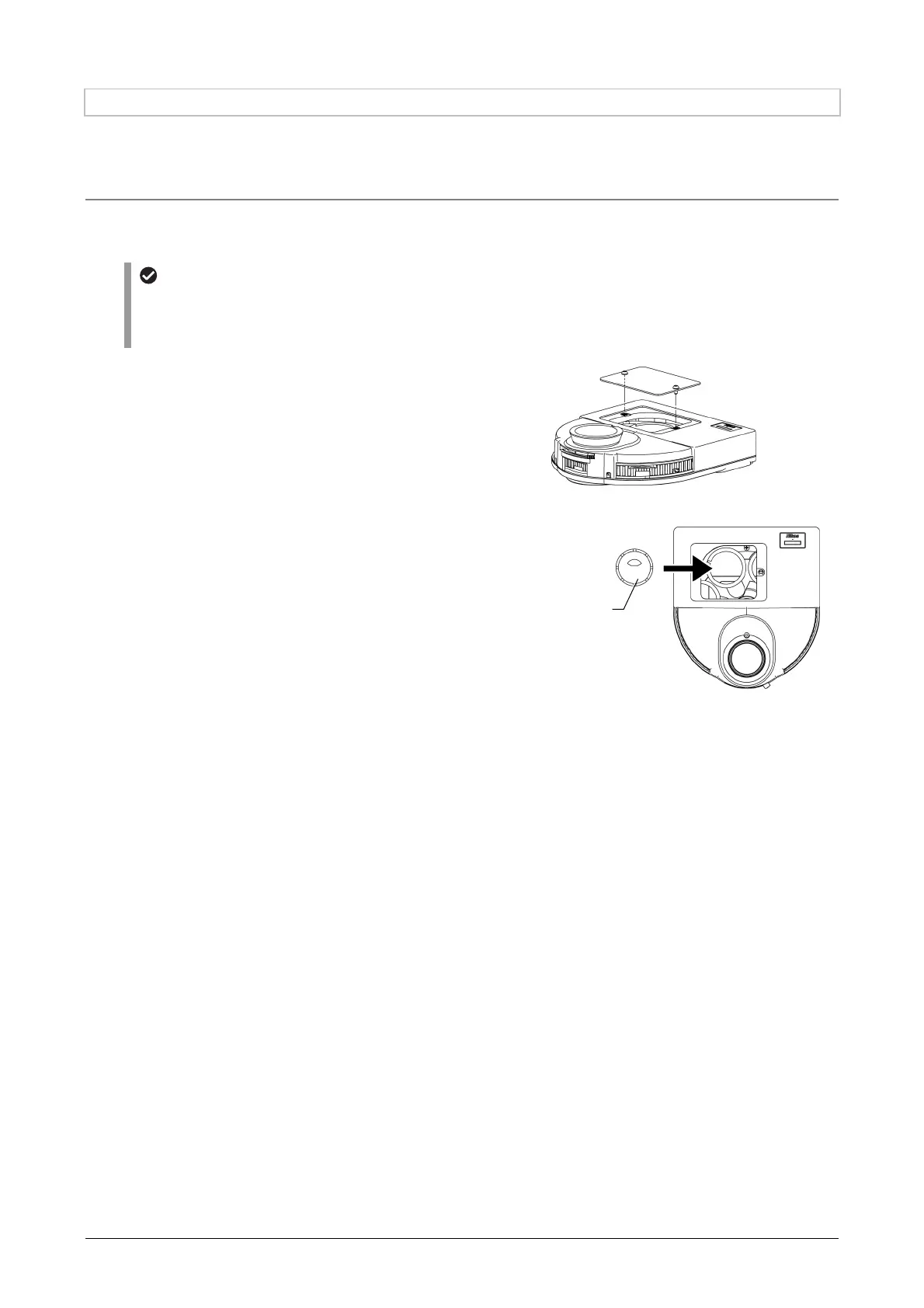

1. Loosen the two lid fixing screws using a
hexagonal screwdriver to remove the lid
from the top of the condenser turret.
2. Put the condenser module into the turret
inside so that it fits the turret. (Maximum of
seven modules)
There are two different sizes of the condenser
modules: the 37 mm diameter module and the
39 mm diameter module. Mount each module in
an appropriate position for the size of the
module.
Insert the module into the module mount so that
the numbers in NA and Ph code displayed on
the module increase when the turret is turned
clockwise (as seen from above).
Condenser module
