Nikon ECLIPSE Ti2-U User Manual

Chapter 3 Usage of Components
32

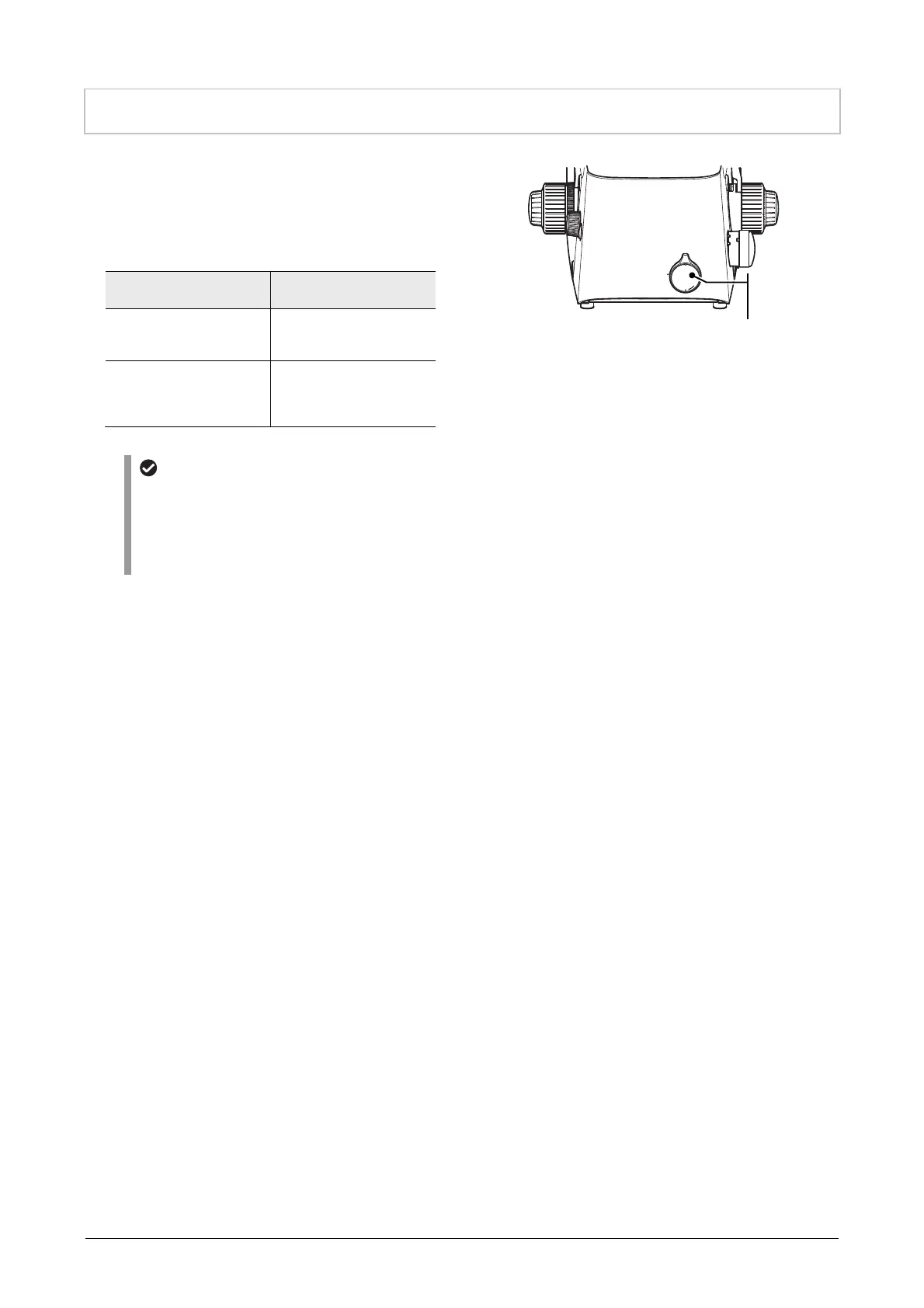

3.2.2 Switching the Magnification of the Device with the Intermediate
Magnification Dial
By removing and inserting the 2nd tube lens inside
the microscope, switch the magnification of the
device in the microscope between 1.0x (actual
magnification of the objective) and 1.5x (magnifica-
tion of the objective x 1.5).
 Operation:
Intermediate
magnification dial
Magnification of the
device
Turn in the opposite
direction of the arrow
(vertical upward)
1x
Turn in the direction of
the arrow until “1.5x”
aligns with the index mark
(sideways)
1.5x
1.5x
Device magnification changeover
Using the intermediate magnification dial
• The settings of the intermediate magnification dial are valid for all optical image output ports (except the
optional back port).
• By replacing the 2nd tube lens inside the microscope, the magnification when the intermediate
magnification dial is rotated to 2.0x can be changed. For replacement of the 2nd tube lens, contact you
r
local Nikon representative.
Intermediate
magnification
dial
