Chapter 7 Assembly of the Devices
146

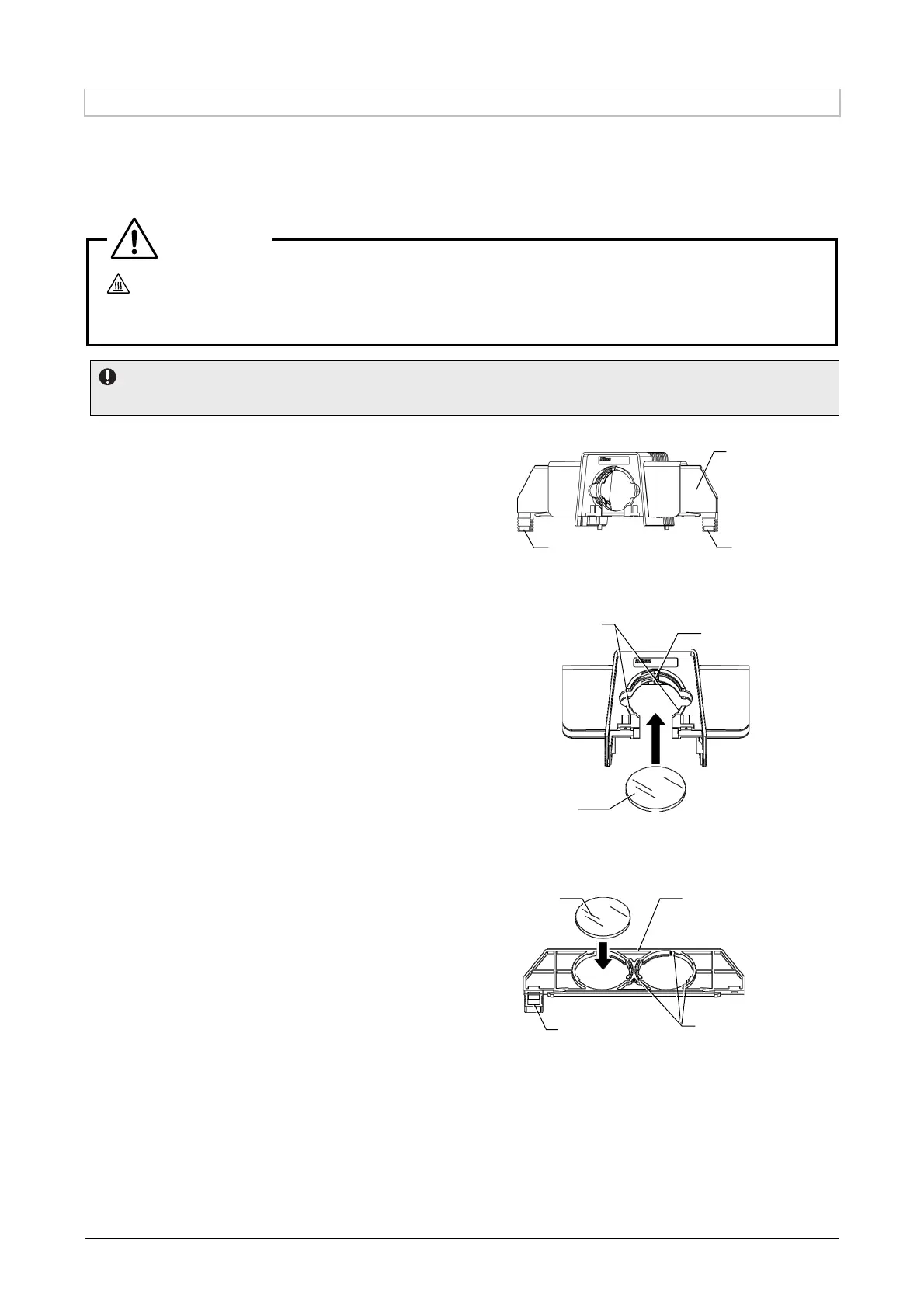

7.8.4 Attaching a Filter Slider for Dia Illumination (Optional)
Desired filters can be attached to the TI2-D-SF filter slider for dia illumination. (Tool: 2 mm hexagonal
screwdriver, supplied with the microscope main body)
The filter slider for dia-illumination is an option that is recommended when a D-LH/LC precentered
lamphouse is used for dia-illumination.
CAUTION
Precautions against heat:
Do not touch the precentered lamphouse while the lamp is lit and for approximately 30 minutes after it has
been turned off.
Handling of the optical components
Do not touch the surface of optical components such as the filter with bare hands.
1. Remove the slider portion from the filter
slider for dia illumination.
The stoppers at both ends are used to limit the
sliding movement of the slider portion.
Press the stopper on the side opposite to the
knob to release the lock to remove the slider
portion from the slot. Pulling the slider portion
forcibly might damage the stopper.
Removing the slider portion
2. Attach fixed filters inside the cover.
Two filters can be attached inside the cover.
The filter mounting hole inside the cover has
three stoppers to keep the filter from falling.
Attach the filter while pinching the movable
stopper on the upper side.
Attaching a fixed filter
3. Attach a required filter to the slider portion.
Attach the slider portion starting with its reverse
surface.
The mounting hole has three stoppers to keep
the filter from falling, and one of them can be
shifted sideways. Shift this stopper to attach the
filter.
4. Affix the label indicating the filter type on the
knob of the slider portion.
Attaching a filter
Slider portion
Knob Knob
Pinch this stopper.
Filte
r
Stoppers to keep the
filter from falling
Knob
Filte
r
Slider (reverse)
Stoppers to keep the
filter from falling
