Chapter 1 Names of Parts and Their Functions
6

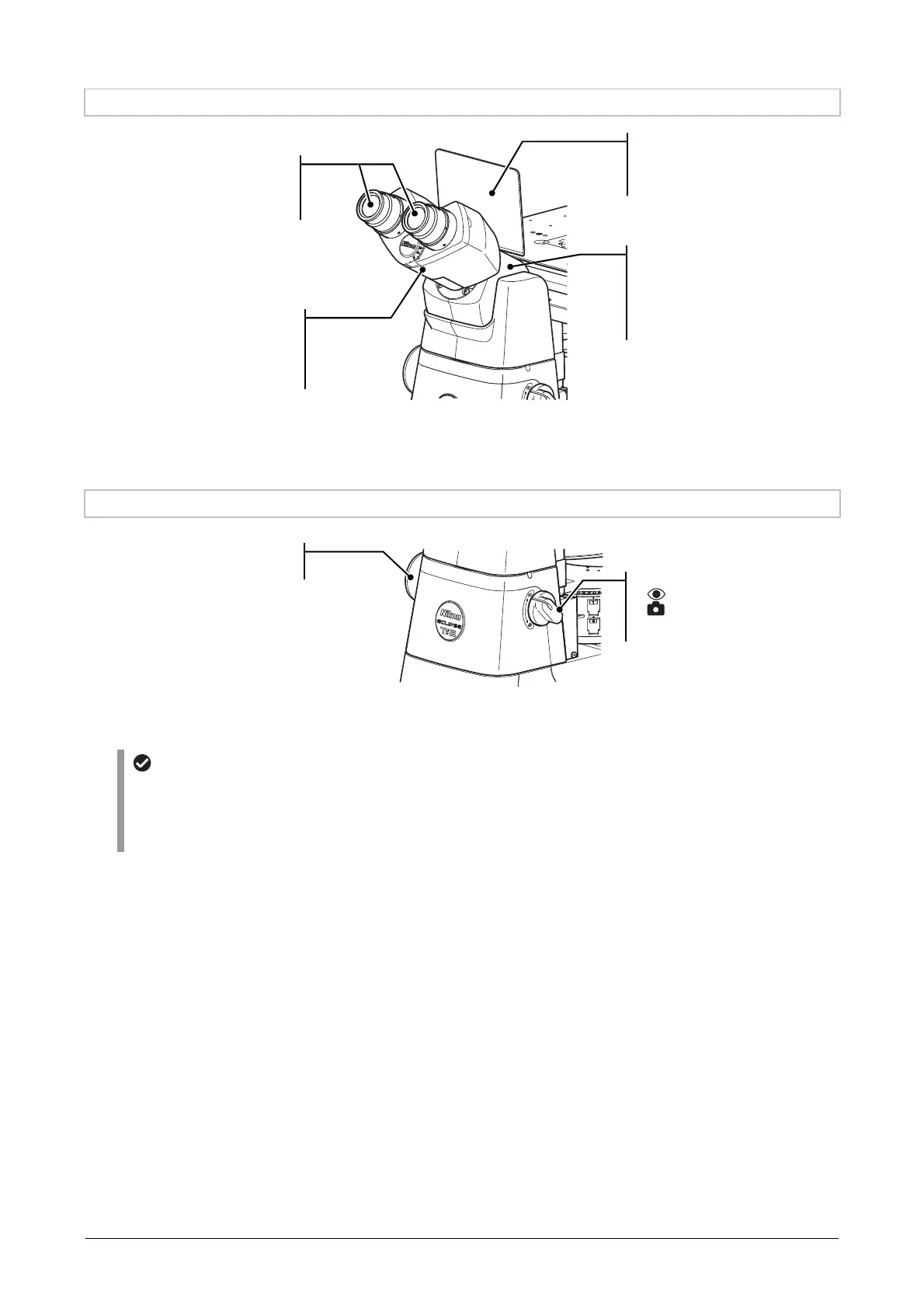

1.2.3 Tube and Eyepiece
Tube and eyepiece
1.2.4 Tube Base Unit
Tube base unit
Side port of the tube base unit
• To mount the camera on the tube base unit side port, the C mount adapter (optional) is required.
• The optical magnification in case where a camera is mounted to the side port depends on the adapter in
use.
Use a required adapter.
Binocular part
The distance between the eyepieces
can be adjusted according to the
interpupillary distance of the user.
(
☞
3.6.3)
Angle adjustment mechanism (ER
tube)
The angle of the binocular part can be
adjusted in the range of 15 to 45
degrees.
(
☞
3.6.1)
Eyepiece
Diopter can be adjusted according to
the observer's eyesight.
(
☞
3.6.2)
Ultraviolet light shielding plate
This plate prevents ultraviolet light
or strong light emitted from the
objective from entering your eyes.
Tube base optical path changeover knob
• (EYE): Eyepiece observation port
• (CAMERA): Side port
(
☞
3.7.1)
Tube base unit side port
(
☞
3.7.1)
