Chapter 3 Usage of Components
59

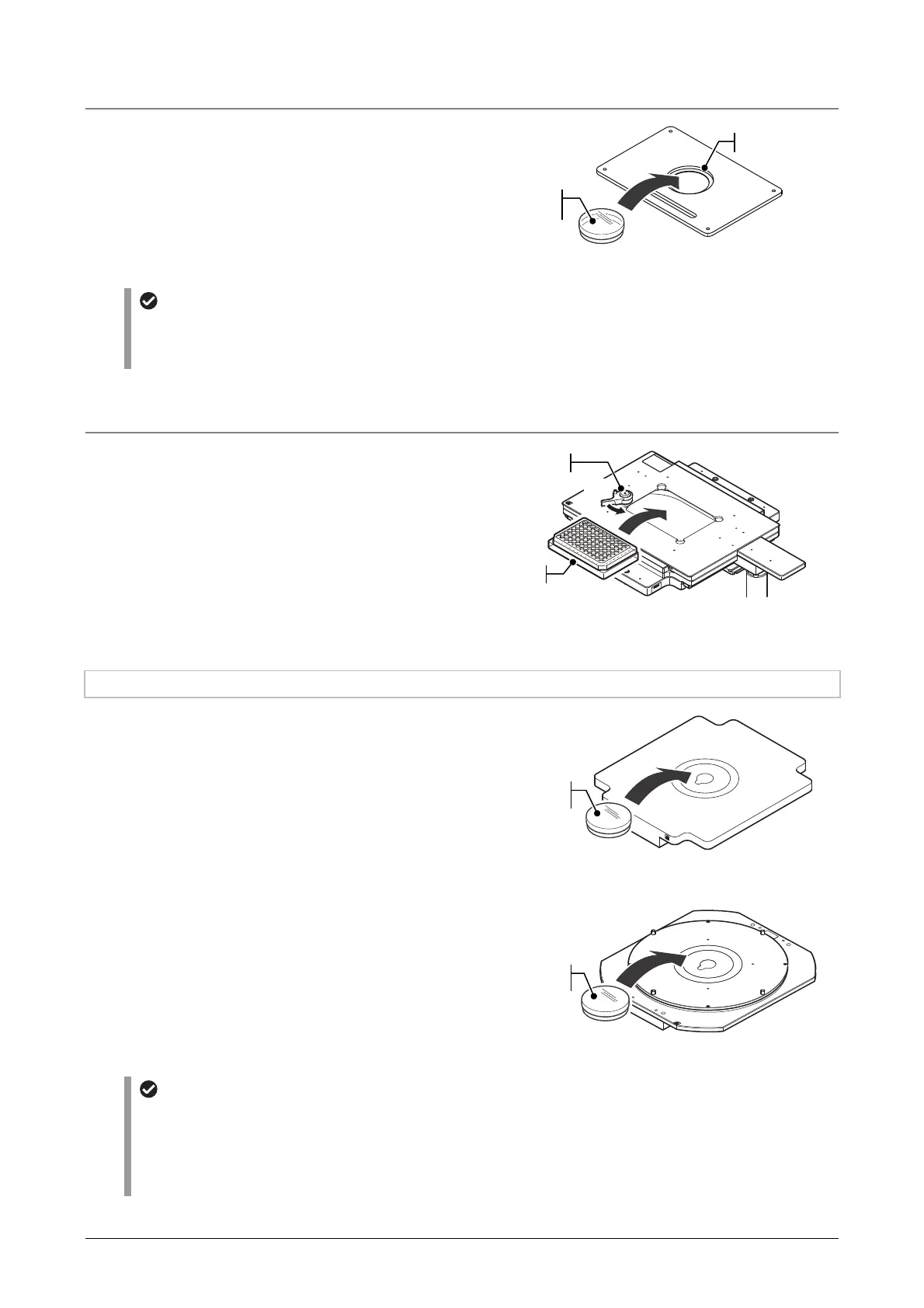

Using the 35-mm-diameter petri dish holder
This holder is for use with 35-mm-diameter petri
dishes.
Operation:
• Insert the 35 mm petri dish into the central hole.
• Use an optional stage clip to fix the specimen,
as required.
Using the 35 mm diameter Petri dish holder
Oil and water immersion operation using a petridish holder 35mm
The petridish holder 35mm has an elongated slot in front through which oil and water immersion of the
objective is possible. Hold the nosepiece by hand so that the tip of the objective positions below the hole,
and perform oil or water immersion.
Using the well clamper
Place the well plate directly on the holder section of
the manual stage, and fix the well plate with the
optional well clamper.
Operation:
• Open the well clamper, correctly orientate the
well plate, and place it on the holder section of
the stage.
• Close the well clamper gently and fix the well
plate.
Using the well clamper
3.8.2 Setting a Sample on the Plain Stage/Gliding Stage
Various types of stage rings can be mounted on the
TI-SP Plain Stage and the TC-S-GR Gliding Stage.
Operation:
• Put a petri dish or a glass slide (prepared
specimen slide) on the stage ring.
• When using a gliding stage, use an optional
stage clip to fix the specimen, as required.
Setting a sample (plain stage)
Setting a sample (gliding stage)
Reapplying the oil when using a stage ring
If the stage ring has a notch for lubrication, an oil-immersing operation can be performed without taking out
a vessel such as a petri dish from the stage.
Set the notch of the stage ring so that the notch matches the rotational direction of the nosepiece. Then,
manually affix the nosepiece so that the objective is positioned at the notch, and perform oil-immersion
operation.
35 mm
petri dish
Fit it into the hole.
Well clampe
Well plate
Fix
Petri dish, glass slide
Petri dish, glass slide
