Nikon ECLIPSE Ti2-U User Manual

Chapter 7 Assembly of the Devices
157
7.11.3 Attaching an ELWD-S Condenser
Attach an ELWD-S condenser TE-C to the condenser mount of the illumination pillar. (Tool: 2 mm hexagonal
screwdriver, supplied with the microscope main body)
1. Insert the round dovetail of the ELWD-S
condenser into the bottom of the condenser
holder, and affix it by tightening the con-
denser clamp screw using a hexagonal
screwdriver.
Slide the condenser turret from the front to
mount the turret so that the position display of
the TE-C ELWD-S condenser faces the front
(toward the observer).
7.11.4 Attaching a DF Condenser
Attach a TI-DF dark-field condenser adapter and a DF condenser to the condenser mount of the illumination
pillar. (Tool: 2 mm hexagonal screwdriver, supplied with the microscope main body)
1. Insert the round dovetail joint of the
condenser adapter into the bottom of the
condenser holder, and affix the joint by
tightening the condenser clamp screw using
a hexagonal screwdriver.
Attach the condenser adapter by sliding it in
from the front.
2. Insert the round dovetail of the DF
condenser into the bottom of the condenser
adapter, and affix it by tightening the clamp
screw using a hexagonal screwdriver.
Attach the DF condenser by sliding it in from
the front.

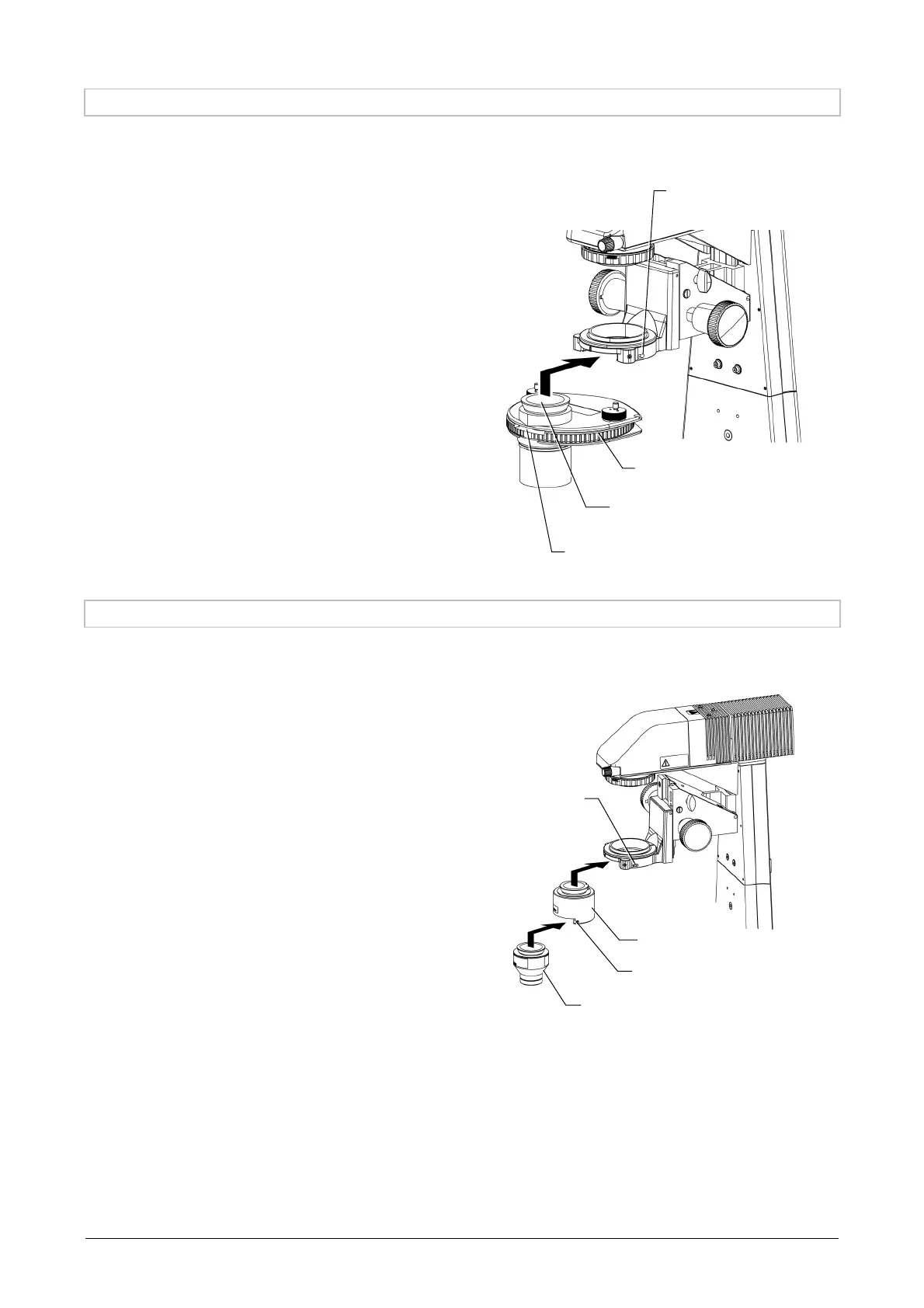

ELWD-S condense
r
Position display
Condenser clamp screw
(in the hole on the side)
Round dovetail joint
Clamp screw
Condenser adapte
r
DF condense
r
Condense
r
clamp screw
