Chapter 3 Usage of Components
30

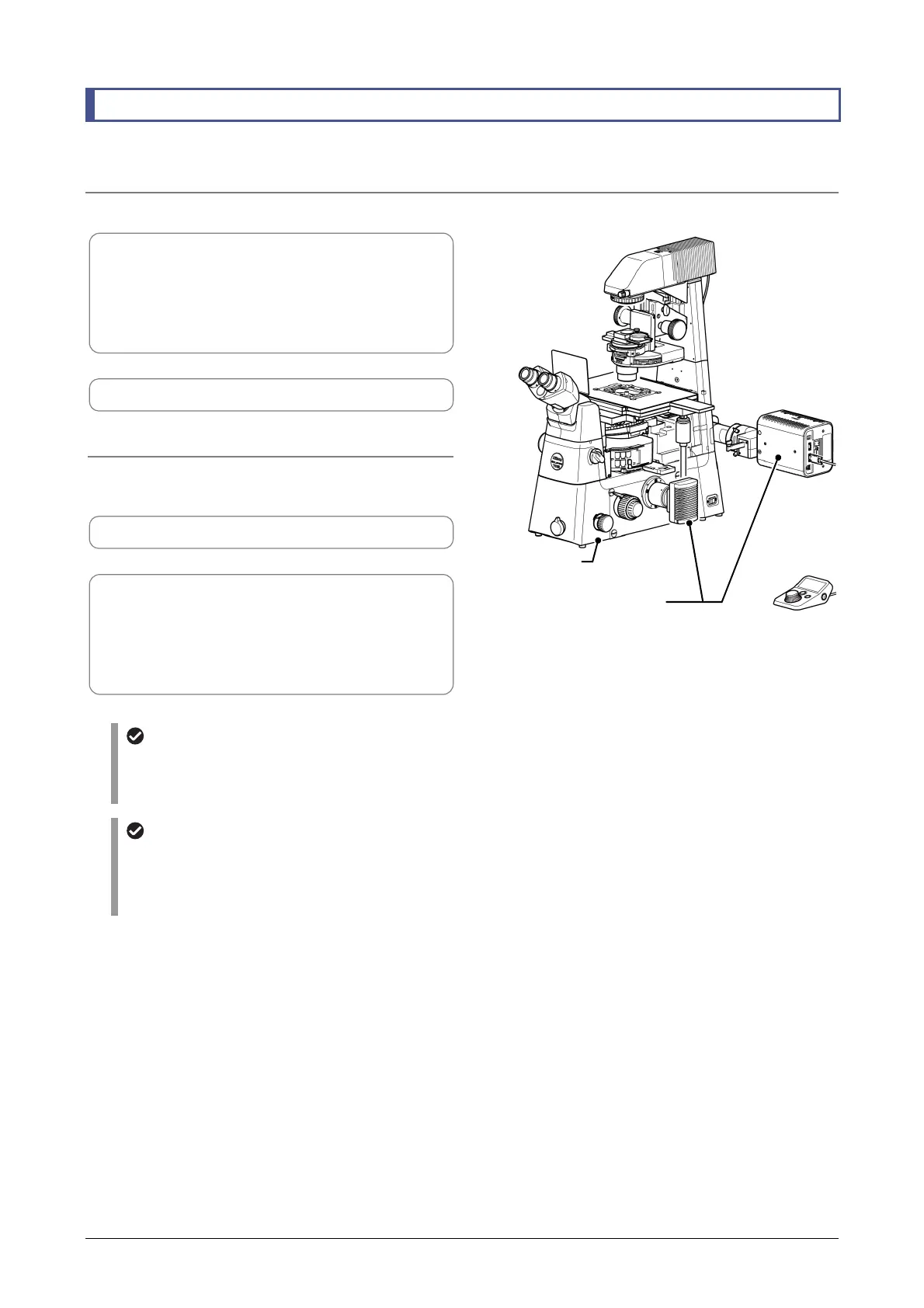

3.1 Power-related Operation
This section describes how to turn on and off the power to the microscope.
Turning on the power to the microscope
When turning on the power to the microscope, follow steps 1 and 2 in order.
▼
Turning off the power to the microscope
When turning off the power to the microscope, follow
steps 1 and 2 in order.
▼
Power-related operation
Power-on order
If the power is not turned on in the correct order, communications between devices might not be correctly
performed, thereby preventing the statuses of devices from being recognized correctly. Make sure to turn on
the power in the above-stated order.
Connecting power supplies and checking the settings of external controls
If a precentered lamphouse is used for dia-illumination, the dia-illumination can be controlled from the Ti2-U
main body by connecting the Ti2-U main body to the power supply for dia-illumination. When controlling the
power supply from the microscope main body, make sure that the Ti2-U main body and the power supply are
correctly connected and that the external control for the power supply is set to ON.
(1) Ti2-U microscope main body
(2) Peripheral devices requiring
dedicated power supply
•
Light source for episcopic illumination
•
Power supply for dia-illumination (when a halogen lamp is used)
•
Motorized shutter controller
•
Digital camera, etc.
(2) Ti2-U microscope main body
(1) Peripheral devices requiring
dedicated power supply
•
Light source for episcopic illumination
•
Power supply for dia-illumination (when a halogen lamp is used)
•
Motorized shutter controller
•
Digital camera, etc.
Peripheral devices requiring
dedicated power supply
•
Digital camera
•
Light source for episcopic
illumination
Ti2-U microscope
main body
