Nikon ECLIPSE Ti2-U User Manual

Chapter 3 Usage of Components
45

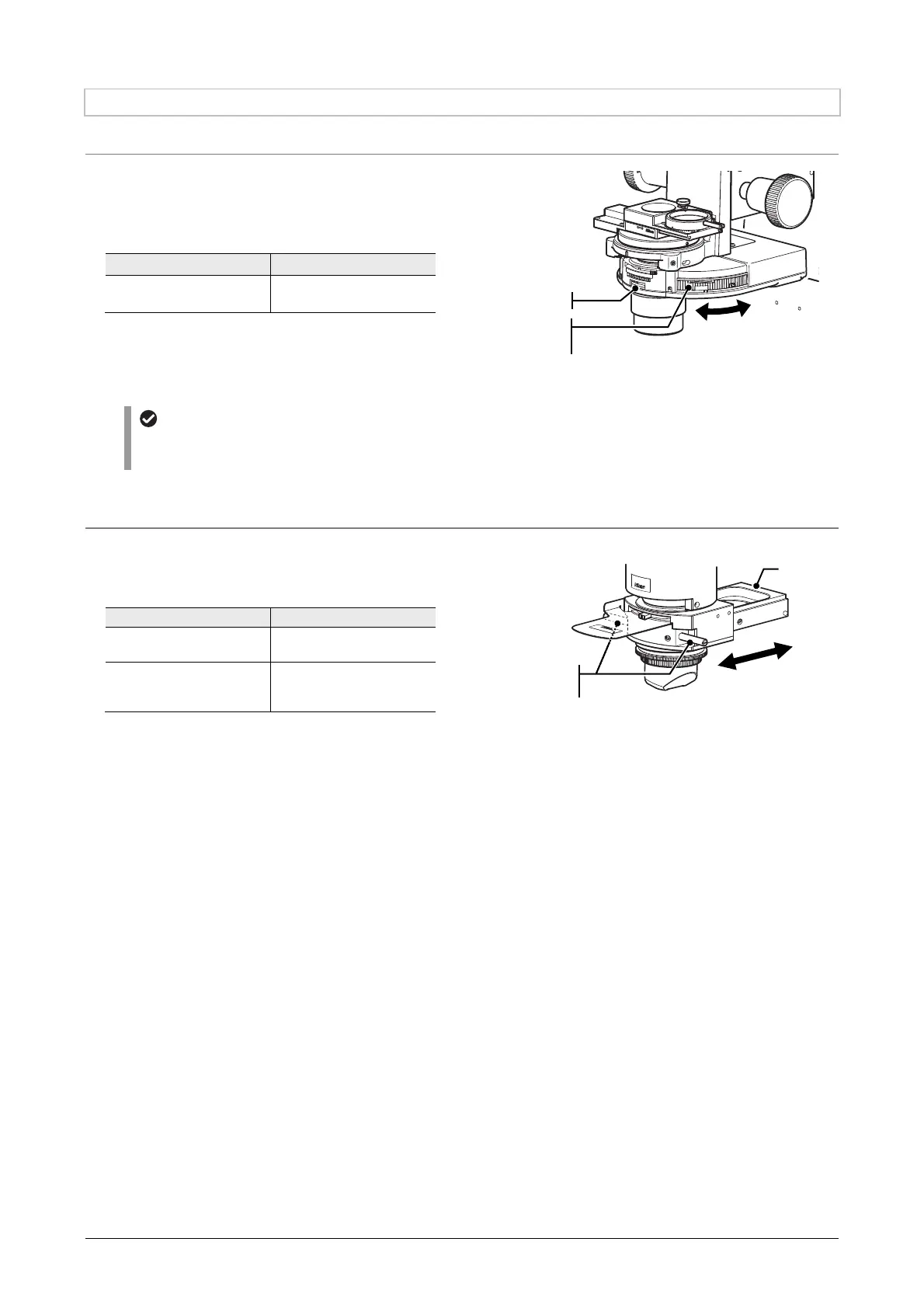

3.4.6 Switching the Condenser Module
Condenser turret (system condenser)
Shutter addresses on the condenser turret
By attaching the light shielding plate module supplied with the condenser turret to the designated address,
it can be used as a condenser shutter.
HNA condenser slider
To switch the condenser module, move the HNA
condenser slider back and forth.
 Operation:
Slider Condenser module
Push it in to the rear.
The DIC module
enters the optical path.
Pull it out to the front.
The Ph module
(or hollow) enters the
optical path.
Switching modules by the HNA condenser slider
When switching the condenser module, manually
turn the turret ring to place the module into the
optical path.
 Operation:
Turret ring Condenser turret
Turn until it clicks into
position.
The front or rear module
enters the optical path.
The address of the condenser turret in the optical
path can be checked by the position display on
the front surface of the turret.
Switching the module on the condenser turret
Turret ring
(both sides)
Position display
Slider in/out leve
r
s
(both sides)
Slide
r
