Nokia 616 Service Manual

Nokia Customer Care TF4 Technical Information
Company Confidential TFE-4/RV-1
Issue 2.0 Mar/2005 Copyright © 2005 Nokia Corporation. Page 8b-43
Company Confidential

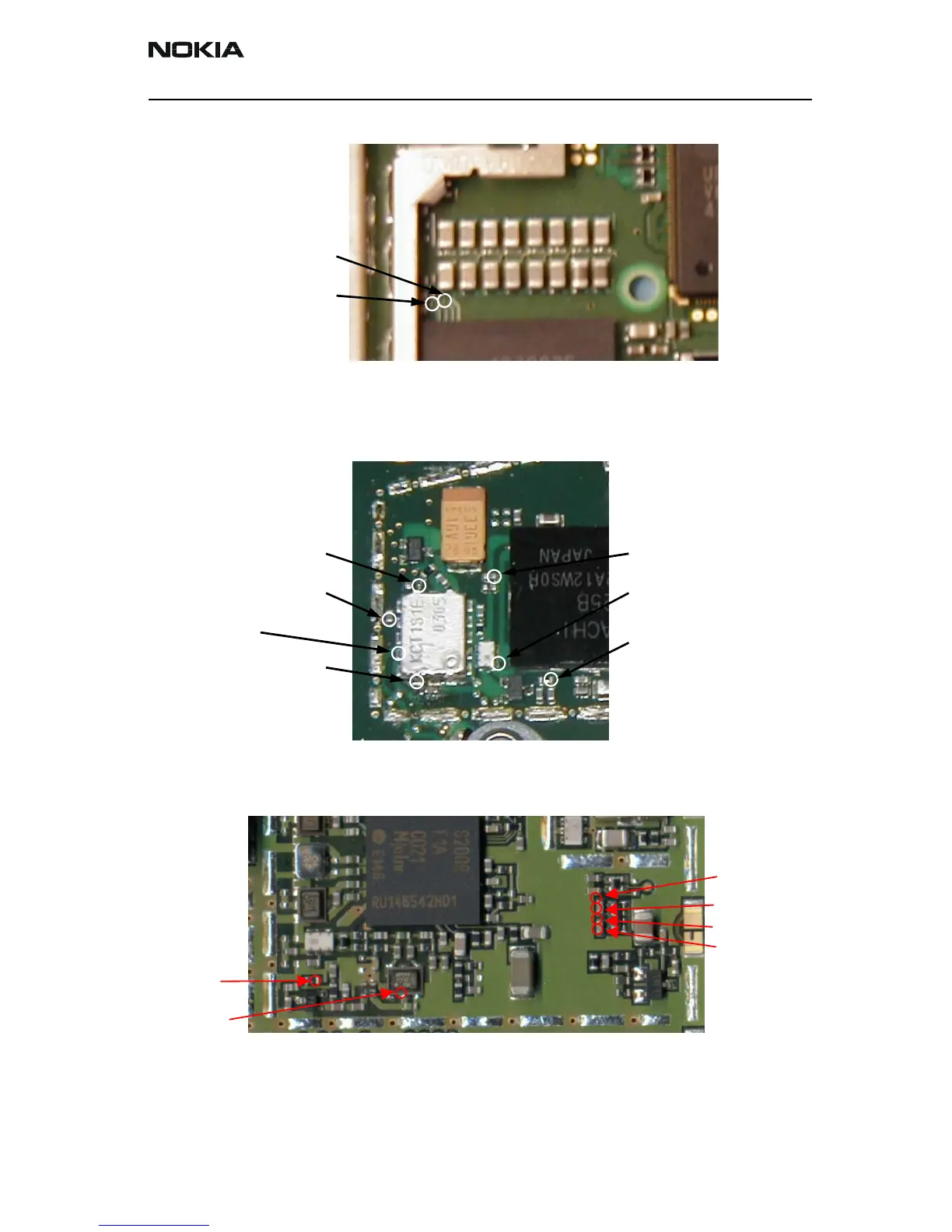

Figure 27: RX measurement points inside BB can (RXIINN, RXQINN)
Measurement points in the transmitter
Figure 28: TX measurement points inside the PA can
Figure 29: TX measurements points inside the Mjölner can
RXIINN (N601)
RXQINN (N601)
CONT1 (VANTM)
CONT2 (VANTH)
ANT
Pout DCS
Pout EGSM
CONT3 (VANTL)
VBD
TXIOUTP
TXIOUTM
TXQOUTP
TXQOUTM
TX_900
VTXB_900
