Nokia 616 Service Manual

TFE-4/RV-1 Company Confidential
2 - Parts List Nokia Customer Care
Page 2-12 Copyright © 2005 Nokia Corporation Issue 2.0 Mar/2005
Company Confidential

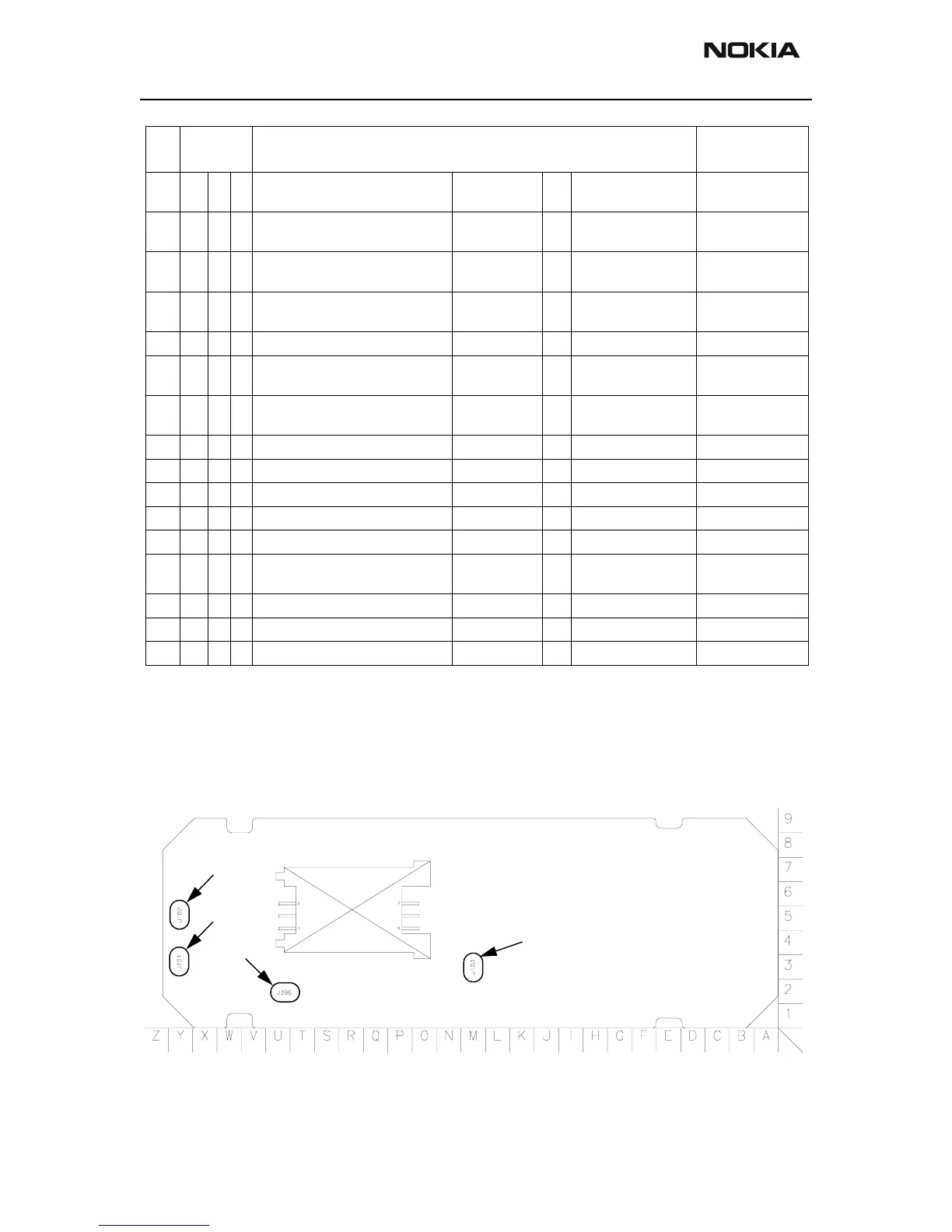

Component layout diagram for the Bottom of the TF4
V101 Top W 6 ZDIX4 TVS/ESD RSA6.1EN 6V1
SOT353
~ ~ ~ SOT323_5L
V102 Top Y 6 ZDIX4 TVS/ESD RSA6.1EN 6V1
SOT353
~ ~ ~ SOT323_5L
V103 Top T 3 SCH DI RB521S-30 200MA 35V
SOD523
~~~ EMD2
V130 Top J 3 BLUETOOTH LRB-2 MCM PHONE
26X13X2
~ ~ ~ BT102_X_BLUETOOT
H
V601 Top L 5 Tr NPN 30V 100mA 100MHz SOT323 ~ ~ ~ SOT323_23
V602 Top B 6 PINDIX2 BAR63-04W 50V 3GHZ
SOT323
~ ~ ~ SOT323
V801 Top D 3 SCH DIX2 HSMS282C 15V <1PF
SOT323
~ ~ ~ SOT323
V802 Top H 5 TR NE68119 ***RESERVED HDB12*** ~ ~ ~ SC75
X387 Bot R 5 Spring Switch SIM CONN 2x2POL ~ ~ ~ SK_200100693300
X602 Top D 2 SM COAX CONN M SW 50R 0.4-2GHZ ~ ~ ~ COAX_SWITCH
X603 Top R 5 ~ ~ ~ ~ FRAME_7_LOIS
X604 Top J 5 ~ ~ ~ ~ FRAME_6_LOIS
Z601 Top B 4 ANT.SW+3SAW 990/1800/1900MHZ
7X5.3
880-960/1710-
1990MHz
~ ~ ANT_SW_LM_T118S
1E2
Z602 Top H 6 SAW FILT 1842.5+-37.5MHZ 2.5X2.0 1842.5MHz ~ ~ FILTER_SAW_SAFSD
Z604 Top H 7 SAW FILT 942.5+-17.5MHZ/3.5 2.5X2 942.5MHz ~ ~ FILTER_SAW_SAFSD
Z701 Top I 5 SAW FILT 897.5+-17.5MHZ/3.5 2.5X2 897.5MHz ~ ~ FILTER_SAW_SAFSD
Item
Location
Side, Grid ref
Description and value Type
J396
J102
J101
J103
