Melter (contd.)
Screen 3: Defaults, IP Address, Pressure Sensor (contd.)
Melter Configuration
If the memory board is replaced or parts relevant to the configuration are
retrofitted, the melter configuration code must be entered twice.
Touch next to the configuration code.
NOTE: The options are shown in the configuration code following the slash.
If no options or no additional options are entered, the software automatically
places an X in the remaining positions.

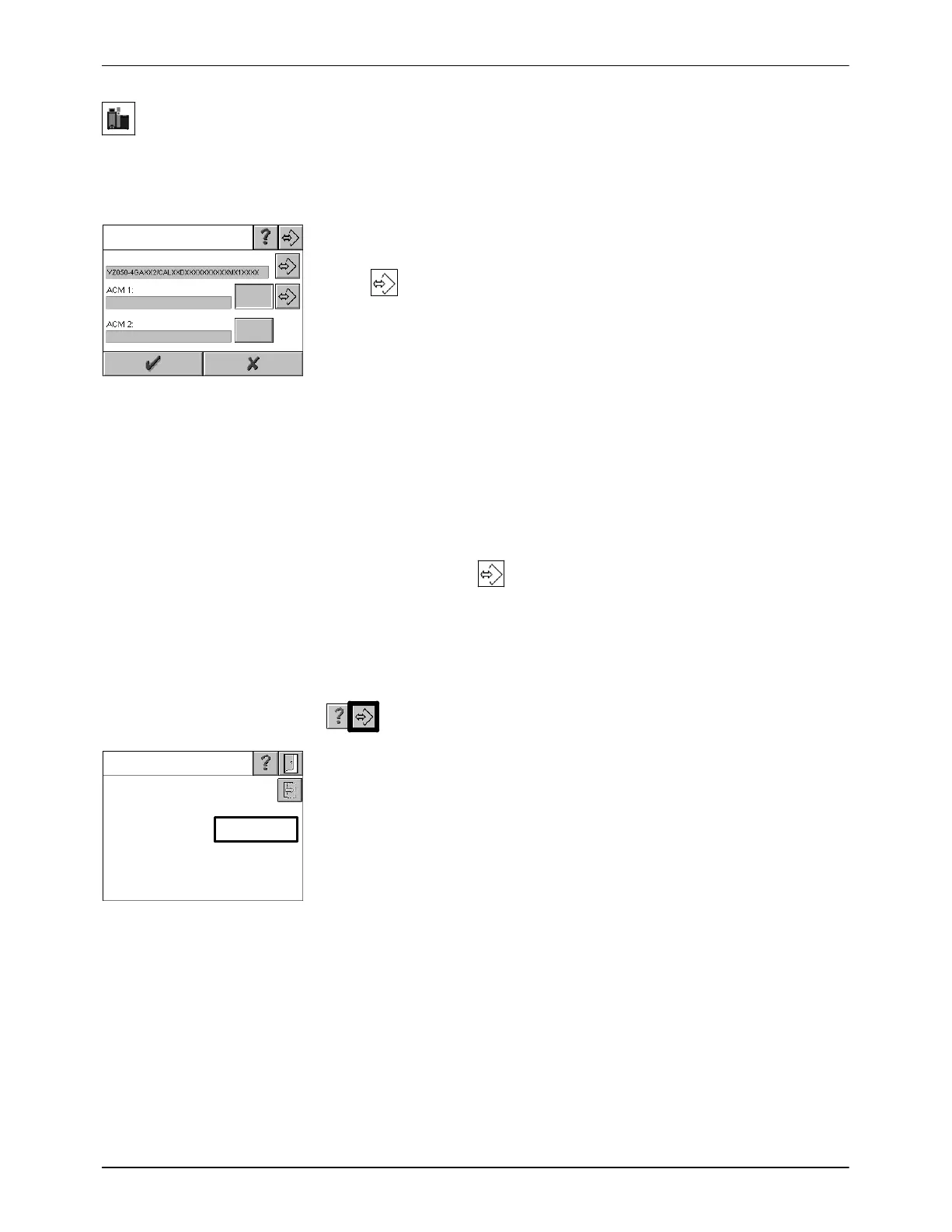

Fig. 4-73 V26
If the two codes entered are the same, the key to confirm is enabled. After
confirmation, the system returns to the overview screen.
NOTE: All of the configurations are saved on the memory board only when
the key Confirm is touched in the overview screen.
Only in Conjunction with ACM
The configuration key
is located behind every ACM that is switched on.
The configuration code must be entered twice in the setup screen.
NOTE: If an ACM is switched off, No ACM replaces the previously
displayed configuration code, even if the ACM is still physically connected to
the melter.
Selecting the Type of Field Bus Data Protocol
Refer to Standard Index Protocol or Extended Index Protocol in the
separate document Field Bus in Nordson Melters with IPC.
CAUTION: The type of protocol selected on the control panel must
correspond to the implementation on the master; the type may not be
changed during field bus operation.
Fig. 4-74 V27
