Installation
3-4
P/N 7105144G
2008 Nordson Corporation
V
ersaBlue_NW

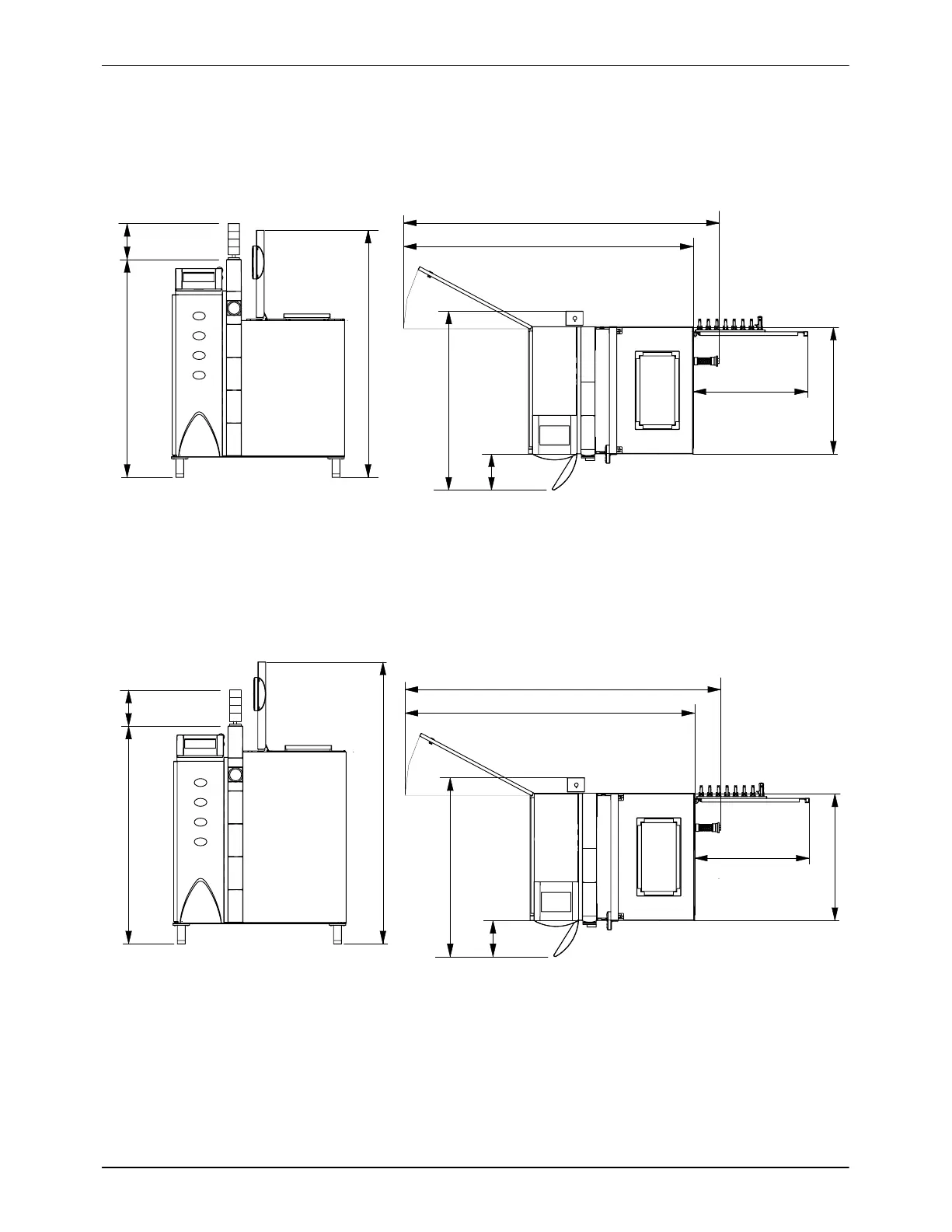

Installation Requirements
(contd.)
Required Space
(contd.)
270
1381
1565
241
764
1
195
1935
21
10
850
Fig. 3-6
T
ypes VD, VE, VY
, VZ
270
1381
1788
241
764
1
195
1935
21
10
850
Fig. 3-7
T
ypes VD, VE, VY
, VZ with tank extension (hopper)
