NFS-3030 Programming Manual P/N 51345:C 11/4/03 15
Section 2 Main Menu
The Main Menu screen is the means by which the programmer can access displays, history
information, printing and programming menus. This screen is accessible from the System Normal
Screen, and from most other screens by pressing the BACK soft key until it displays.

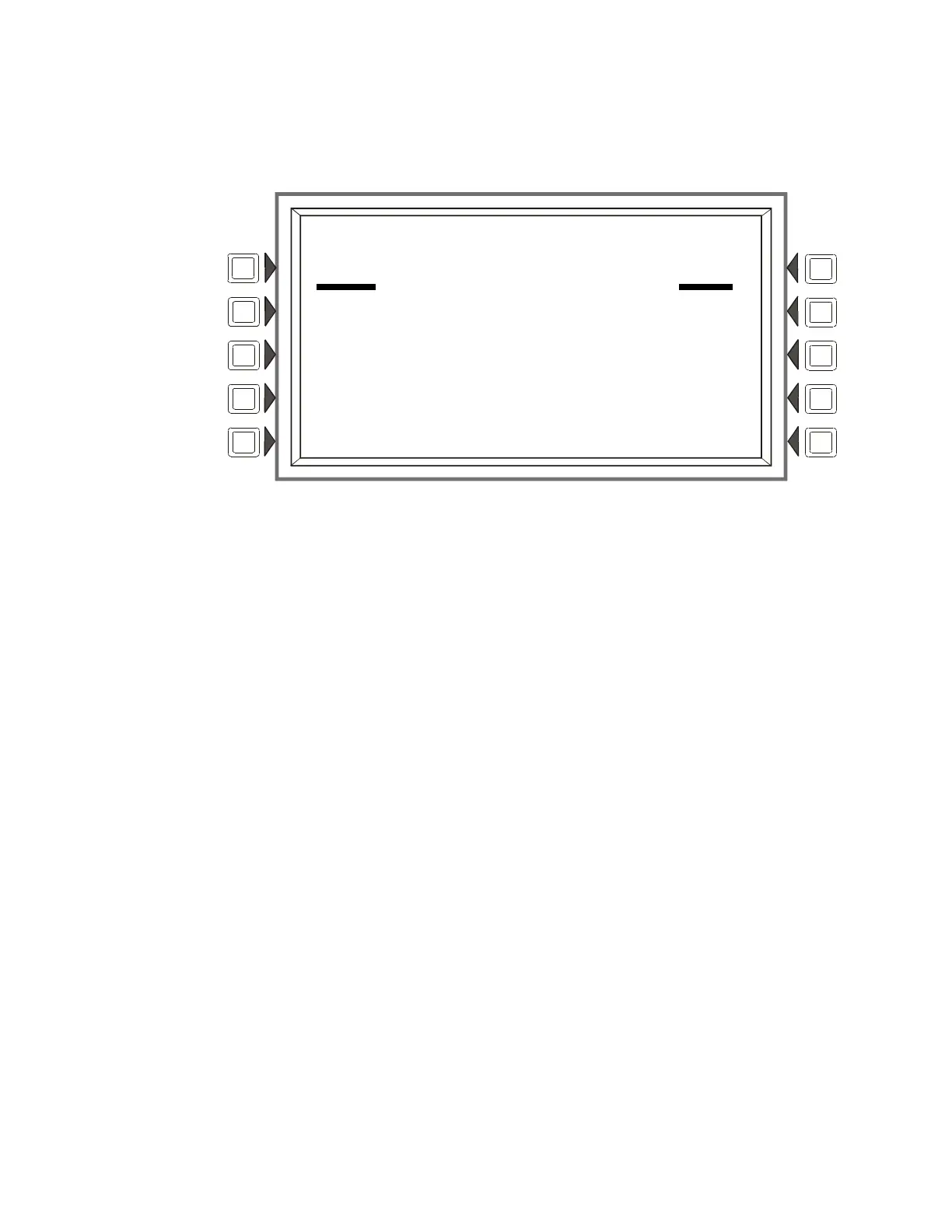

Figure 2.1 Main Menu Screen
Soft Keys
Pressing the soft keys brings the user to the screens described below.
2.1 Event Counts Display
Pressing the EVENT COUNTS DISPLAY soft key on the Main Menu brings up the EVENT
COUNTS screen. This screen will automatically display if an off-normal event requiring
acknowledgement occurs. The display consists of current counts of off-normal events in six
categories: the counts include both acknowledged and unacknowledged events.
Refer to this panel’s operations manual for an illustration and description of the Event Counts
Display.
2.2 Multiple Event List
Pressing the Multiple Event List soft key shows off-normal events simultaneously in groups of eight. It
displays automatically for off-normal events when the Canada event order has been selected. (Refer to
Event Ordering in "Panel Settings" on page 19 for information on display order.)
Refer to this panel’s operations manual for an illustration and description of the Multiple Event
List.
2.3 History Display (History Select Screen)
The History Select screen allows the user to select a type of history file to view, and to set time/date
or point range viewing parameters.
Refer to this panel’s operations manual for an illustration and description of History Display.
2.4 Read Status
Pressing the Read Status soft key brings up screens to view the present status of points, zones, and other
system information. Refer to this panel’s operations manual for a full description of Read Status.
LAKEVIEW GENERAL HOSPITAL
SYSTEM NORMAL
11:58:45A WED JUN 26, 2002
EVENT COUNTS DISPLAY READ STATUS
PROGRAM/ALTER STATUS
MULTIPLE EVENT LIST PRINTER FUNCTIONS
HISTORY DISPLAY BACK
