Releasing Applications Abort Switches
98 NFS-3030 Programming Manual P/N 51345:C 11/4/03
How to Program a Release Form-C Circuit
Note: An output with a REL. FORM C Type Code requires the following selections: a Releasing Zone; an output
circuit mapped to the same Releasing Zone; Switch Inhibit; Non-Silenceable; No Walk Test.
The following contains information needed to program a Release Form-C circuit for an SLC
Form-C relay output module
.
Description An SLC output module, configured as a relay, programmed to activate an output
by opening or closing a switch. Typical applications include closing doors and air
handlers.
Program Select an SLC output module to use as a Releasing Form-C Circuit. While
programming the point (refer to the Point Programming section of this manual for
instructions),
1. Select the
REL. FORM C Type Code,
2. Enter the number of the desired Releasing Zone into the module’s zone map.
The releasing zone must be fully programmed (refer to "Releasing Zone" on
page 46).
Example
A programming example of a control module programmed as a Release Form-C circuit for
Releasing Zone ZR05.

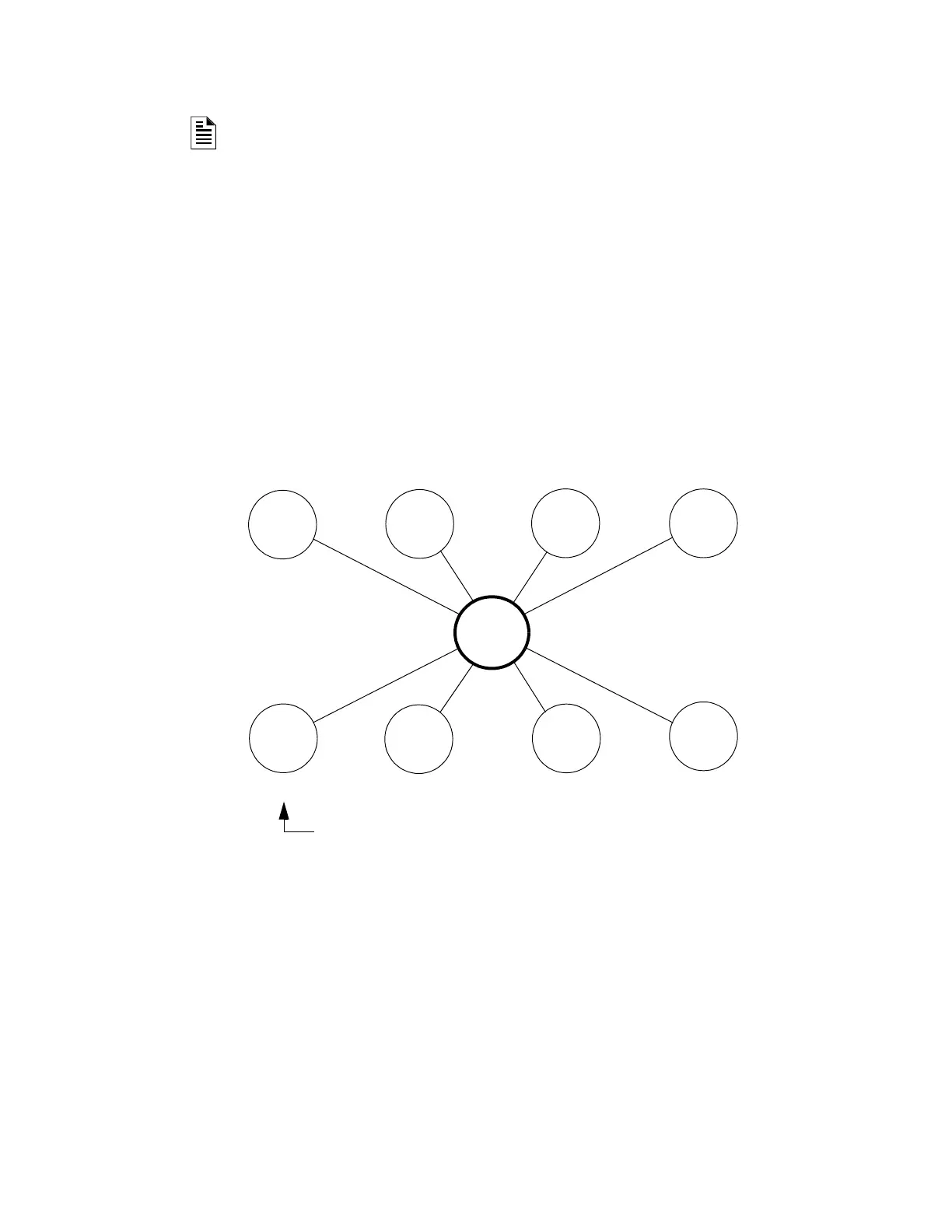

Appendix Figure B-17 Control Module Configured as a Release Form-
C Circuit
Type Code
REL. FORM C
ZR05
Monitor
Module
Detector
Detector
Detector
For example, an output module, configured as a Form-C relay,
activates simultaneously with other outputs (modules A, B & C)
programmed for ZR05.
Type Code
RELEASE CKT
Type Code
RELEASE CKT
Type Code
REL AUDIBLE
SLC
output
module
SLC
output
module
A
SLC
output
module
B
Output
module
C
