Program Point Program
44 NFS-3030 Programming Manual P/N 51345:C 11/4/03
the appropriate selection.
POINT LABEL: Press this soft key to place the cursor at this field. Type in a 20-character
maximum point label that will appear in message formats. If no entry is made, the field will default
to the point address.
EXTENDED LABEL: Press to place the cursor at this field. Type in a 12-character maximum
extended label to further define the location or nature of the point.
MORE: Press to proceed to the next screen for more point programming.
ACCEPT: Press to save entries made on this screen.
Point Programming (2) - Monitor

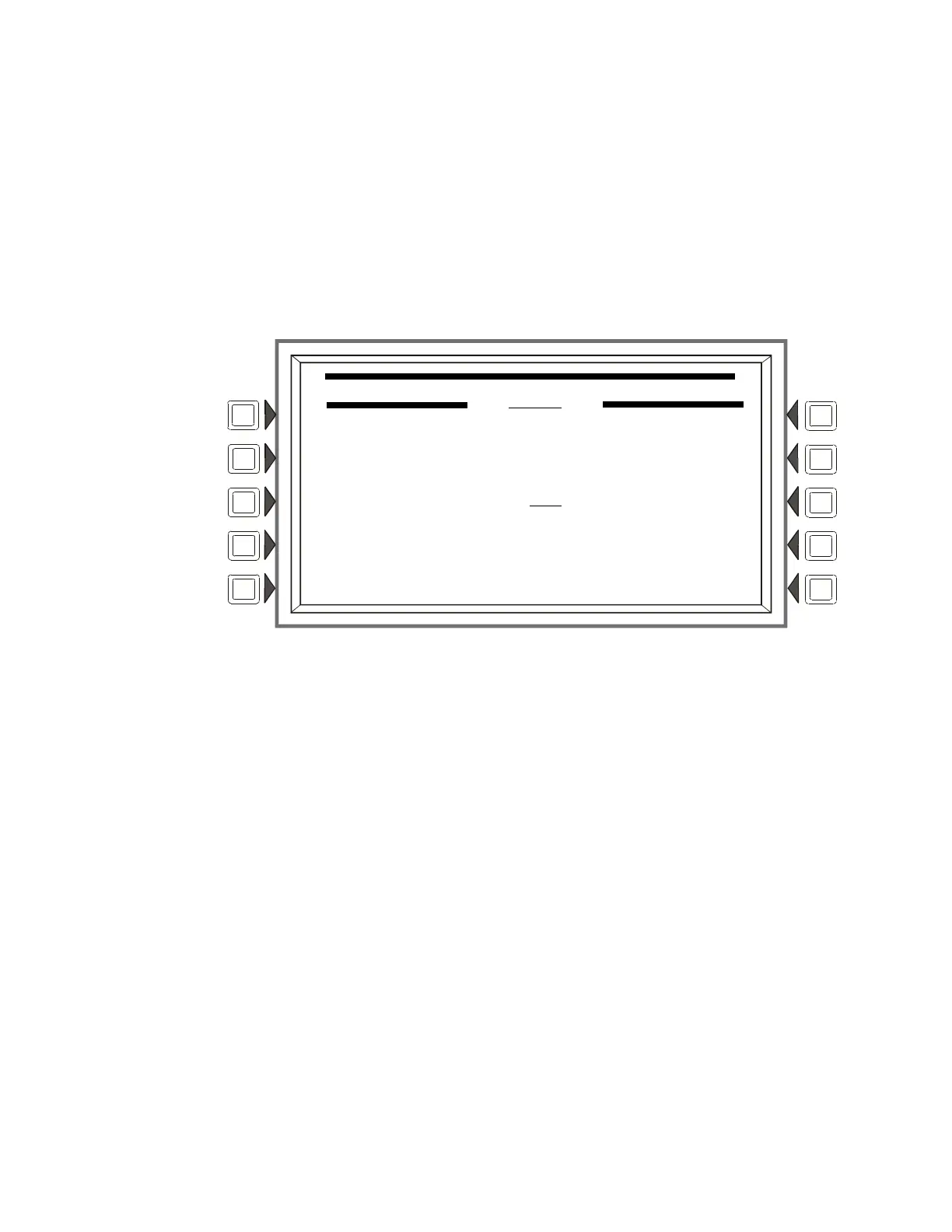

Figure 3.34 Panel Module Point Programming (2) -Monitor - Screen
Soft Keys
CUSTOM ACTION MESSAGE: Displays the custom action message number (a value of one
through 100). The default value is 0 (no message). Press this soft key to progress to the Custom
Action Message screen (shown in Figure 3.26) to view the message or to choose a different
message for viewing when this point activates. (To create a new custom action message, refer to
"Custom Action Message" on page 31.).
ZONE MAP: Displays the zones mapped to this point. The default value assigned to panel circuit
input modules during initial programming is Z011 in the first zone map position.
To add or delete zones, press this soft key to proceed to the Panel Module Zone Map screen. Refer
to "Zone Map" on page 36 for an illustration and explanation of the Detector Zone Map screen. The
Panel Module Zone Map screen is the same except that Panel Module replaces Detector in the title
and the module address appears instead of the detector address. Up to ten general, releasing or
special zones may be mapped to a panel monitor module.
ALARM VERIFICATION: Press this key to determine participation in Alarm Verification.
Choosing Yes will set the device participation to the value entered at the Panel Timers screen
(Figure 3.7).
ACCEPT: Press to save entries made on the screen and return to the previous screen.
PANEL MODULE POINT PROGRAMMING
P10.2
CUSTOM ACTION MESSAGE:020
ZONE MAP:
Z011 , Z104 , Z105 , Z106 , Z107
Z110 , Z114 , Z115 , Z116 , Z117
ALARM VERIFICATION: OFF
ACCEPT
BACK
