Panel Program Program
NFS-3030 Programming Manual P/N 51345:C 11/4/03 25
Note: When using an AMG, the address it occupies (an address of 25 through 32, typically address
32 ) must be set to annunciator type AMG, and address one must be set to annunciator type 64PT.
UDACT and TM-4 communicators are installed on the same EIA-485 ACS circuit as annunciators,
and so are included with annunciator programming. The TM-4 occupies one of the 32 annunciator
addresses, and the UDACT can occupy one or more of these addresses. Other than address
assignment, there is no ACS point programming for these devices. Refer to the specific device
manual for more information.
Press the ACS Programming soft key at the Panel Program screen to invoke the following screen.
Press the up and down arrow keys on the keypad to navigate through the annunciator addresses.
There will be a cursor highlighted at the current annunciator address position.

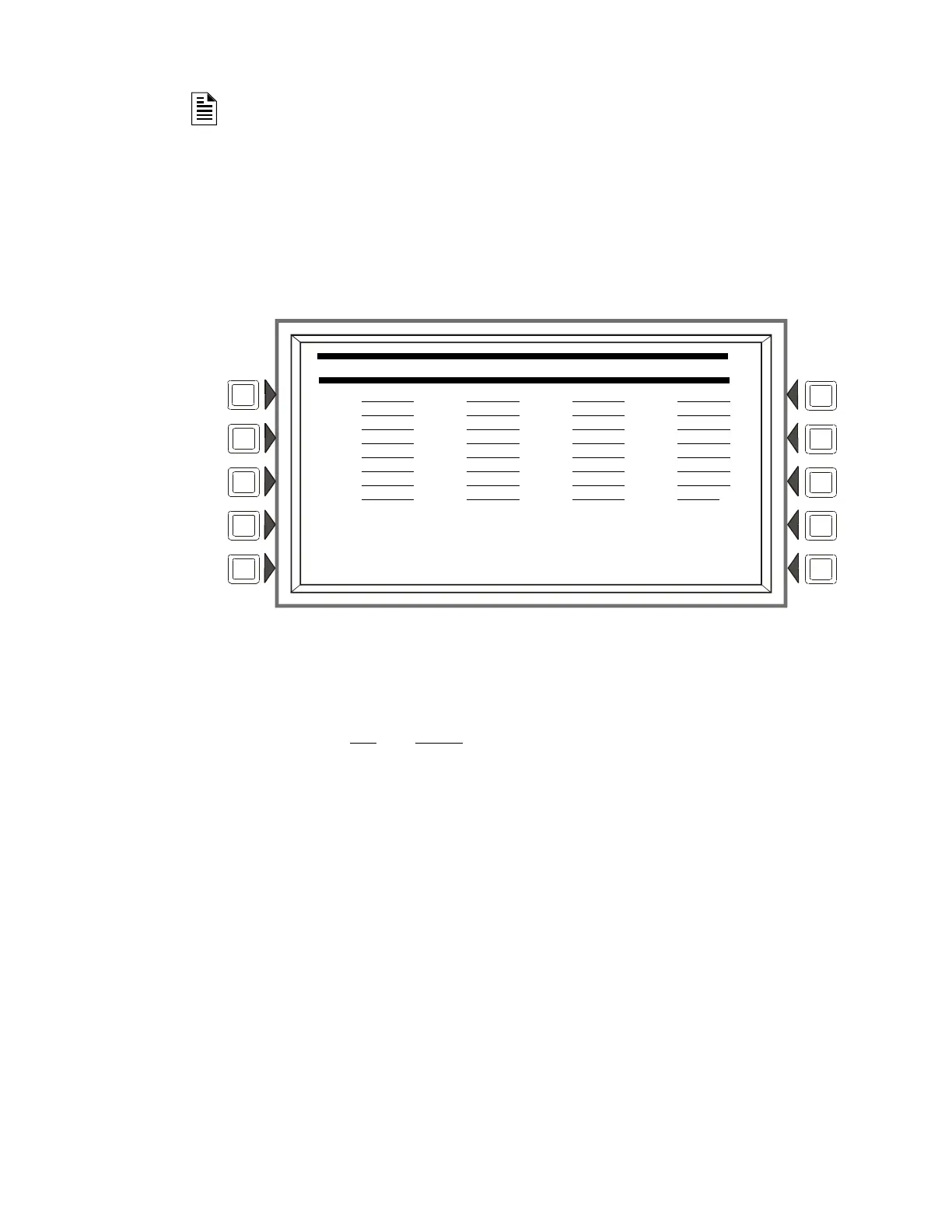

Figure 3.10 ACS Programming Screen
Soft Keys
ANNUNCIATOR TYPE: When the cursor is placed at the desired address, press this soft key to
scroll through the following list of types. Stop at the appropriate type.
POINT PROGRAMMING: Press this soft key to proceed to the ACS Point Programming screen.
ACCEPT: Press this soft key to save all the changes made and return to the previous screen (Panel
Program).
ACS Point Programming
ACS Point Programming can be reached by pressing POINT PROGRAMMING at the ACS
Programming screen. This screen allows the programmer to assign a mode and sources to each
annunciator point at the annunciator address. One ACS input may be used to control multiple panel
circuit or SLC output modules by listing the output points in the SOURCE fields.
Type Used for
64 PT 64 point annunciation
64SYS 64 point annunciation, with first 8 points reserved
96PT 96 point annunciation
96SYS 96 point annunciation, with first 8 points reserved
UDACT UDACT
TM4 TM-4
AMG AMG
FSCS Smoke control modules set for FSCS mode
HVAC Smoke control modules set for HVAC mode
ACS PROGRAMMING
A01:64PT A02:64SYS A03:96PT A04:TM4
A05:UDACT A06:96SYS A07:FSCS A08: NO
A09: NO A10: NO A11: NO A12: NO
A13: NO A14: NO A15: NO A16: NO
A17: NO A18: NO A19: NO A20: NO
A21: NO A22: NO A23: NO A24: NO
A25: NO A26: NO A27: NO A28: NO
A29: NO A30: NO A31: NO A32:AMG
ANNUNCIATOR TYPE ACCEPT
POINT PROGRAMMING BACK
