Releasing Applications Abort Switches
92 NFS-3030 Programming Manual P/N 51345:C 11/4/03
How to Program a Manual Release Delay Switch
The following contains information needed to program a Manual Release Delay switch for a monitor
module.
Description A monitor module—connected to a UL-listed manual station (such as the Notifier
NBG-12LRA)—used to initiate a manual release with 10-second delay time.
A Manual Release Delay switch overrides the FACP programmed Delay Time,
but not Soak Time.
Multiple monitor modules can be programmed with a
MAN REL DELAY type code.
They work like multiple conventional manual release switches on a conventional
zone.
Program
Select a monitor module for the manual release function. While programming
this module (refer to "Module Point" on page 40 for instructions),
1.Select the
MAN REL DELAY type code.
2.Enter the number of the desired releasing zone into the module’s zone map. The
releasing zone must be fully programmed (refer to "Releasing Zone" on page 46).
Example
A programming example of a Monitor module programmed for MAN REL DELAY switch
for Releasing Zone ZR05.

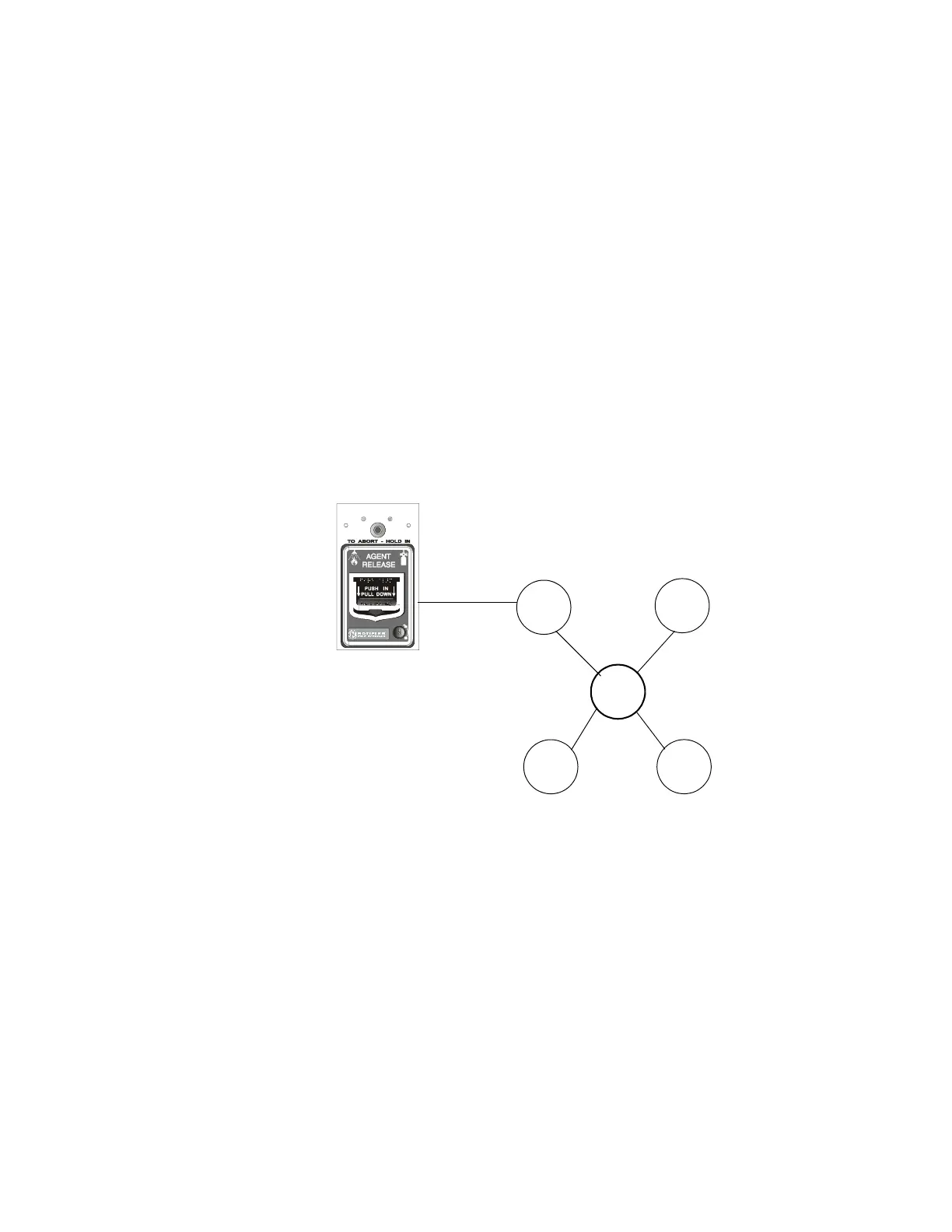

Appendix Figure B-12 Monitor Module Configured as a Manual Release Delay Switch
SYSTEM
NORMAL
SYSTEM
ACTIVATED
Detector
ZR05
NBG-12LRA
station with
Manual Release
Lever
Monitor
Module
Type Code
MAN REL DELAY
SLC
output
module
SLC
output
module
