Abort Switches Releasing Applications
NFS-3030 Programming Manual P/N 51345:C 11/4/03 99
How to Program a Release Audible Circuit
Note: An output with a REL AUDIBLE Type Code requires the following selections: a Releasing Zone; an output
circuit mapped to the same Releasing Zone; Switch Inhibit; Non-Silenceable; No Walk Test.
The following contains information needed to program a Release Audible circuit for an SLC or
Panel Circuit output module
.
Description An output module programmed to activate an audio or visual device when all
releasing outputs, programmed to the same Releasing Zone, turn on. Multiple
outputs with the
REL AUDIBLE Type Code can be mapped to the same Releasing
Zone. When the Releasing Zone activates, all outputs with the
REL AUDIBLE Type
Code activate at the same time.
Program Select a control module or panel circuit module to use as a releasing circuit. While
programming the point (refer to the Point Programming section of this manual for
instructions),
1. Select the
REL AUDIBLE Type Code,
2. Enter the number of the desired Releasing Zone into the module’s zone map.
The releasing zone must be fully programmed (refer to "Releasing Zone" on
page 46).
Example
A programming example of a control module programmed as a Release Audible circuit for
Releasing ZoneZR05.

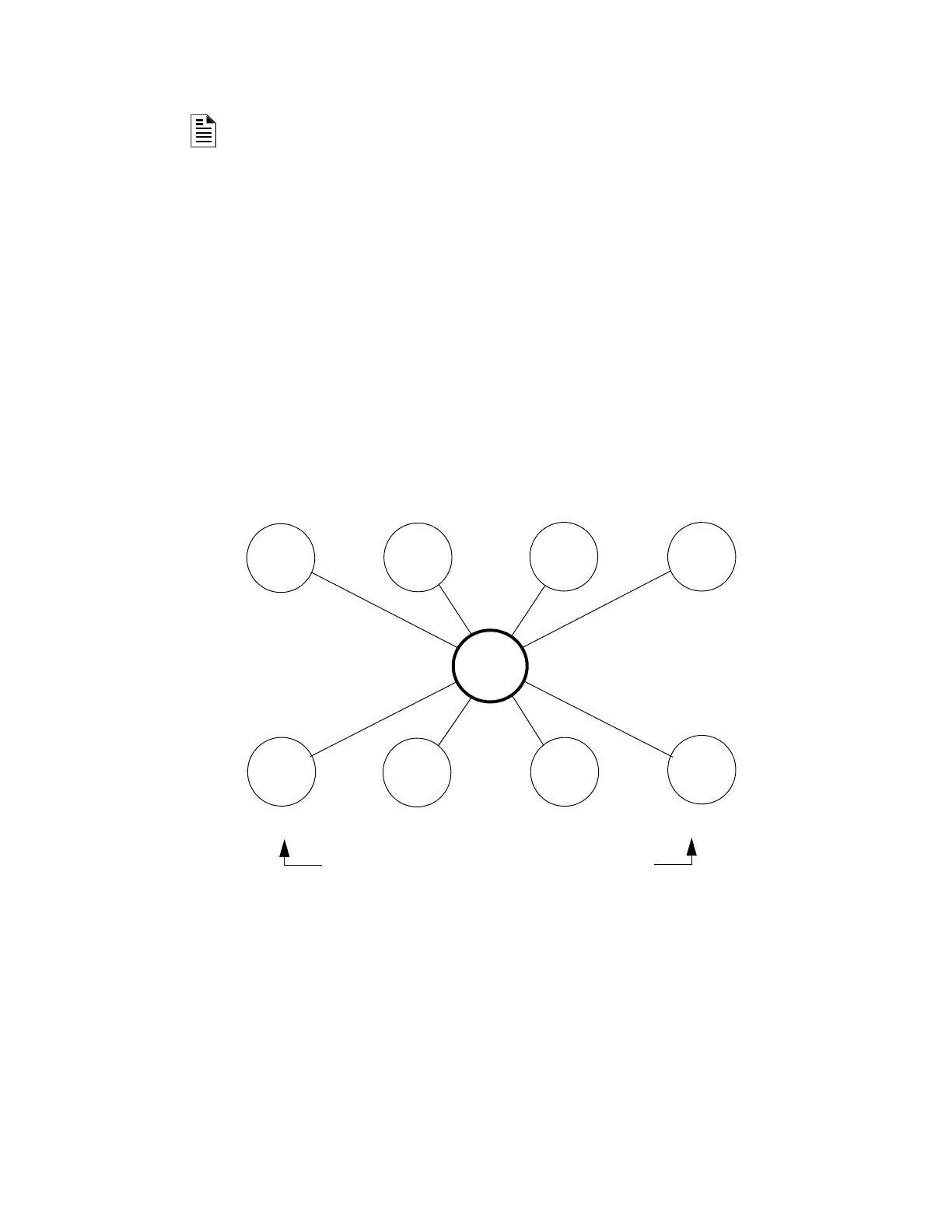

Appendix Figure B-18 Output Module Configured as a Release
Audible Circuit
Type Code
REL AUDIBLE
Type Code
RELEASE CKT
Type Code
RELEASE CKT
Type Code
REL AUDIBLE
For example, an output module programmed with the REL
AUDIBLE Type Code activates simultaneously with other
outputs (modules A & B) programmed for ZR05.
ZR05
Monitor
Module
Detector
Detector
Detector
Output
module
SLC
output
module
A
SLC
output
module
B
Output
module
