Detector Point Programming (2)
Press the MORE soft key on the Detector Point Programming screen to display this screen.

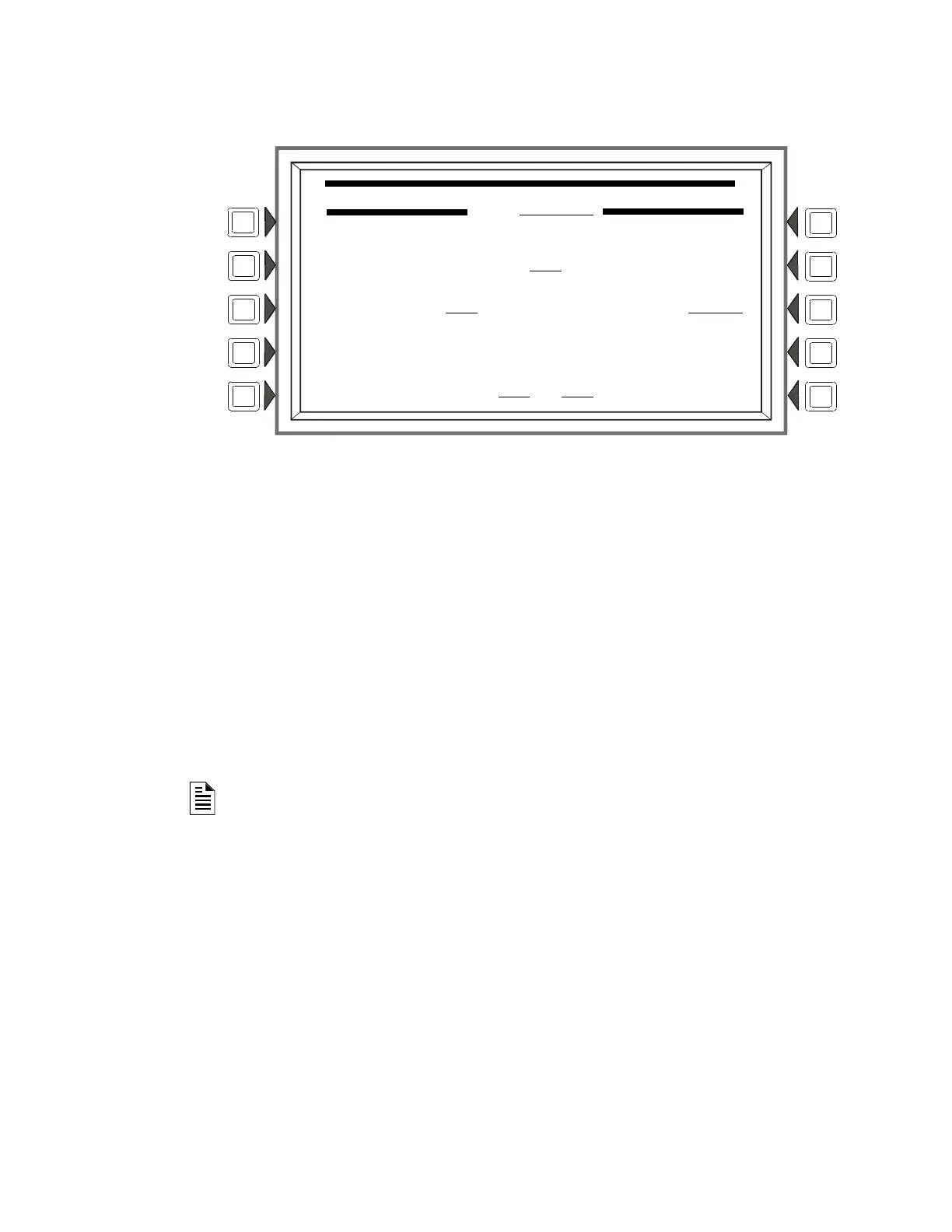

Figure 3.25 More Detector Point Programming (2) Screen
Soft Keys
CUSTOM ACTION MESSAGE: Displays the custom action message number (a value of one
through 100). The default value is 0 (no message). Press this soft key to progress to the Custom
Action Message screen (Figure 3.26) to view the message or to choose a different message for
viewing when this point activates. (To create a new custom action message, refer to "Custom
Action Message" on page 31.)
ALARM VERIFICATION: Press this key to determine the device’s participation in Alarm
Verification. Choosing Yes will set the device participation to the values entered at the Panel
Timers screen (Figure 3.7).
LOCAL MODE: Press to toggle between Local Mode (ON) or no Local Mode (OFF). When there is
a communication loss between the panel and an SLC, the devices on the SLC that have been
selected for Local Mode participation will continue to function in a limited manner. Those input
points on the loop will activate output points of the same type code designation on the loop (that is,
input points with fire alarm type codes will activate output points with fire alarm type codes, etc.).
All detector types on an SLC can participate in local mode.
Note: The panel setting LCM LOCAL MODE must be set to Yes for local mode to work at the device
level.
SENSITIVITY: Press to proceed to the Detector Sensitivity screen.
WEEKLY OCCUPANCY SCHEDULE: To choose an existing weekly occupancy schedule, press this
soft key to proceed to the Detector Occupancy Schedule screen. Refer to “Weekly Occupancy
Schedule” on page 28 for information on how to set up a schedule.
MULTI-DETECTOR: This detector can be linked with up to two detectors at other addresses on
the same loop in cooperative multi-detector sensing if entries are made in these fields. The
detectors need not be sequential in their addresses. Refer to the section on Cooperative Multi-
Detector Sensing in Appendix D: AWACS™ Applications for a description of this function.
PREALARM: Press to select ALERT or ACTION for the Prealarm function. Refer to the section on
Prealarm in Appendix D: AWACS™ Applications for a description of Alert and Action.
Custom Action Message
Press the Custom Action Message soft key on the Detector Point Programming screen to display
DETECTOR POINT PROGRAMMING
L03D123
CUSTOM ACTION MESSAGE:010
ALARM VERIFICATION: OFF
SENSITIVITY
LOCAL MODE: OFF PREALARM:ALERT
WEEKLY OCCUPANCY SCHEDULE:10 ACCEPT
MULTI-DETECTOR: D100, D105 BACK
