Abort Switches Releasing Applications
NFS-3030 Programming Manual P/N 51345:C 11/4/03 95
How to Program a Release End Bell Circuit
Note: A releasing circuit with this Type Code requires the following selections: a Releasing Zone; an output
circuit mapped to the same Releasing Zone; Switch Inhibit; Non-Silenceable; No Walk Test.
The following contains information needed to program a Release End Bell circuit for an SLC or
Panel Circuit output module
.
Description An SLC or panel circuit output module to activate an audible or visual device
when releasing devices shut off. Multiple outputs with the
REL END BELL Type
Code can also be mapped to the same Releasing Zone. When all the Releasing
Zone functions are complete, all outputs with the
REL END BELL Type Code
activate at the same time. A
REL END BELL circuit remains on until the system is
reset.
Program Select an SLC or panel circuit output module to use as a Release End Bell circuit.
While programming the point (refer to the Point Programming section of this
manual for instructions),
1. Select the
REL END BELL Type Code,
2. Enter the number of the desired releasing zone into the module’s zone map.
The releasing zone must be fully programmed (refer to "Releasing Zone" on
page 46).
Example
A programming example of a control module programmed as a Release End Bell for
Releasing Zone ZR05.

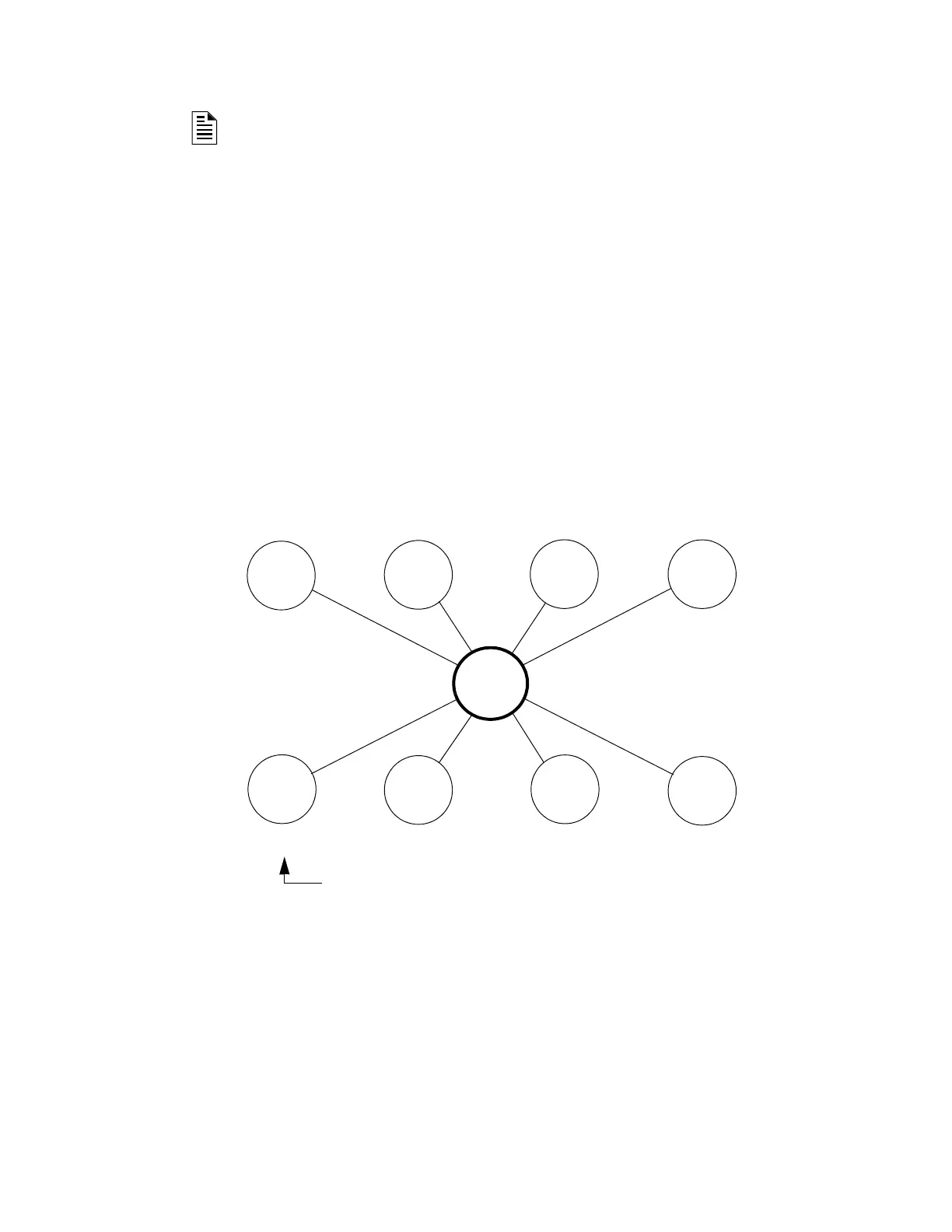

Appendix Figure B-14 Output Module Configured as a Release End
Bell Circuit
Type Code
REL END BELL
Type Code
RELEASE CKT
Type Code
RELEASE CKT
Type Code
REL AUDIBLE
For example, a module programmed with the REL END BELL
Type Code activates when all releasing functions, such as the
releasing functions programmed for ZR05, shut off.
Output
module
Output
module
ZR05
Monitor
Module
Detector
Detector
Detector
SLC
output
module
SLC
output
module
