Panel Program Program
NFS-3030 Programming Manual P/N 51345:C 11/4/03 27
SOURCE: Pressing this soft key will select the Source field and also toggle between display
formats if a point value is allowed. Enter a point or zone, or the panel’s node number if the mode
type is a system function such as acknowledge or reset.
Up to eight sources are allowed when CONTROL mode is chosen.
ACCEPT: Press this soft key to save the changes to the point displayed. The next point address will
appear.
BACK: Press this soft key to exit the screen without saving, and return to the ACS Programming
Screen.
3.2.8 Supervision
From the Panel Program Menu (1), select SUPERVISION to display the following screen.

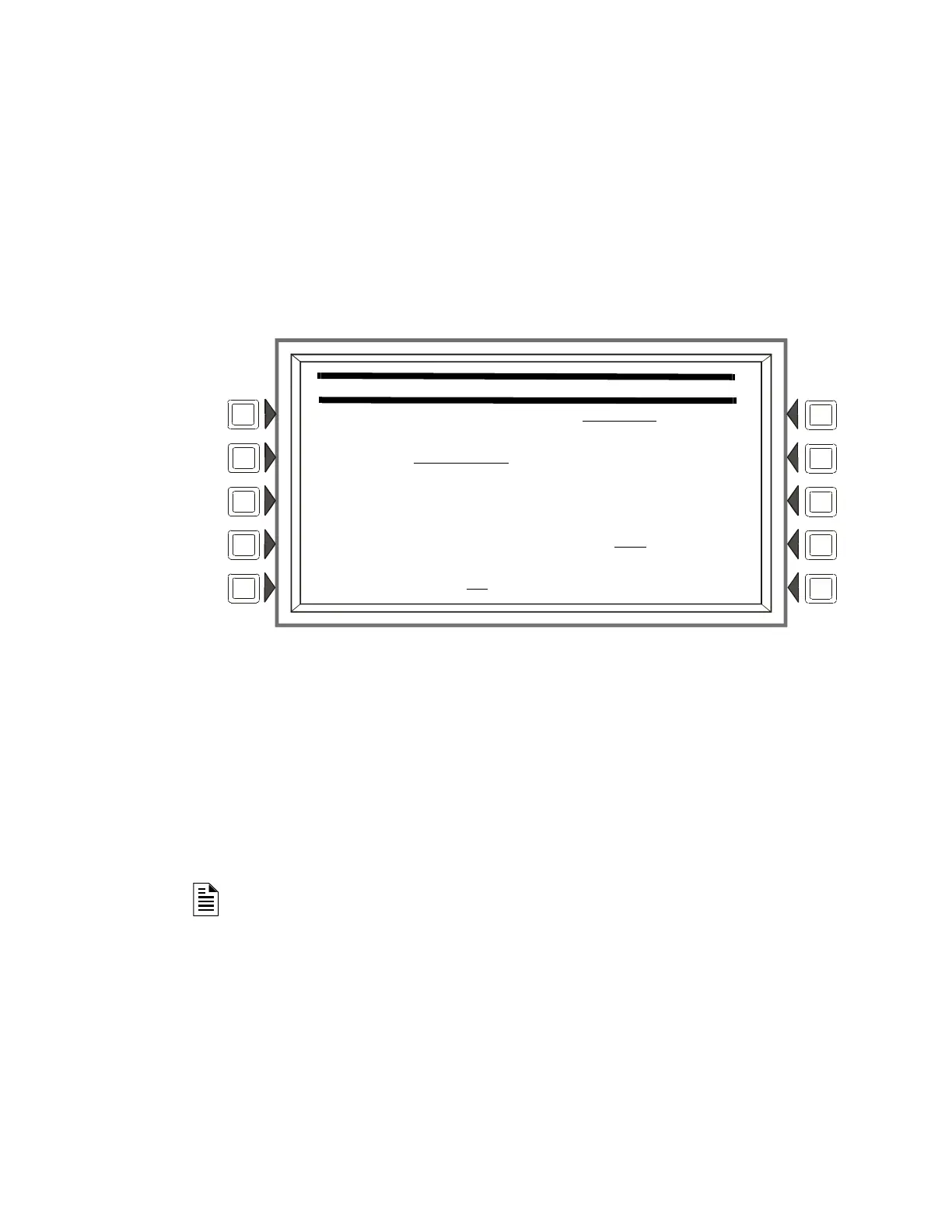

Figure 3.12 Supervision Screen
Soft Keys
MAIN POWER SUPPLY AC FAIL ADDRESS: Press to enter the “Monitor AC Fail” (base plus
one) address of the main power supply. Refer to the main power supply manual for complete
addressing information. Type in the address using the keypad.
The LCD backlight will turn off when this power supply experiences AC failure (see BACKLIGHT
in "LCD Programming" on page 23).
PRINTER: Press to scroll through the types of printer supervision: NONE, 40-COLUMN,
40-COLUMN SUPERVISED, 80-COLUMN, 80-COLUMN SUPERVISED, GRAPHIC, OR
GRAPHIC SUPERVISED. The printer will not be active if NONE is selected. If a SUPERVISED
selection is made, the printer will be supervised. Default: NONE
Note: When changing from an 80-column or 80-column supervised to a graphic or graphic
supervised printer (or vice-versa) , settings must be changed at the printer. Refer to this panel’s
installation manual for the settings.
AUXILIARY TROUBLE REPORTING: Press to toggle between Yes and No. Choose Yes if a
trouble bus cable has been attached at J5 of the CPU-3030. Default: NO
TAMPER INPUT: Press the soft key to toggle between Yes, No, and AKS-1.
Yes/No reports (YES) or does not report (NO) a tamper situation at the panel cabinet door (as
determined by an STS-1 tamper switch connected as shown in this panel’s installation
manual).
AKS-1 should be selected when there is an AKS-1 key switch connected to the panel cabinet
door (which allows the operator to use Signal Silence, Reset, Drill and Acknowledge functions
when a key turns the lock to “Enable”). Default: NO
SUPERVISION
MAIN PS AC FAIL ADDRESS: LXXMXXX
PRINTER: 80-COLUMN
AUXILIARY TROUBLE REPORTING:NO ACCEPT
TAMPER INPUT: NO BACK
