Point Program Program
NFS-3030 Programming Manual P/N 51345:C 11/4/03 35
3.4.1 Detector Point
This screen displays when a detector is chosen at the Point Program menu (see Figure 3.22 on page
34 ).

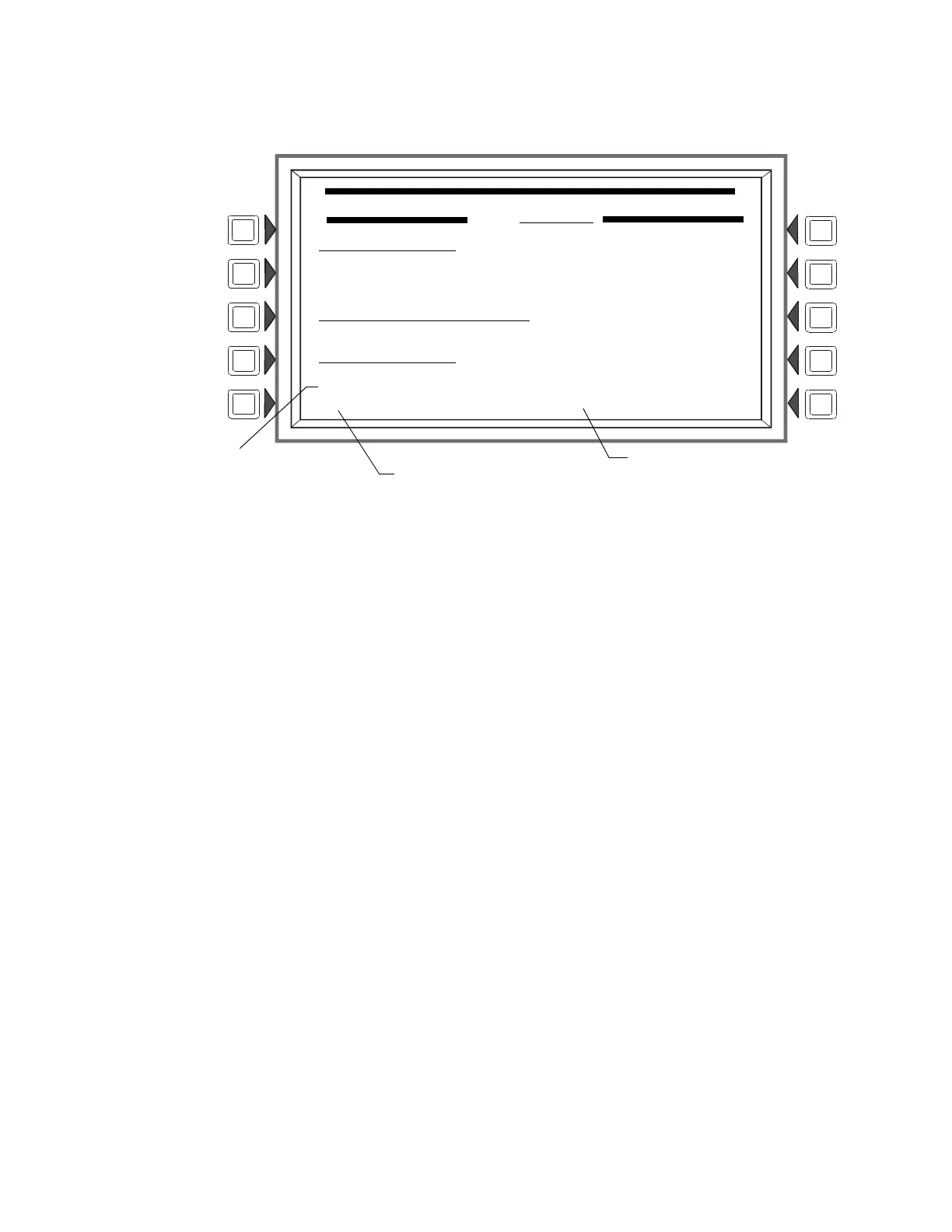

Figure 3.23 Detector Point Programming Screen
The point address is displayed in line 3 of this screen. Existing point information is displayed in the
fields.
Soft Keys
TYPE: Press this soft key to scroll through the point type choices: stop at the appropriate selection.
If a new point is being added, no other field will be displayed until TYPE: is entered and the
ACCEPT soft key is pressed . At this point, the rest of the fields will appear.
FLASHSCAN CODE LABEL: Press to scroll through a list of FlashScan Codes. Stop when the
appropriate label appears (see Appendix Table G-4 on page 127 for codes and descriptions). If the
detector is not a FlashScan type, choose NONE.
POINT LABEL: Press this soft key to place the cursor at this field. Type in a 20-character
maximum point label that will appear in message formats. If no entry is made, the field will default
to the point address.
EXTENDED LABEL: Press to place the cursor at this field. Type in a 12-character maximum
extended label to further define the location or nature of the point.
ZONE MAP: Displays the zones mapped to this point. During initial programming, zone map
position one for each detector is set to Z0YY, where YY represents the loop number where the
detector resides. In Figure 3.23 above, zone position one has a value of Z003 (YY = 03). The
detector in the example resides on loop 3.
To add or delete zones for this point, press this soft key to progress to the Detector Zone Map
screen.
MORE: Press this soft key to progress to the next detector point programming screen.
ACCEPT: Press to accept changes. If the user is adding a point, pressing this soft key after entering
the TYPE field will display all the other fields.
DETECTOR POINT PROGRAMMING
L03D123
TYPE:
SMOKE (PHOTO)
FLASHSCAN TYPE: PHOTO
POINT LABEL:
MORE
EXTENDED LABEL:
ACCEPT
ZONE MAP:
Z003, Z104, Z105, Z106, Z107,
Z110, Z114, Z115, Z116, Z117 BACK
Zone Map position 6
Zone Map position 10Zone Map
position 1 -
(primary zone)
