Releasing Applications Abort Switches
84 NFS-3030 Programming Manual P/N 51345:C 11/4/03

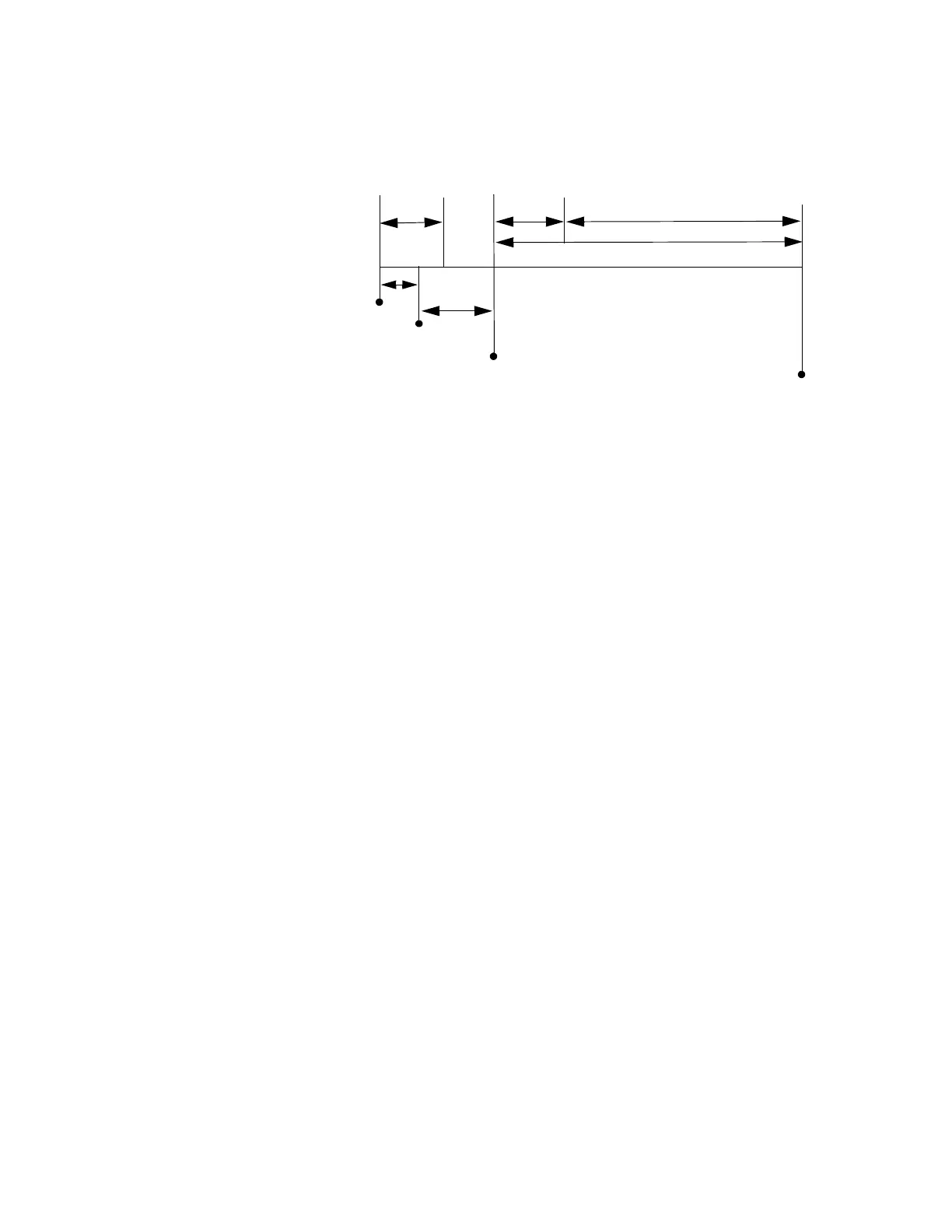

Appendix Figure B-6 NYC Abort Switch -Example 1
Delay Time: 15 seconds
Abort Switch: NYC
Cross Zone: N
Soak Time: 0
Program selections for this releasing zone
Delay=15 sec.
Press and hold
the Abort Switch
When all timers are expired (in this
example, 145 seconds after alarm
initiation, 105 seconds after the Abort
switch has been released) the control
panel activates Releasing Zone outputs
30 sec.
10 sec.
Total time from alarm initiation to release:
10 + 30 + 105 = 145 seconds
Alarm
0 sec.
Release Abort Switch---
At this point, the delay time
becomes the programmed delay
(15 sec.) plus 90 seconds (105
sec.) OR 120 seconds,
whichever is smaller
Delay=15 sec.
NYC Delay=90 sec.
105 sec. (15 + 90). Does not exceed 120 seconds.
