Nuova Simonelli PRONTOBAR - Page 47

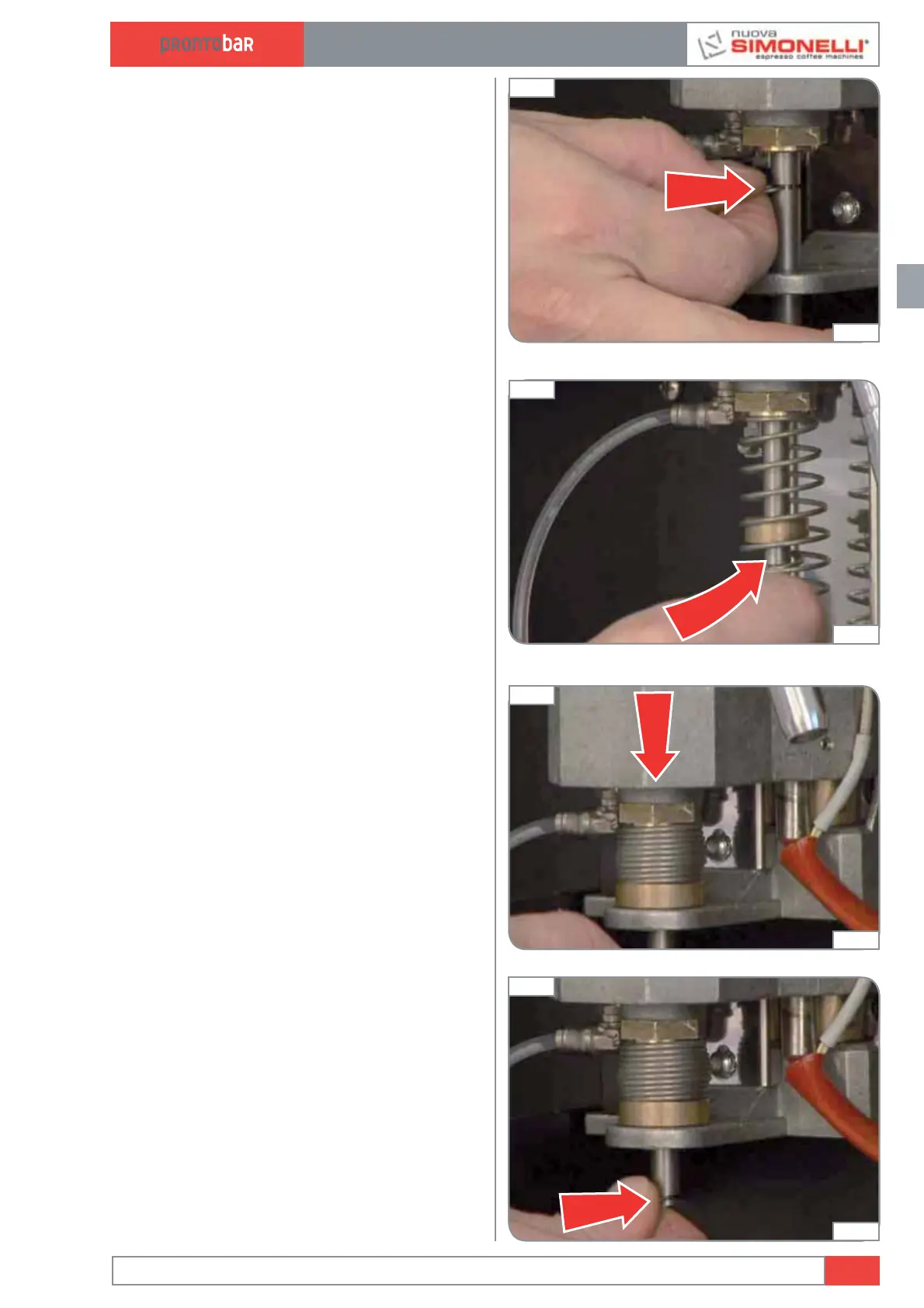

16 Insert the seeger in the middle of the lower
piston shaft.
17 Press the up arrow key and insert the previ-
ously assembled spring.
18 Press the down arrow to lower the chamber.
Let go when the piston is about to enter the
bottom support of the spring.
19 Insert the bottom seeger.
20 Press the buttons up and down arrow to
check if the movement of the lower piston is
free.
Edition 02 to 02/2014
4.7
SERVICE MANUAL
16
Fig. 99
01:58
17
Fig. 100
02:07
18
Fig. 101
02:10
19
Fig. 102
02:12
