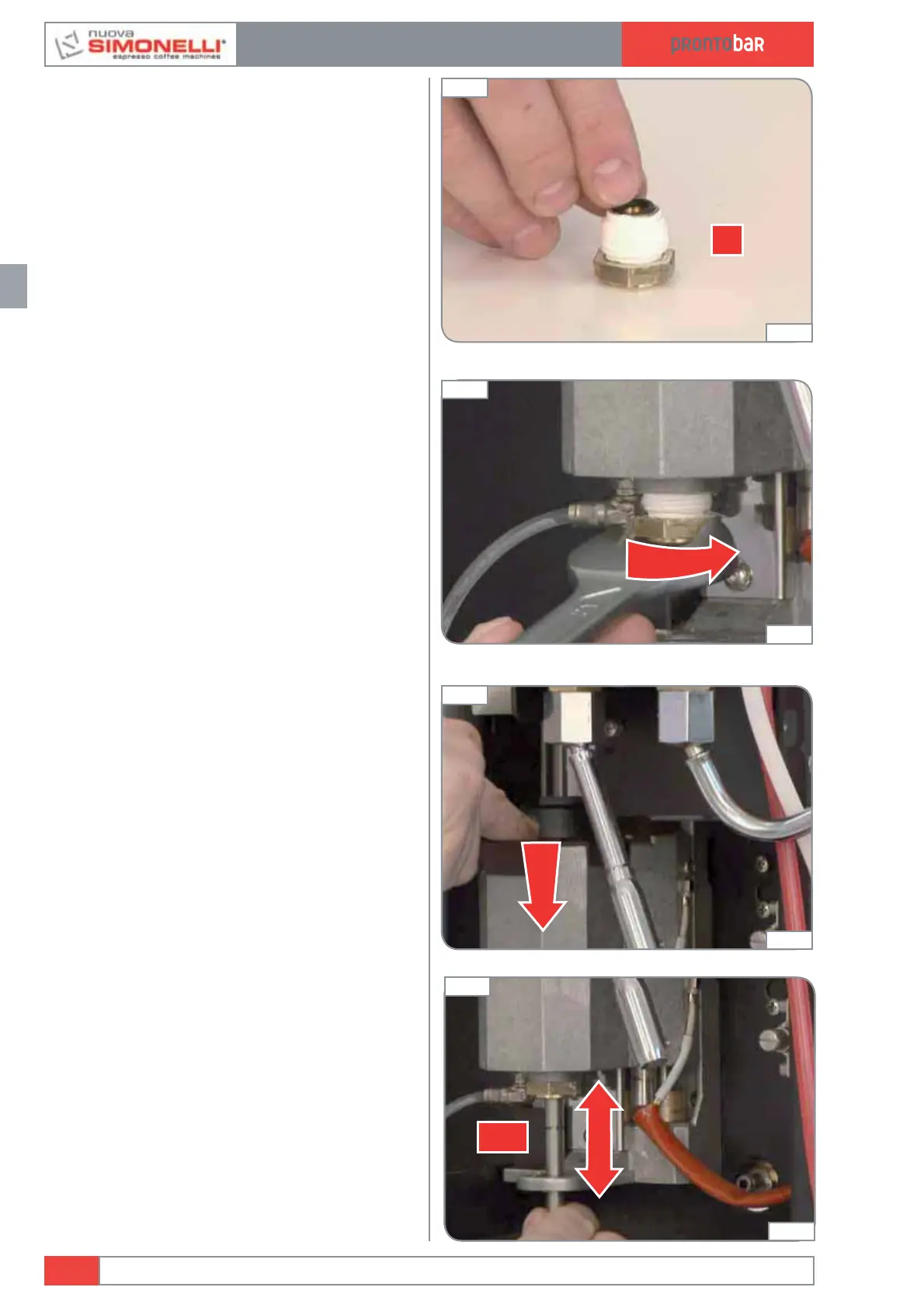

12 To reassemble, use teflon tape in the screw
thread. Add the new seal and lubricate with
NUOVA SIMONELLI silicon grease.
13 Tighten the screw, but not fully.
14 Insert the lower piston and completely tight-
en the screw.
15 Check the free movement of the piston.
Edition 02 to 02/2014
4.6
SERVICE MANUAL
15
OK!
Fig. 98
01:56
12
Fig. 95
01:42
13
Fig. 96
01:44
14
Fig. 97
01:47
