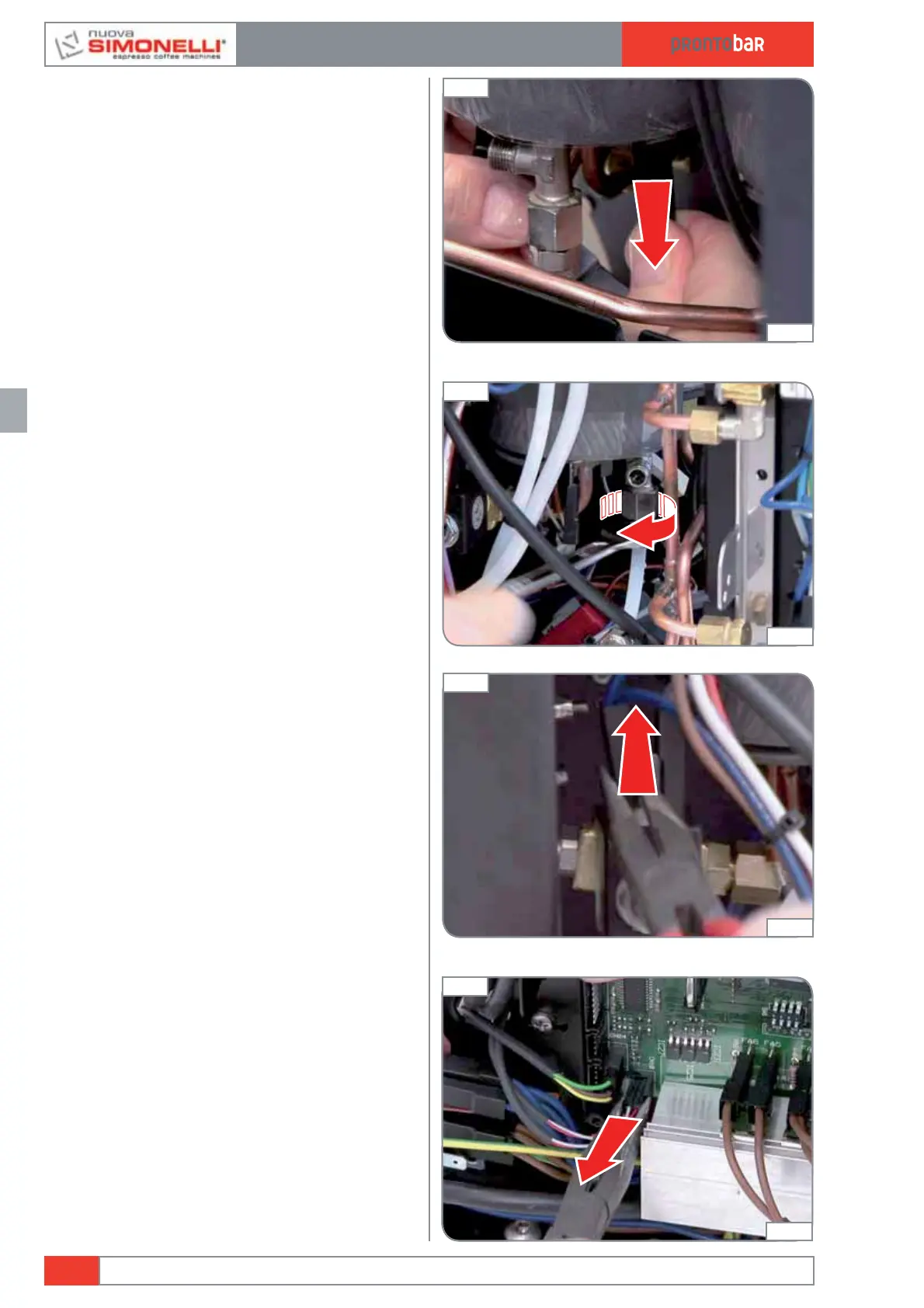

6 The teflon water inlet pipe.
7 The electrical connections for the coffee
solenoid exhaust.
8-9 Remove the ground connection, then free the
cable from the temperature probe clamps
and, after opening the left side panel, unplug
the unit.
10 The black connector is for the coffee boiler
tank, red is for the steam boiler.
The service engineer unfastens:
5 The heating element power cable.
Edition 02 to 02/2014
6.6
SERVICE MANUAL
Fig. 151
03:02
Fig. 150
02:59
Fig. 152
03:15
Fig. 149
02:56
