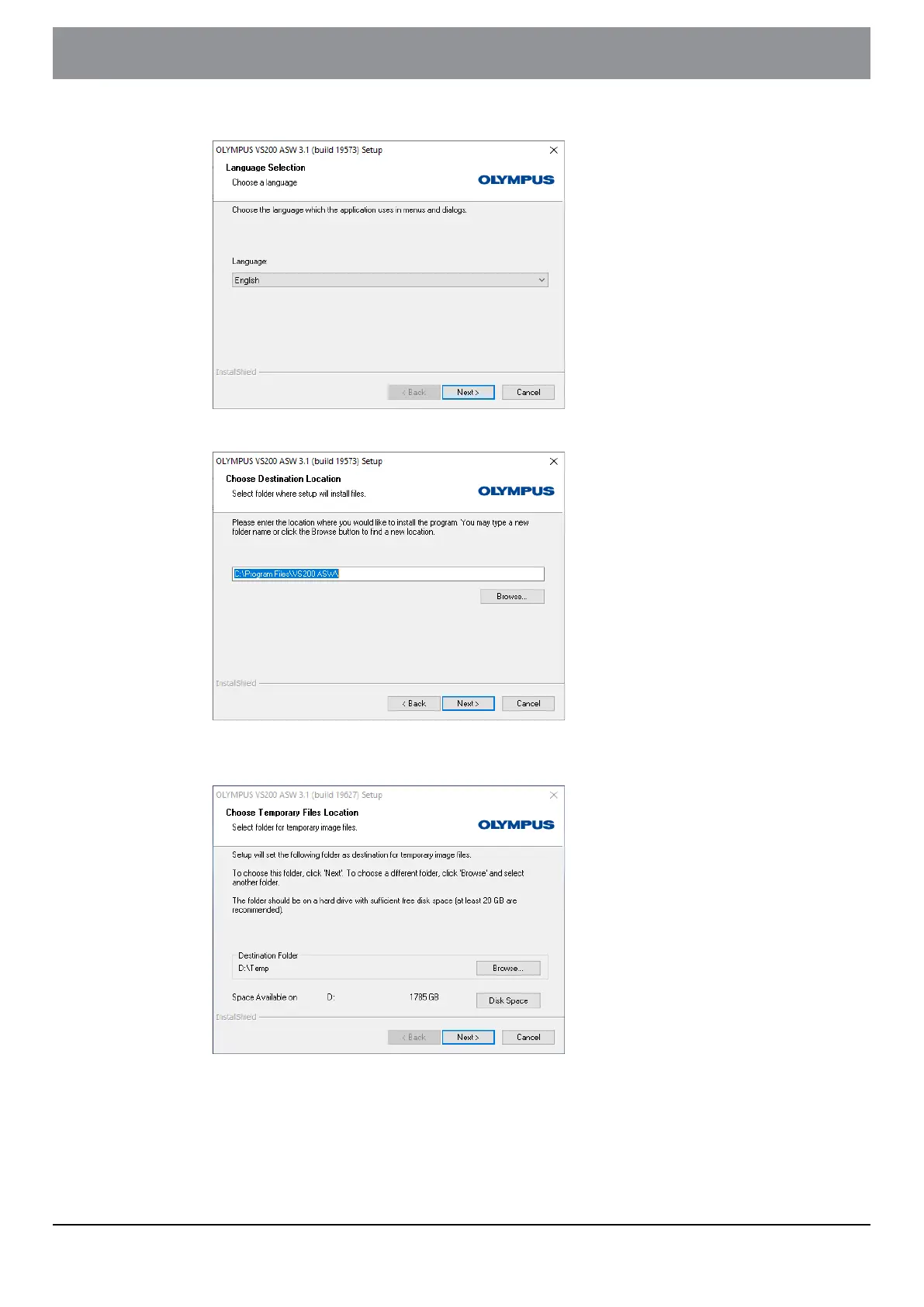

7. Change language (English is default). Proceed with [Next].

8. Change installation location (not recommended). Proceed with [Next].

9. A change of the temporary file location (D:\Temp) is not recommended.

Proceed with [Next].

- 80 -

Instructions for use

17 VS200 ASW software setup

OLYMPUS VS200 System

Default Chapter3
- Table of Contents3
1 About this Manual7
- Notes on Qualifications7
- Intended Use7
- Other Applicable Documents8
- Symbols in this Documentation8
2 Safety9
- Categories and Symbols in the Safety Instructions9
- Caution Labels9
- Caution Labels on the Product9
- General Safety Instructions10
- Safety Instructions for the Laser13
- Safety Instructions for X-Cite Turbo and X-Cite Xylis13
3 Hinweise zum Aufstellen14
- Betriebs- und Lagerbedingungen14
4 Tools and Accessories16
5 Scope of Supply17
6 System Diagram20
- Available Fluorescence Components20
7 Trays22
- Tray Description22
- VS200 Tray Types22
8 Specifications24
9 Unboxing26
- VS200 Scanner26
  - Mounting of Handles - VS200 Scanner26
- Transportation Locks for the VS200 Scanner26
  - Removing Transportation Lock from Stage27
  - Removing Transportation Lock from Transmitted Light Condenser (BX3-UCD8A)28
- VS200 Loader30
  - VS200 Trays32
  - PC and Monitor32
- VS200 Loader Transportation Locks32
10 Mounting of Components37
- Scanner37
11 Mounting Fluorescence Components40
- IX3-RFACA and IX3-RFALFE40
- Fluorescence Filter Wheels or Camera Adapter for Monochrome Camera45
- Monochrome Camera52
  - Orientation of the Monochrome Camera53
- X-Cite Adapter56
- Objective57
- LED Light Source57
- Filter Set58
12 Assembly of the Housing for Scanner62
- Left Panel62
- Right Panel64
- Back Panel65
- Top Panel66
13 Cabling70
14 Assembly of the Loader Housing72
- Top Panel72
- Back Panel72
- Front Panels73
15 Verbindung VS200 Scanner und VS200 Loader75
- Mechanical Connection VS200 Scanner and VS200 Loader75
16 PC Operating System Language77
17 VS200 ASW Software Setup78
18 VS200 Device Configuration85
- Activate the Motorized Polarizer86
- Activate the VS200 Liquid Dispenser86
- Device Settings - Objectives87
- Device Settings - Filter88
- Manual Device Configuration89
  - ORCA Monochrome Camera90
- Device Customization90
- VS200 LED Lamp Voltages97
19 How to Insert a Slide into a Tray99
- How to Insert a Tray into the VS200 Scanner99
- Insert a Tray into the VS200 Loader100
20 Calibrate VS200 Using the Olympus Calibration Slide101
- Stage Limits - Z Axis103
