6-2 Adaptive Filter
Accurax G5 AC SERVOMOTOR AND SERVO DRIVE USER'S MANUAL
Applied Functions
6-2 Adaptive Filter
Outline of Operation

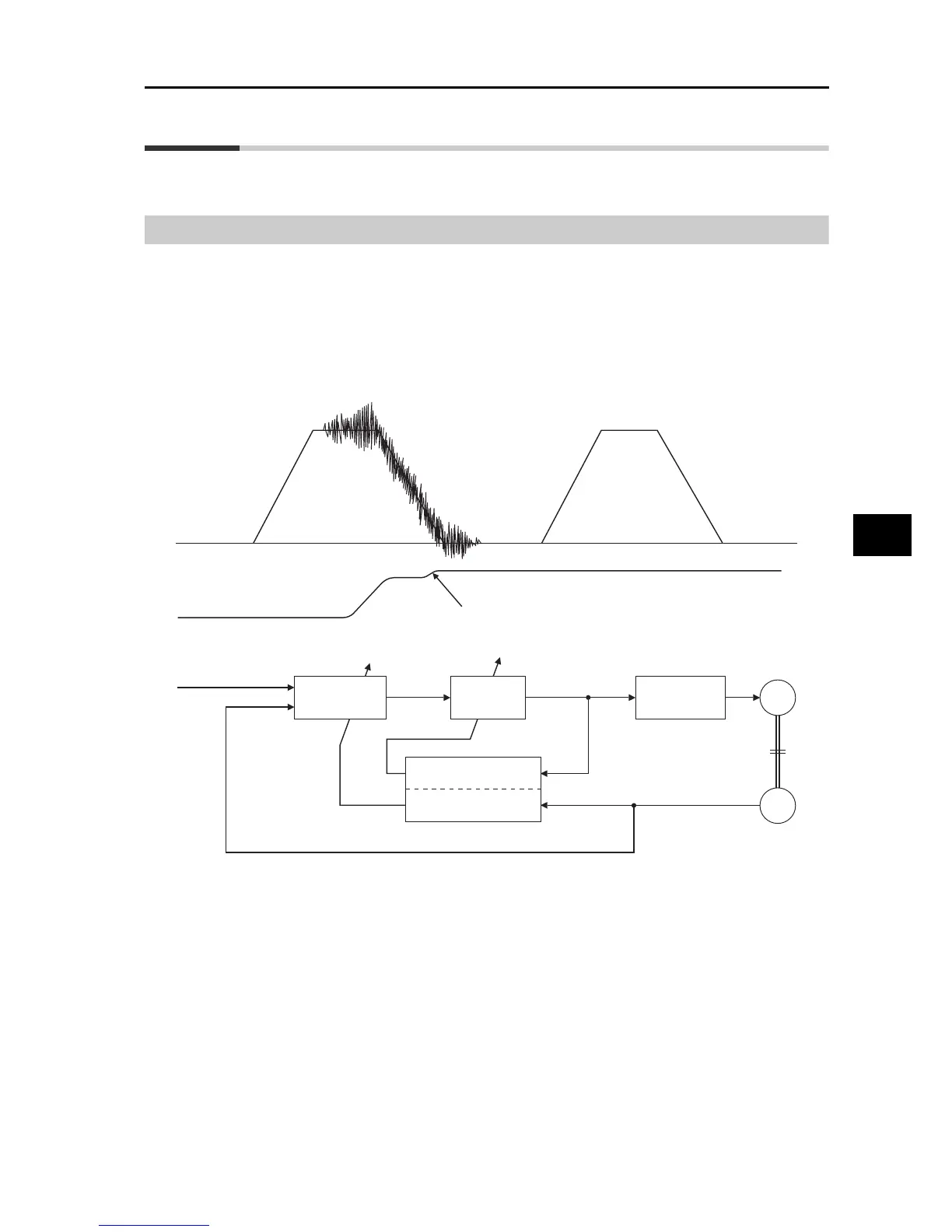

The adaptive filter reduces resonance point vibration by estimating the resonance frequency
from the vibration component that appears in the motor speed during actual operation and
automatically sets the frequency of the notch filter, which removes the resonance component
from the torque command.
The automatically set notch filter frequency is set in Notch 3 (Pn207 to Pn209) or Notch 4
(Pn210 to Pn212).
Refer to "6-3 Notch Filter" (P.6-9) for information on notch filter.
Motor speed
After vibration
suppression
Adaptive filter disabled
Adaptive filter effect
Filter frequency setting completed
Position and
speed command
Speed feedback
Position and
speed control
Realtime autotuning
Resonance frequency
estimation
Load inertia estimation
Adaptive
filter
Current loop
control
Torque command
