9-4 Setting the Mode
Accurax G5 AC SERVOMOTOR AND SERVO DRIVE USER'S MANUAL
9
Operation

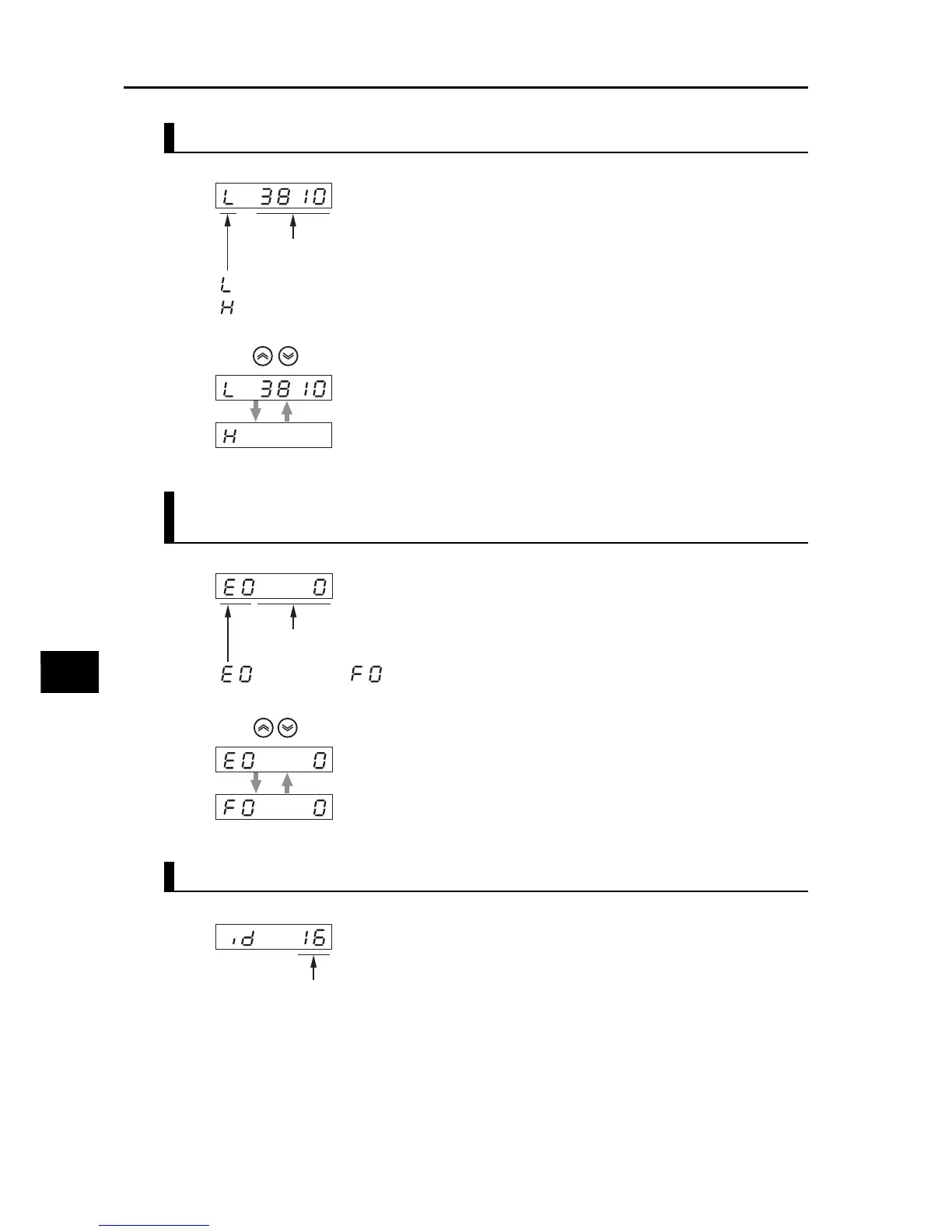

Absolute External Scale Position
Monitor for the Number of Encoder and External Scale Communications
Error
Display of Axis Numbers for Communication
...Absolute external scale position, lower (L)
...Absolute external scale position, higher (H)
Encoder data
Press to switch between Lower (L) and Higher (H).
...Encoder ...External scale
Communications error count
Press to switch between encoder and external scale.
The value set by the Axis Number (Pn531) is displayed.
