Omron ACCURAX G5 User Manual

6-54
6-16 Feed-forward Function
Accurax G5 AC SERVOMOTOR AND SERVO DRIVE USER'S MANUAL
6
Applied Functions
Operating Procedure
Speed Feed-forward Operating Method
1. Set the Speed Feed-forward Command Filter (Pn111).
Set it to 50 (0.5 ms) or so.
2. Adjust the Speed Feed-forward Amount (Pn110).
Gradually increase the value of Speed Feed-forward Amount (Pn110) and finely adjust it to
avoid overshooting during acceleration/deceleration.
If the speed feed-forward amount is set to 100%, the position error will be 0 during constant
speed operation. However, a large overshooting will occur during acceleration/deceleration.
The position error during an operation at a certain speed can be smaller based on the following
formula according to the speed feed-forward gain value.
The position error in the range of constant speed becomes smaller as the speed feed-forward
gain increases.
Precautions for Correct Use
 The operating noise may increase when the speed feed forward is enabled if the update cycle of
the position command input is longer than the amplifier control cycle, or if the pulse frequency is
not uniform. In such cases, apply the position command filter (first-order lag or FIR smoothing) or
raise the speed feed-forward filter setting.
Position error [command unit] = command speed [command unit/s] / position loop gain [1/s] ×
(100 - speed feed-forward amount [%]) / 100

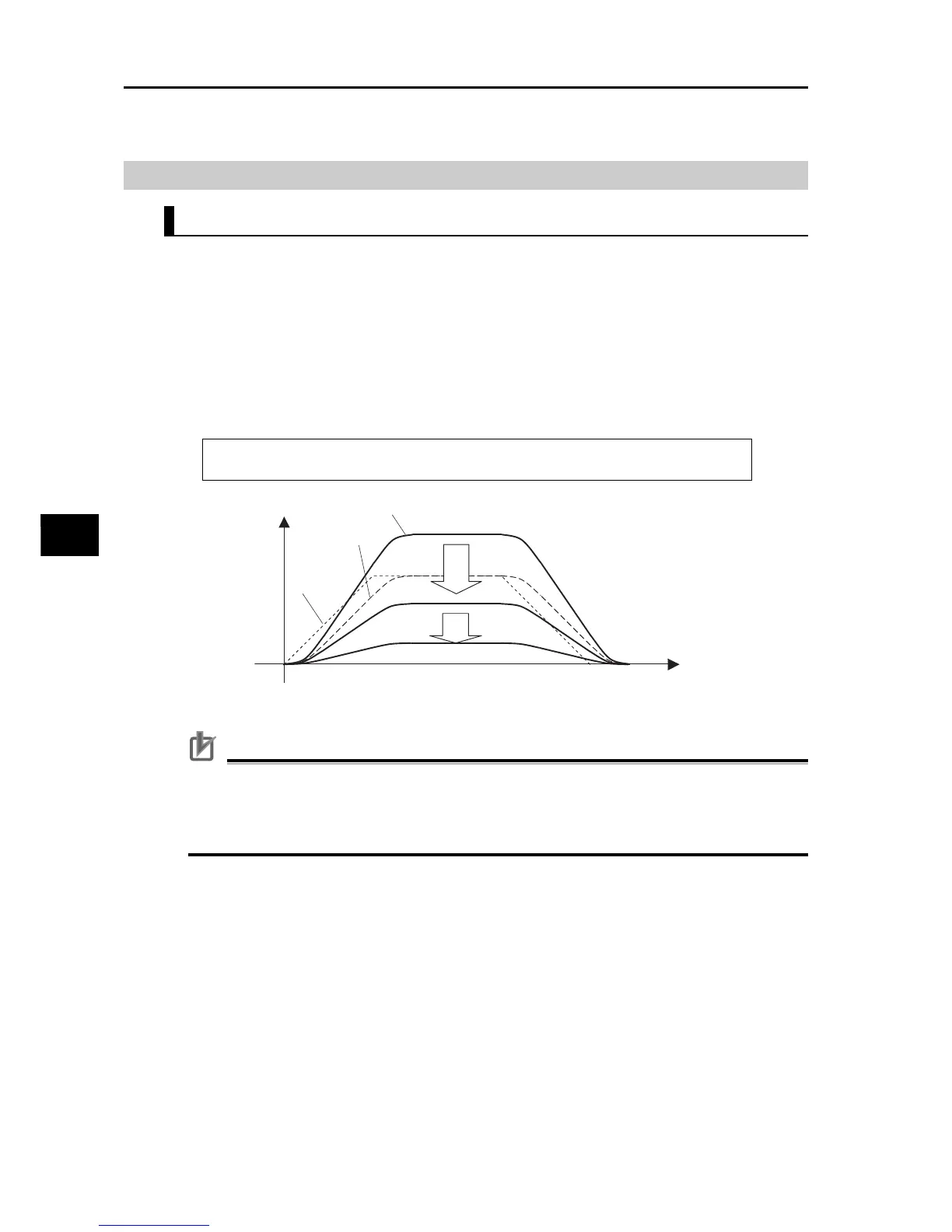

Command
speed
Motor speed
Position error
Speed FF gain
50 [%]
80 [%]
0 [%]
Time
